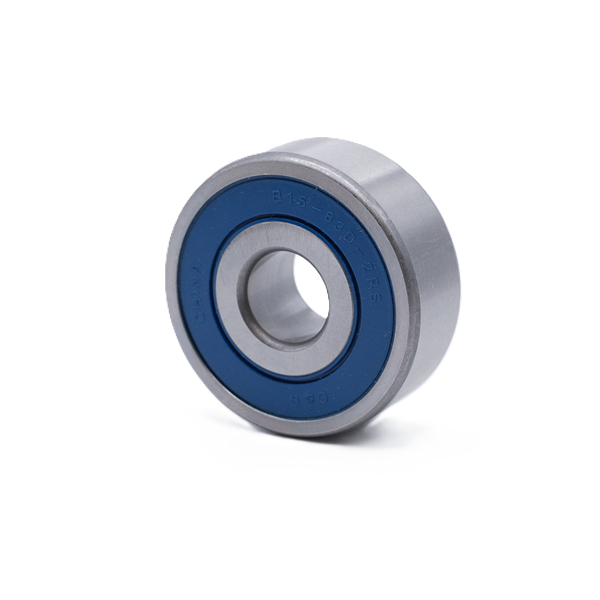

B Series - Deep Groove Ball Bearings
Material: Chrome Steel (Gcr15)
Precision: P0, P6, P5
Structure: Open / Rubber Seal (2RS) / Steel Seal (ZZ)
Cage: Steel / Nylon
Clearance: C0, C2, C3, C4
Feature: Enhanced radial load capacity
Bore Range: 10mm – 100mm
Application: Gearboxes, motors, appliances, engines, agricultural machinery
WhatsApp: +86 18663551233
Get a Quote
B Series deep groove ball bearings are versatile workhorses designed for a wide range of industrial and automotive applications. With enhanced radial load capacity compared to standard series bearings, they excel in gearboxes, electric motors, household appliances, internal combustion engines, agricultural machinery and construction equipment. The optimized internal geometry ensures efficient load distribution, reduced friction and extended service life even under challenging operating conditions. Available in open, sealed and shielded configurations, B Series bearings provide flexible solutions tailored to specific application requirements.
Technical Specifications
| Bearing No. | Bore (d) mm | Outer Dia. (D) mm | Width (B) mm | Dyn. Load Cr (kN) | Stat. Load Cor (kN) | Ref. Speed (rpm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| B6 | 6 | 22 | 7 | 2.80 | 1.10 | 26000 | 0.014 |
| B8 | 8 | 24 | 7 | 3.10 | 1.30 | 24000 | 0.017 |
| B10 | 10 | 28 | 8 | 4.00 | 1.75 | 22000 | 0.022 |
| B12 | 12 | 30 | 8 | 4.50 | 2.10 | 20000 | 0.026 |
| B15 | 15 | 35 | 9 | 5.80 | 2.80 | 18000 | 0.036 |
