Imperial Single Row-1

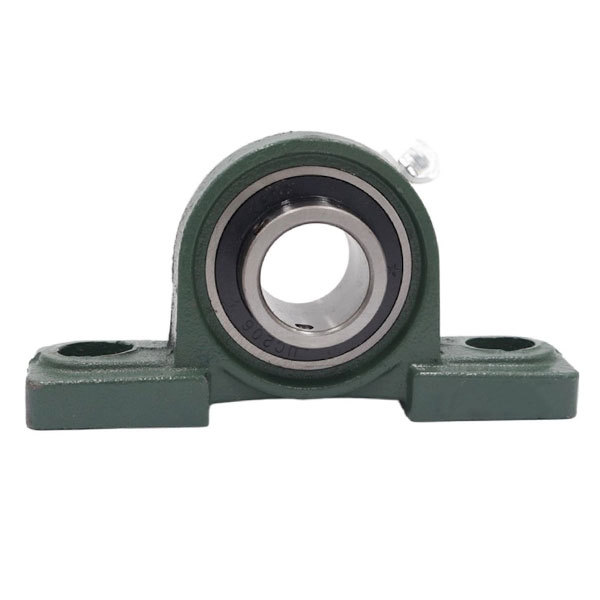

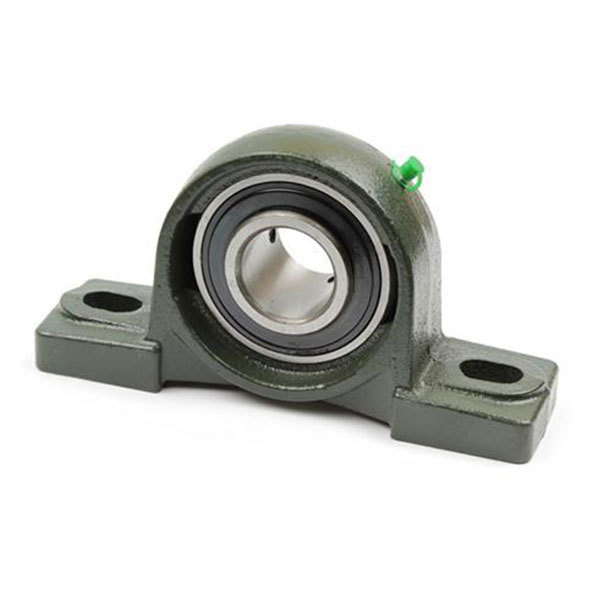

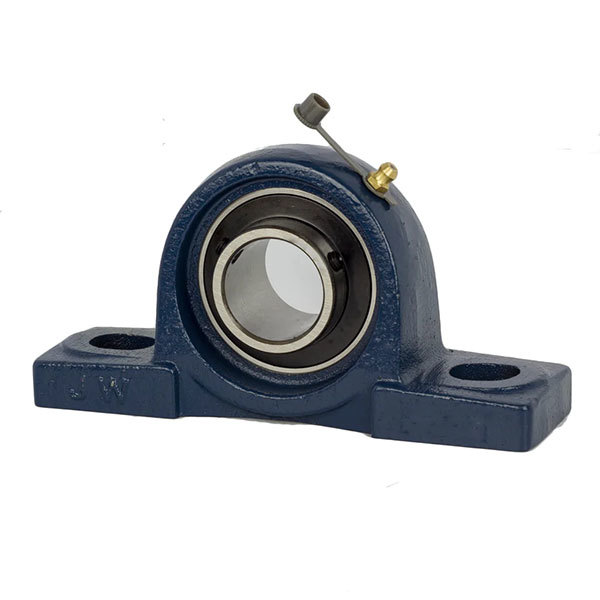

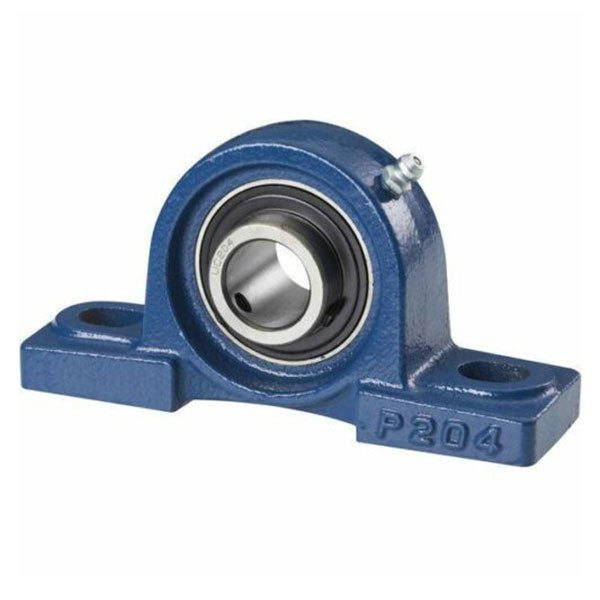

UCP series housed units feature the set screw locking (UC) bearing insert. Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount. Housing designed for ease of bearing replacement.

Bearing NumberDimensions（mm）
UCP20130.2×12×127×95×62×27.4
UCP201/YA30.2×12×127×95×62×31
UCP20230.2×15×127×95×62×27.4
UCP202/YA30.2×15×127×95×62×31
UCP20330.2×17×127×95×62×27.4
UCP203/YA30.2×17×127×95×62×31
UCP20433.3×20×127×95×65×31
UCP20536.5×25×140×105×71×34.1
UCP20642.9×30×165×121×83×38.1×1.3
UCP20747.6×35×167×127×93×42.9
UCP20849.2×40×184×137×100×49.2
UCP20954×45×190×146×106×49.2
UCP21057.2×50×206×159×114×51.6
UCP21163.5×55×219×171×126×55.6
UCP21269.8×60×241×184×138×65.1
UCP21376.2×65×265×203×151×65.1
UCP21479.4×70×266×210×157×74.6
UCP21582.6×75×275×217×163×77.8
UCP21688.9×80×292×232×175×82.6
UCP21795.2×85×310×247×187×85.7
UCP218101.6×90×327×262×200×96
UCP220115×100×380×308×225×108
UCP30545×25×175×132×85×38
UCP30650×30×180×140×95×43
UCP30756×35×210×160×106×48
UCP30860×40×220×170×116×52
UCP30967×45×245×190×129×57
UCP31075×50×275×212×143×61
UCP31180×55×310×236×154×66
UCP31285×60×30×250×165×71
UCP31390×65×340×260×176×75
UCP31495×70×360×280×187×78
UCP315100×75×380×290×198×82
UCP316106×80×400×300×210×86
UCP317112×85×420×320×220×96
UCP318118×90×430×330×235×96
UCP319125×90×470×360×250×103
UCP320140×100×490×380×275×108
UCP321140×105×490×380×280×112
UCP322150×110×520×400×300×117
UCP324160×120×570×450×320×126
UCP326180×130×600×480×355×135
UCP328200×140×620×500×390×145
NAP20130.2×12×125×96×57×43.5
NAP20230.2×15×125×96×57×43.5
NAP20330.2×17×125×96×57×43.5
NAP20433.3×20×127×96×63.8×43.5
NAP20536.5×25×140×105×69.5×44.3
NAP20642.6×30×160×121×82×48.3
NAP20747.6×35×167×126×92×51.1
NAP20849.2×40×180×136×98×56.3
NAP20954×45×190×146×107×56.3
NAP21057.2×50×204×159×113×62.7
NAP21163.5×55×219×172×125×71.4
NAP21269.9×60×238×186×137×77.8
NAP21376.2×65×262×203×148.2×85.7
NAP21479.4×70×266×210×155×85.7
NAP21582.6×75×275×217×163×92.1
NAP21688.9×80×292×232×78×25
UCP201-830.2×12.7×125×96×57×27.4
UCP202-1030.2×15.875×125×96×57×27.4
UCP202-930.2×14.288×125×96×57×27.4
UCP203-1130.2×17.462×125×96×57×27.4
UCP204-1233.3×19.05×127×96×63.8×31
UCP205-1436.5×22.225×140×105×69.5×34.1
UCP205-1536.5×23.812×140×105×69.5×34.1
UCP205-1636.5×25.4×140×105×69.5×34.1
UCP206-1634.1×52×14.3×140×105×36.5
UCP206-1842.6×28.575×60×121×82×38.1
UCP206-1942.6×30.162×160×121×82×38.1
UCP206-2042.6×31.75×160×121×82×38.1
UCP207-2047.6×31.75×167×126×92×42.9
UCP207-2147.6×33.338×167×126×92×42.9
UCP207-2247.6×34.952×167×126×92×42.9
UCP207-2347.6×36.512×167×126×92×42.9
UCP208-2449.2×38.1×180×136×98×49.2
UCP208-2549.2×39.688×180×136×98×49.2
UCP209-2654×41.275×190×146×107×49.2
UCP209-2754×42.862×190×146×107×49.2
UCP209-2854×44.45×190×146×107×49.2
UCP210-3057.2×47.625×204×159×113×51.6
UCP210-3157.2×49.212×204×159×113×51.6
UCP210-3257.2×50.8×204×159×113×51.6
UCP211-3263.5×50.8×219×172×125×55.6
UCP211-3463.5×53.975×219×172×125×55.6
UCP211-3563.5×55.562×219×172×125×55.6
UCP212-3669.9×57.15×238×186×137×65.1
UCP212-3769.9×58.738×238×186×137×65.1
UCP212-3869.9×60.325×238×186×137×65.1
UCP212-3969.9×61.912×238×186×137×65.1
UCP213-4076.2×63.5×262×203×148.2×65.1
UCP213-4376.2×68.262×262×203×148.2×65.1
UCP214-4479.4×69.85×266×210×155×74.6
UCP215-4482.6×69.85×275×217×163×77.8
UCP215-4782.6×74.612×275×217×163×77.8
UCP215-4882.6×76.2×275×217×163×77.8
UCP216-5288.9×82.55×292×232×175×82.6
UCP217-5295.2×82.55×310×247×186×85.7
UCP218-56101.6×88.9×327×262×200×96
NAP201-830.2×12.7×125×96×57×43.5
NAP202-1030.2×15.875×125×96×57×43.5
NAP202-930.2×14.288×125×96×57×43.5
NAP203-1130.2×17.462×125×96×57×43.5
NAP204-1233.3×19.05×127×96×63.8×43.5
NAP205-1436.5×22.225×140×105×69.5×44.3
NAP205-1536.5×23.812×140×105×69.5×44.3
NAP205-1636.5×25.4×140×105×69.5×44.3
NAP206-1842.6×28.575×160×121×82×48.3
NAP206-1942.6×30.162×160×121×82×48.3
NAP206-2042.6×31.75×160×121×82×48.3
NAP207-2047.6×31.75×167×126×92×51.1
NAP207-2147.6×33.338×167×126×92×51.1
NAP207-2247.6×34.952×167×126×92×51.1
NAP207-2347.6×36.512×167×126×92×51.1
NAP208-2449.2×38.1×180×136×98×56.3
NAP208-2549.2×39.688×180×136×98×56.3
NAP209-2654×41.275×190×146×107×56.3
NAP209-2754×42.862×190×146×107×56.36
NAP209-2854×44.45×190×146×107×56.3
NAP210-3057.2×47.625×204×159×113×62.7
NAP210-3157.2×49.212×204×159×113×62.7
NAP210-3257.2×50.8×204×159×113×62.7
NAP211-3263.5×50.8×219×172×125×71.4
NAP211-3463.58×53.975×219×172×125×71.4
NAP211-3563.5×55.562×219×172×125×71.4
NAP212-3669.9×57.15×238×186×137×77.8
NAP212-3769.9×58.738×238×186×137×77.8
NAP212-3869.9×60.325×238×186×137×77.8
NAP212-3969.9×61.912×238×186×137×77.8
NAP213-4076.2×63.5×262×203×148.2×85.7
NAP213-4376.2×68.262×262×203×148.2×85.7
NAP214-4479.4×69.85×266×210×155×85.7
NAP215-4482.6×69.85×275×217×163×92.1
NAP215-4782.6×74.612×275×217×163×92.1
NAP215-4882.6×76.2×275×275×217×163×92.1
