Imperial Single Row-1

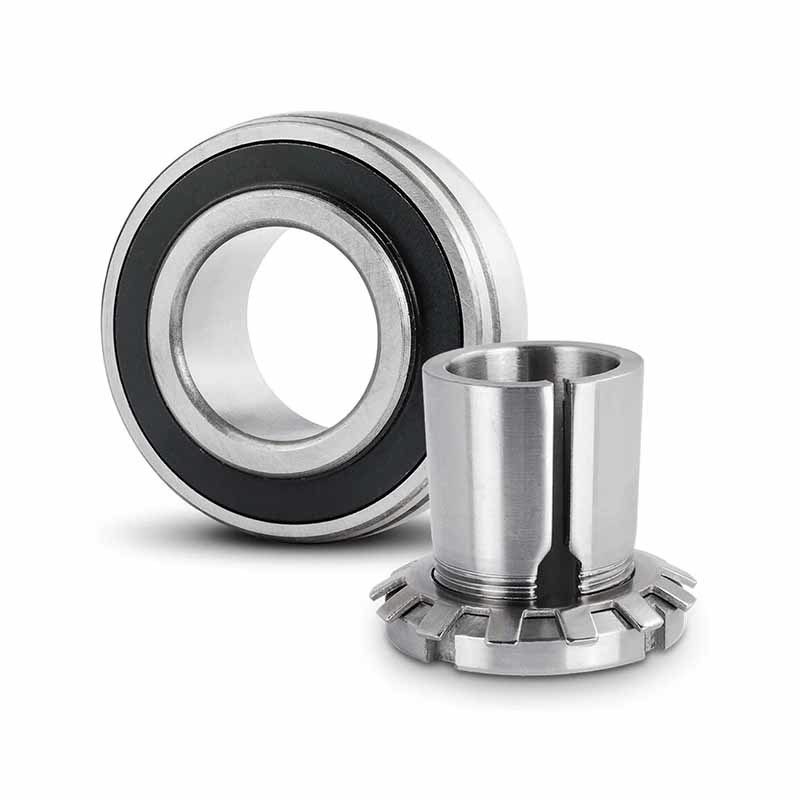

The UK wide inner ring ball bearing uses an adapter sleeve locking mechanism and is suggested for industrial applications where normal loads are encountered. Bearing prelubricated and ready for immediate installation. The wide inner ring provides effective shaft support for a broad range of industrial applications. An external steel flinger provides additional protection from contamination. The UK series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UK series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment.

Bearing Number	Dimensions（mm）
UK205	25×52×26×17
UK206	30×62×28×19
UK207	35×72×30×20
UK208	40×80×31×21
UK209	45×85×33×22
UK210	50×90×35×24
UK211	55×100×39×25
UK212	60×110×41×27
UK213	65×120×41.5×27
UK215	75×130×44×30
UK216	80×140×48×33
UK217	85×150×50×36
UK218	90×160×51×37
UK305	25×62×27×21
UK306	30×72×30×23
UK307	35×80×34×25
UK308	40×90×36×27
UK309	45×100×39×30
UK310	50×110×42×32
UK311	55×120×44×34
UK312	60×130×48×36
UK313	65×140×49×38
UK314	70×170×52×39
UK315	75×160×56×42
UK316	80×170×58×44
UK317	85×180×61×46
UK318	90×190×66×48
UK319	95×200×67×50
UK320	100×215×74×54
UK322	110×240×82×60
UK324	120×260×86×64
UK326	130×280×90×68
UK328	140×300×95×73
UK205+H2305	20×52×35×17
UK206+H2306	25×62×38×19
UK207+H2307	30×72×43×20
UK208+H2308	35×80×46×21
UK209+H2309	40×85×50×22
UK210+H2310	45×90×55×24
UK211+H2311	50×100×59×25
UK212+H2312	55×110×62×27
UK213+H2313	60×120×65×27
UK215+H2315	65×130×73×30
UK216+H2316	70×140×78×33
UK217+H2317	75×150×82×36
UK218+H2318	80×160×86×37
UK305+H2305	20×62×35×21
UK306+H2306	25×72×38×23
UK307+H2307	30×80×43×25
UK308+H2308	35×90×46×27
UK309+H2309	40×100×50×30
UK310+H2310	45×110×55×32
UK311+H2311	50×120×59×34
UK312+H2312	55×130×62×36
UK313+H2313	60×140×65×33
UK315+H2315	65×160×73×42
UK316+H2316	70×170×78×44
UK317+H2317	75×180×82×46
UK318+H2318	80×190×86×48
UK319+H2319	85×200×90×50
UK320+H2320	90×215×97×54
UK322+H2322	100×240×105×60
UK324+H2324	110×260×112×64
UK326+H2326	115×280×121×68
UK328+H2328	125×300×131×73
UK204/YA	25×52×19
UK205/YA	30×62×21
UK206/YA	35×72×22
UK207/YA	40×80×23
