Imperial Single Row-1

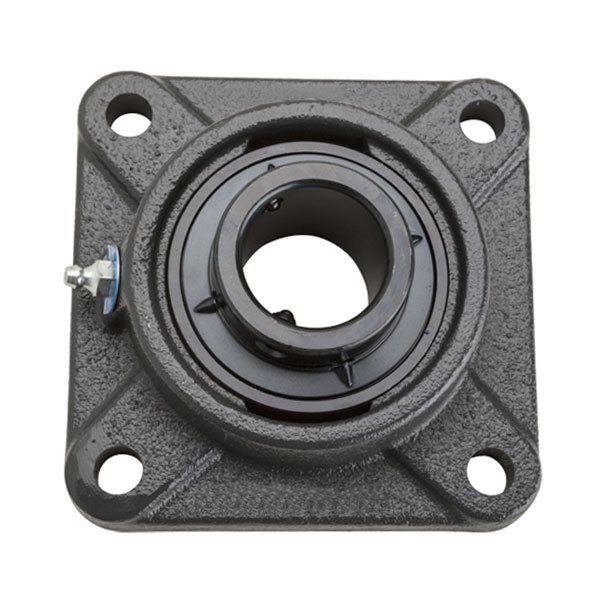

Square flanged ball bearing unit with set screw locking, cast iron. They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Bearing Number	d	D	B
Bearing Number	(mm)	(mm)	(mm)
UCFU203	17	27.4	78
UCFU204	20	31	88
UCFU205	25	34.1	97
UCFU206	30	38.1	110
UCFU207	35	42.9	119
UCFU208	40	49.2	132
UCFU209	45	49.2	139
UCFU210	50	51.6	145
UCFU211	55	55.6	164
UCFU212	60	65.1	177
UCFU213	65	65.1	189
UCFU214	70	74.6	195
UCFU215	75	77.8	202
UCFU216	80	82.6	213
UCFU217	85	85.7	222
UCFU218	90	96	240
UCFU220	100	108	270
UCFU305	25	38	110
UCFU306	30	43	125
UCFU307	35	48	135
UCFU308	40	52	150
UCFU309	45	57	160
UCFU310	50	61	175
UCFU311	55	66	185
UCFU312	60	71	195
UCFU313	65	75	208
UCFU314	70	78	226
UCFU315	75	82	236
UCFU316	80	86	250
UCFU317	85	96	260
UCFU318	90	96	280
UCFU319	95	103	290
UCFU320	100	108	310
UCFU321	105	112	310
UCFU322	110	117	340
UCFU324	120	126	370
UCFU326	130	135	410
UCFU328	140	145	450
UCFU212-38	60.325	175	143
UCFU212-37	58.738	175	143
UCFU212-36	57.15	175	143
UCFU211-35	55.562	162	130
UCFU211-34	53.975	162	130
UCFU211-32	50.8	162	130
UCFU210-32	50.8	143	111
UCFU210-31	49.212	143	111
UCFU210-30	47.625	143	111
UCFU209-28	44.45	137	105
UCFU209-27	42.862	137	105
UCFU209-26	41.275	137	105
UCFU208-25	39.688	130	102
UCFU208-24	38.1	130	102
UCFU207-23	36.512	117	92
UCFU207-22	34.952	117	92
UCFU207-21	33.338	117	92
UCFU207-20	31.75	117	92
UCFU206-20	31.75	108	83
UCFU206-19	30.162	108	83
UCFU206-18	28.575	108	83
UCFU205-16	25.4	95	70
UCFU205-15	23.812	95	70
UCFU205-14	22.225	95	70
UCFU204-12	19.05	86	64
UCFU203-11	17.462	86	64
UCFU203*	17	76	54
UCFU218-56	88.9	235	187
UCFU217-52	82.55	220	175
UCFU216-52	82.55	208	165
UCFU215-48	76.2	200	159
UCFU215-47	74.612	200	159
UCFU215-44	69.85	200	159
UCFU214-44	69.85	193	152
UCFU213-43	68.262	187	149
UCFU213-40	63.5	187	149
UCFU212-39	61.912	175	143
UCFU202-10	15.875	86	64
UCFU202-9	14.288	86	64
UCFU202*	15	76	54
UCFU202	15	86	64
UCFU201-8	12.7	86	64
UCFU201*	12	76	54
UCFU201	12	86	64
