Imperial Single Row-1

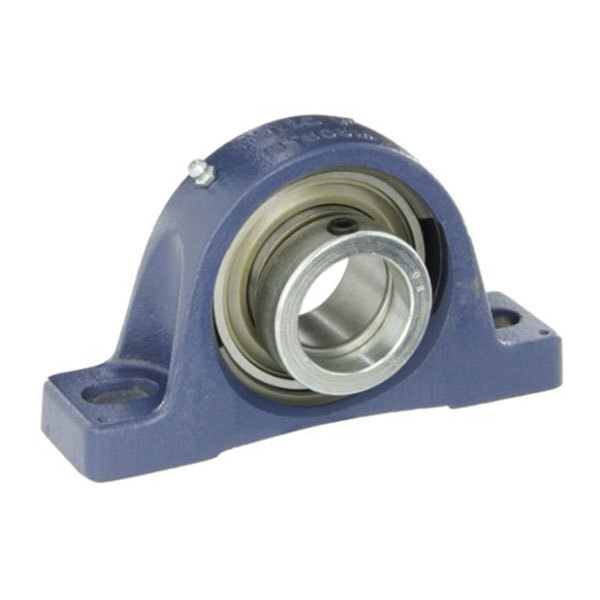

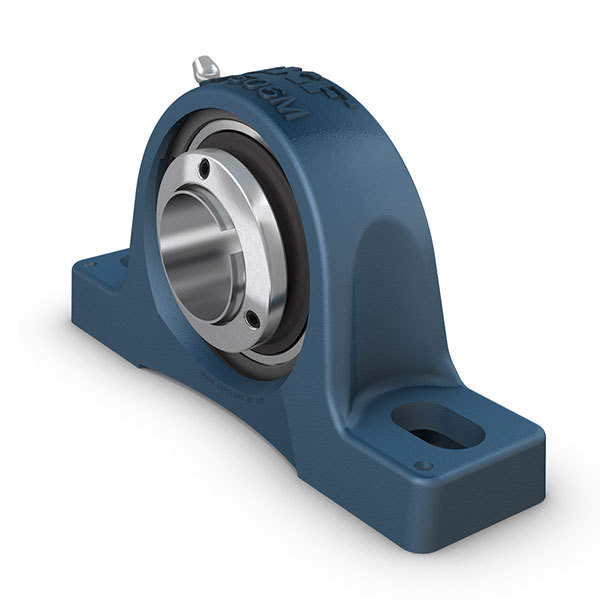

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

SKF Number	d[mm]	A[mm]	H[mm]	H2[mm]	L[mm]	C[kN]	C0[kN]	Tmax.[°C]	Included products
SKF Number	d[mm]	A[mm]	H[mm]	H2[mm]	L[mm]	C[kN]	C0[kN]	Tmax.[°C]	Bearing
SY 3/4 TF/VA201	19.05	32	33.3	64.5	127	12.7	6.55	250	YAR 204-012-2F/VA201
SY 3/4 TF/VA228	19.05	32	33.3	64.5	127	12.7	6.55	350	YAR 204-012-2F/VA228
SY 20 TF/VA201	20	32	33.3	64.5	127	12.7	6.55	250	YAR 204-2F/VA201
SY 20 TF/VA228	20	32	33.3	64.5	127	12.7	6.55	350	YAR 204-2F/VA228
SY 25 TF/VA201	25	36	36.5	70	130	14	7.8	250	YAR 205-2F/VA201
SY 25 TF/VA228	25	36	36.5	70	130	14	7.8	350	YAR 205-2F/VA228
SY 1. TF/VA201	25.4	36	36.5	70	130	14	7.8	250	YAR 205-100-2F/VA201
SY 1. TF/VA228	25.4	36	36.5	70	130	14	7.8	350	YAR 205-100-2F/VA228
SY 30 TF/VA201	30	40	42.9	82	152	19.5	11.2	250	YAR 206-2F/VA201
SY 30 TF/VA228	30	40	42.9	82	152	19.5	11.2	350	YAR 206-2F/VA228
SY 1.3/16 TF/VA201	30.163	40	42.9	82	152	19.5	11.2	250	YAR 206-103-2F/VA201
SY 1.3/16 TF/VA228	30.163	40	42.9	82	152	19.5	11.2	350	YAR 206-103-2F/VA228
SY 1.1/4 TF/VA201	31.75	45	47.6	93	160	25.5	15.3	250	YAR 207-104-2F/VA201
SY 1.1/4 TF/VA228	31.75	45	47.6	93	160	25.5	15.3	350	YAR 207-104-2F/VA228
SY 1.3/8 TF/VA201	34.925	45	47.6	93	160	25.5	15.3	250	YAR 207-106-2F/VA201
SY 1.3/8 TF/VA228	34.925	45	47.6	93	160	25.5	15.3	350	YAR 207-106-2F/VA228
SY 35 TF/VA201	35	45	47.6	93	160	25.5	15.3	250	YAR 207-2F/VA201
SY 35 TF/VA228	35	45	47.6	93	160	25.5	15.3	350	YAR 207-2F/VA228
SY 1.7/16 TF/VA201	36.512	45	47.6	93	160	25.5	15.3	250	YAR 207-107-2F/VA201
SY 1.7/16 TF/VA228	36.512	45	47.6	93	160	25.5	15.3	350	YAR 207-107-2F/VA228
SY 1.1/2 TF/VA201	38.1	48	49.2	99	175	30.7	19	250	YAR 208-108-2F/VA201
SY 1.1/2 TF/VA228	38.1	48	49.2	99	175	30.7	19	350	YAR 208-108-2F/VA228
SY 40 TF/VA201	40	48	49.2	99	175	30.7	19	250	YAR 208-2F/VA201
SY 40 TF/VA228	40	48	49.2	99	175	30.7	19	350	YAR 208-2F/VA228
SY 1.11/16 TF/VA201	42.862	48	54	107	187	33.2	21.6	250	YAR 209-111-2F/VA201
SY 1.11/16 TF/VA228	42.862	48	54	107	187	33.2	21.6	350	YAR 209-111-2F/VA228
SY 1.3/4 TF/VA201	44.45	48	54	107	187	33.2	21.6	250	YAR 209-112-2F/VA201
SY 1.3/4 TF/VA228	44.45	48	54	107	187	33.2	21.6	350	YAR 209-112-2F/VA228
SY 45 TF/VA201	45	48	54	107	187	33.2	21.6	250	YAR 209-2F/VA201
SY 45 TF/VA228	45	48	54	107	187	33.2	21.6	350	YAR 209-2F/VA228
SY 1.15/16 TF/VA201	49.213	54	57.2	114	203	35.1	23.2	250	YAR 210-115-2F/VA201
SY 1.15/16 TF/VA228	49.213	54	57.2	114	203	35.1	23.2	350	YAR 210-115-2F/VA228
SY 50 TF/VA201	50	54	57.2	114	203	35.1	23.2	250	YAR 210-2F/VA201
SY 50 TF/VA228	50	54	57.2	114	203	35.1	23.2	350	YAR 210-2F/VA228
SY 2. TF/VA201	50.8	60	63.5	126	219	43.6	29	250	YAR 211-200-2F/VA201
SY 2. TF/VA228	50.8	60	63.5	126	219	43.6	29	350	YAR 211-200-2F/VA228
SY 55 TF/VA201	55	60	63.5	126	219	43.6	29	250	YAR 211-2F/VA201
SY 55 TF/VA228	55	60	63.5	126	219	43.6	29	350	YAR 211-2F/VA228
SY 2.3/16 TF/VA201	55.562	60	63.5	126	219	43.6	29	250	YAR 211-203-2F/VA201
SY 2.3/16 TF/VA228	55.562	60	63.5	126	219	43.6	29	350	YAR 211-203-2F/VA228
SY 60 TF/VA201	60	60	69.9	137.5	240	52.7	36	250	YAR 212-2F/VA201
SY 60 TF/VA228	60	60	69.9	137.5	240	52.7	36	350	YAR 212-2F/VA228
SY 2.7/16 TF/VA201	61.913	60	69.9	137.5	240	52.7	36	250	YAR 212-207-2F/VA201
SY 2.7/16 TF/VA228	61.913	60	69.9	137.5	240	52.7	36	350	YAR 212-207-2F/VA228
