Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

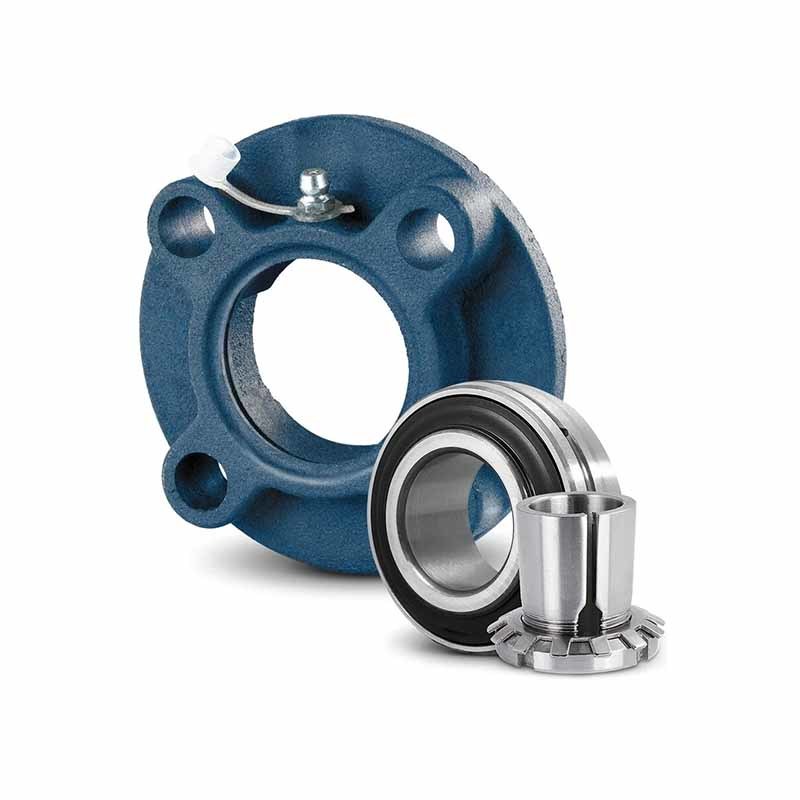

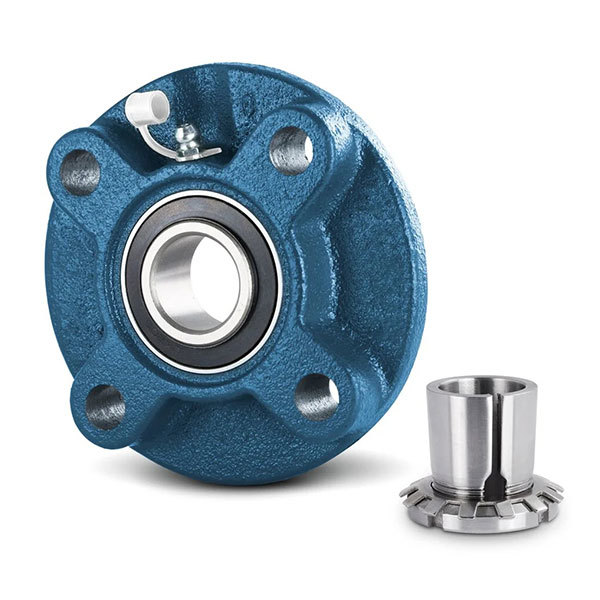

UKFC+H flanged ball bearing units consisting of an insert bearing mounted in a composite or cast metal housing that can be bolted to a machine wall or frame. In addition to being part of a unit, some flanged housings for insert bearings are available as separate components. The assortment includes ball bearing units compliant with several industrial standards, meeting many requirements regarding bolt patterns and mechanisms for locking onto the shaft.
| Bearing Number | d | D | B |
| (mm) | (mm) | (mm) | |
| UKFC205+H2305 | 20 | 35 | 115 |
| UKFC206+H2306 | 25 | 38 | 125 |
| UKFC207+H2307 | 30 | 43 | 135 |
| UKFC208+H2308 | 35 | 46 | 145 |
| UKFC209+H2309 | 40 | 50 | 160 |
| UKFC210+H2310 | 45 | 55 | 165 |
| UKFC211+H2311 | 50 | 59 | 185 |
| UKFC212+H2312 | 55 | 62 | 195 |
| UKFC213+H2313 | 60 | 65 | 205 |
| UKFC215+H2315 | 65 | 73 | 220 |
| UKFC216+H2316 | 70 | 78 | 240 |
| UKFC217+H2317 | 75 | 82 | 250 |
| UKFC218+H2318 | 80 | 86 | 265 |
