Imperial Single Row-1

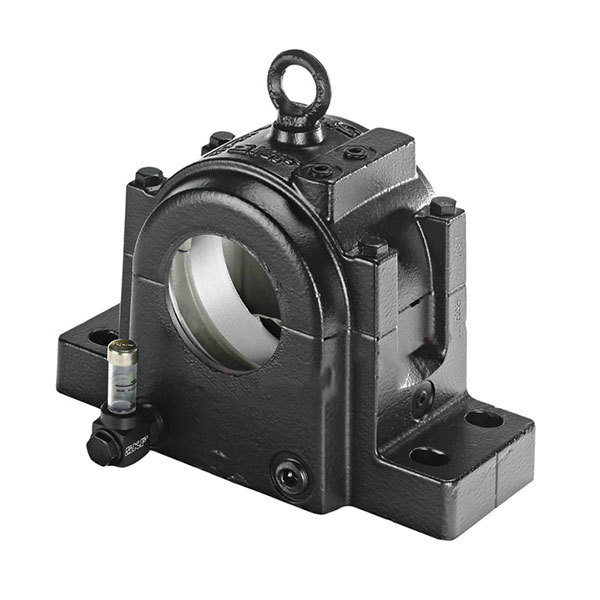

SONL plummer (pillow) block housings are specially designed for oil lubrication. They can accommodate high temperatures and bearings operating at high speeds. They have a strong, stiff design and are characterized by a number of built-in features that maximize the effects of the lubricant and extend bearing service life. SONL housings can be found in applications ranging from fans and flywheels to paper machines and emergency power generators.



Designation of appropriate componentsShaft diameterPrincipal housing dimensions
  WidthHeightCentre heightLength
 da[mm]A[mm]H[mm]H1[mm]L[mm]
SONL 217-517 + 2217 K + HA 31774.613163230125330
SONL 217-517 + 22217 K + HA 31774.613163230125330
SONL 217-517 + C 2217 K + HA 317 E74.613163230125330
SONL 217-517 + 2217 K + H 31775163230125330
SONL 217-517 + 22217 K + H 31775163230125330
SONL 217-517 + C 2217 K + H 317 E75163230125330
SONL 218-518 + 2218 K + H 31880170245135360
SONL 218-518 + 22218 K + H 31880170245135360
SONL 218-518 + C 2218 K + H 318 E80170245135360
SONL 218-518 + 2218 K + HA 31880.963170245135360
SONL 218-518 + 22218 K + HA 31880.963170245135360
SONL 218-518 + C 2218 K + HA 318 E80.963170245135360
SONL 220-520 + 2220 K + HA 32087.313186270145400
SONL 220-520 + 22220 K + HA 32087.313186270145400
SONL 220-520 + C 2220 K + HA 320 E87.313186270145400
SONL 220-520 + 2220 K + H 32090186270145400
SONL 220-520 + 22220 K + H 32090186270145400
SONL 220-520 + C 2220 K + H 320 E90186270145400
SONL 222-522 + 2222 K + H 322100213290160420
SONL 222-522 + 22222 K + H 322100213290160420
SONL 222-522 + C 2222 K + H 322 E100213290160420
SONL 222-522 + 2222 K + SNW 22X3 15/16100.013213290160420
SONL 222-522 + 22222 K + SNW 22X3 15/16100.013213290160420
SONL 222-522 + C 2222 K + HA 322 E100.013213290160420
SONL 224-524 + 22224 K + HA 3124106.363245315170420
SONL 224-524 + C 2224 K + HA 3124 L106.363245315170420
SONL 224-524 + 22224 K + H 3124110245315170420
SONL 224-524 + C 2224 K + H 3124 L110245315170420
SONL 226-526 + 22226 K + HA 3126112.713255335180450
SONL 226-526 + C 2226 K + HA 3126 L112.713255335180450
SONL 226-526 + 22226 K + H 3126115255335180450
SONL 226-526 + C 2226 K + H 3126 L115255335180450
SONL 228-528 + 22228 K + H 3128125260355190500
SONL 228-528 + C 2228 K + H 3128 L125260355190500
SONL 228-528 + 22228 K + HA 3128125.413260355190500
SONL 228-528 + C 2228 K + HA 3128 L125.413260355190500
SONL 230-530 + 22230 K + HA 3130131.763260375200540
SONL 230-530 + C 2230 K + HA 3130 L131.763260375200540
SONL 230-530 + 22230 K + H 3130135260375200540
SONL 230-530 + C 2230 K + H 3130 L135260375200540
SONL 232-532 + 22232 K + HA 3132138.113278406215560
SONL 232-532 + 22232 K + H 3132140278406215560
SONL 234-534 + 22234 CCK/W33 + H 3134150310440235610
SONL 234-534 + C 2234 K + H 3134 L150310440235610
SONL 234-534 + 22234 CCK/W33 + HA 3134150.813310440235610
SONL 234-534 + C 2234 K + HA 3134 L150.813310440235610
SONL 236-536 + 22236 CCK/W33 + H 3136160320455245650
SONL 236-536 + 22236 CCK/W33 + HA 3136163.513320455245650
SONL 238-538 + 22238 CCK/W33 + H 3138170330480260720
SONL 238-538 + C 2238 K + H 3138170330480260720
SONL 238-538 + 22238 CCK/W33 + HA 3138176.213330480260720
SONL 238-538 + C 2238 K + HA 3138176.213330480260720
SONL 240-540 + 22240 CCK/W33 + H 3140180338510275730
SONL 240-540 + 22240 CCK/W33 + HA 3140182.563338510275730
SONL 244-544 + 22244 CCK/W33 + OH 3144 H200358565305820
SONL 244-544 + C 2244 K + OH 3144 H200358565305820
SONL 248-548 + 22248 CCK/W33 + OH 3148 H220368625340900
