SAF And SAW Series (Inch Size)
Category:
Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

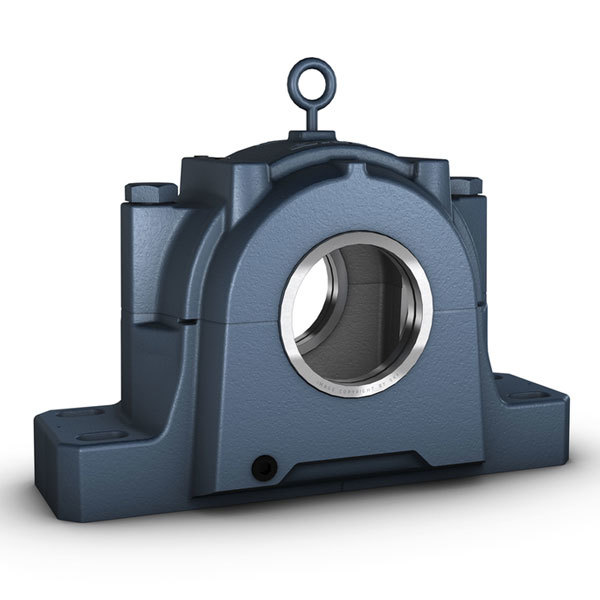

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.
| Designation | Shaft diameter | Housing dimensions | Included products | ||||
| Width across seals | Height | Centre height | Length | Housing | Bearing | ||
| da[mm] | A2[mm] | H[mm] | H1[mm] | L[mm] | |||
| SAF 23048 KAT X 8.15/16 | 227.013 | 390.525 | 422.275 | 209.55 | 749.3 | SAF 048 KA | 23048 CCK/W33 |
| SAF 23048 KATLC X 8.15/16 | 227.013 | 285.75 | 422.275 | 209.55 | 749.3 | SAF 048 KA | 23048 CCK/W33 |
| SAFS 23048 KA X 8.15/16 | 227.013 | 295.275 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SAFS 23048 KAT X 8.15/16 | 227.013 | 358.775 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SAFS 23048 KATLC X 8.15/16 | 227.013 | 295.275 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KA X 8.15/16 | 227.013 | 295.275 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KAT X 8.15/16 | 227.013 | 358.775 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KATLC X 8.15/16 | 227.013 | 295.275 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SAF 23048 KA X 9 | 228.6 | 285.75 | 422.275 | 209.55 | 749.3 | SAF 048 KA | 23048 CCK/W33 |
| SAF 23048 KAT X 9 | 228.6 | 390.525 | 422.275 | 209.55 | 749.3 | SAF 048 KA | 23048 CCK/W33 |
| SAF 23048 KATLC X 9 | 228.6 | 285.75 | 422.275 | 209.55 | 749.3 | SAF 048 KA | 23048 CCK/W33 |
| SAFS 23048 KA X 9 | 228.6 | 295.275 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SAFS 23048 KAT X 9 | 228.6 | 358.775 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SAFS 23048 KATLC X 9 | 228.6 | 295.275 | 419.1 | 209.55 | 749.3 | SAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KA X 9 | 228.6 | 295.275 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KAT X 9 | 228.6 | 358.775 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SSAFS 23048 KATLC X 9 | 228.6 | 295.275 | 419.1 | 209.55 | 749.3 | SSAFS 048 KA | 23048 CCK/W33 |
| SAF 23052 KA X 9.7/16 | 239.713 | 304.8 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAF 23052 KAT X 9.7/16 | 239.713 | 409.575 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAF 23052 KATLC X 9.7/16 | 239.713 | 304.8 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAFS 23052 KA X 9.7/16 | 239.713 | 311.15 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SAFS 23052 KAT X 9.7/16 | 239.713 | 368.3 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SAFS 23052 KATLC X 9.7/16 | 239.713 | 311.15 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KA X 9.7/16 | 239.713 | 311.15 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KAT X 9.7/16 | 239.713 | 368.3 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KATLC X 9.7/16 | 239.713 | 311.15 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SAF 23052 KA X 9.1/2 | 241.3 | 304.8 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAF 23052 KAT X 9.1/2 | 241.3 | 409.575 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAF 23052 KATLC X 9.1/2 | 241.3 | 304.8 | 474.663 | 241.3 | 831.85 | SAF 052 KA | 23052 CCK/W33 |
| SAFS 23052 KA X 9.1/2 | 241.3 | 311.15 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SAFS 23052 KAT X 9.1/2 | 241.3 | 368.3 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SAFS 23052 KATLC X 9.1/2 | 241.3 | 311.15 | 473.075 | 241.3 | 831.85 | SAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KA X 9.1/2 | 241.3 | 311.15 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KAT X 9.1/2 | 241.3 | 368.3 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SSAFS 23052 KATLC X 9.1/2 | 241.3 | 311.15 | 473.075 | 241.3 | 831.85 | SSAFS 052 KA | 23052 CCK/W33 |
| SAF 23056 KA X 9.15/16 | 252.413 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KAT X 9.15/16 | 252.413 | 419.1 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KATLC X 9.15/16 | 252.413 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KA X 9.15/16 | 252.413 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KAT X 9.15/16 | 252.413 | 379.413 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KATLC X 9.15/16 | 252.413 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KA X 9.15/16 | 252.413 | 317.5 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KAT X 9.15/16 | 252.413 | 379.425 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KATLC X 9.15/16 | 252.413 | 315.119 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KA X 10 | 254 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KAT X 10 | 254 | 419.1 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KATLC X 10 | 254 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KA X 10 | 254 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KAT X 10 | 254 | 379.413 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SAFS 23056 KATLC X 10 | 254 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KA X 10 | 254 | 317.5 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KAT X 10 | 254 | 379.425 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SSAFS 23056 KATLC X 10 | 254 | 315.119 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUB | 23056 CCK/W33 |
| SAF 23056 KA X 10.7/16 | 265.113 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAF 23056 KAT X 10.7/16 | 265.113 | 419.1 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAF 23056 KATLC X 10.7/16 | 265.113 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KA X 10.7/16 | 265.113 | 317.5 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KAT X 10.7/16 | 265.113 | 379.413 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KATLC X 10.7/16 | 265.113 | 317.5 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KA X 10.7/16 | 265.113 | 317.5 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KAT X 10.7/16 | 265.113 | 379.425 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KATLC X 10.7/16 | 265.113 | 317.5 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
| SAF 23056 KA X 10.1/2 | 266.7 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAF 23056 KAT X 10.1/2 | 266.7 | 419.1 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAF 23056 KATLC X 10.1/2 | 266.7 | 315.119 | 495.3 | 250.825 | 869.95 | SAF 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KA X 10.1/2 | 266.7 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KAT X 10.1/2 | 266.7 | 379.413 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SAFS 23056 KATLC X 10.1/2 | 266.7 | 315.119 | 495.3 | 250.825 | 869.95 | SAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KA X 10.1/2 | 266.7 | 317.5 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KAT X 10.1/2 | 266.7 | 379.425 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
| SSAFS 23056 KATLC X 10.1/2 | 266.7 | 315.119 | 495.3 | 250.825 | 869.95 | SSAFS 056 KAUA | 23056 CCK/W33 |
