Imperial Single Row-1

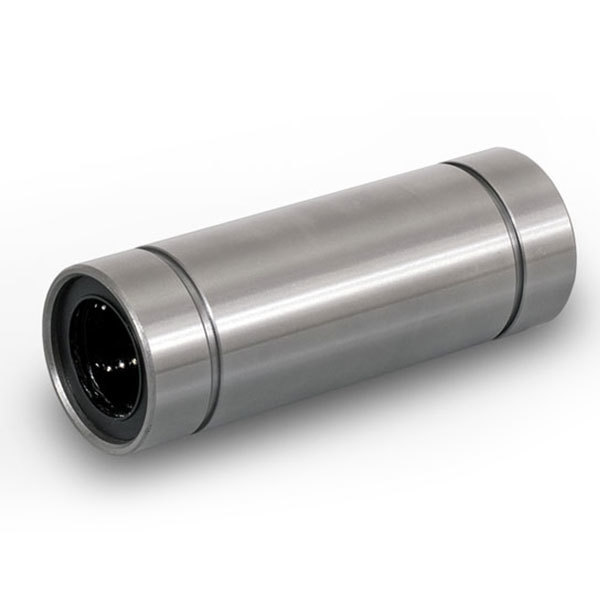

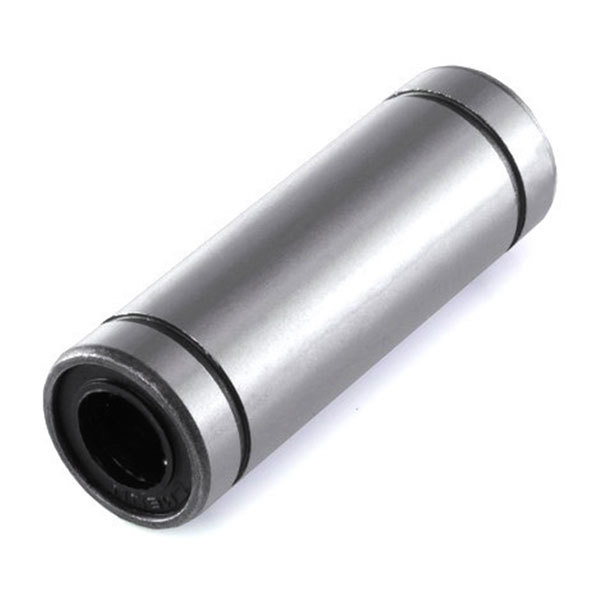

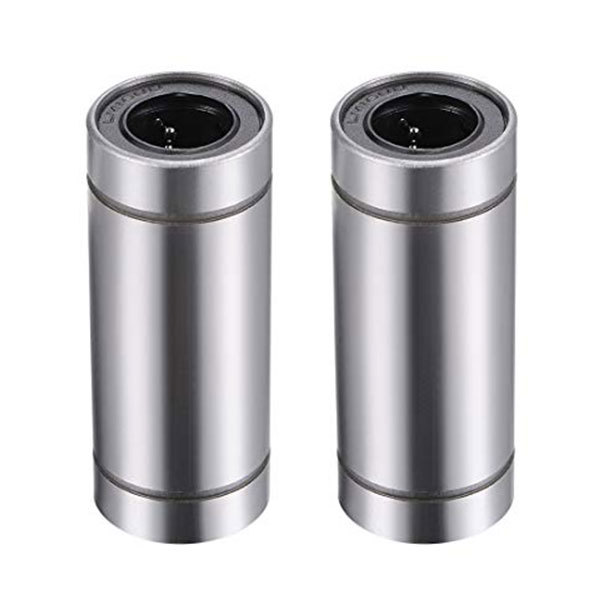

LME..LUU(Long Type)
The ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete LME.LUU long linear bearing.
The size of LME.LUU long linear motion bearing is metric version, making the product extensively used in the European countries. This type of standard linear bushings LME.LUU provide low friction on high speed movement, and the shaft diameter is from 8mm to 60mm.
| Bearing Model | d(mm) | D(mm) | L(mm) |
| LME8LUU | 8 | 16 | 45 |
| LME12LUU | 12 | 22 | 57 |
| LME16LUU | 16 | 26 | 70 |
| LME20LUU | 20 | 32 | 80 |
| LME25LUU | 25 | 40 | 112 |
| LME30LUU | 30 | 47 | 123 |
| LME40LUU | 40 | 62 | 154 |
| LME50LUU | 50 | 75 | 192 |
| LME60LUU | 60 | 90 | 211 |
