Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

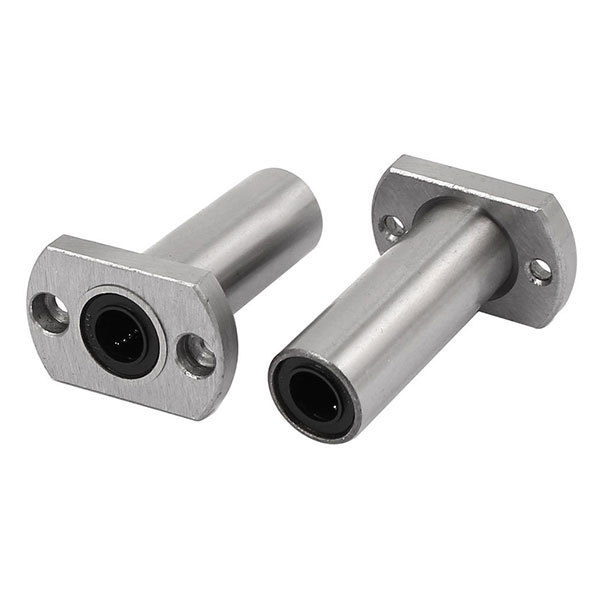

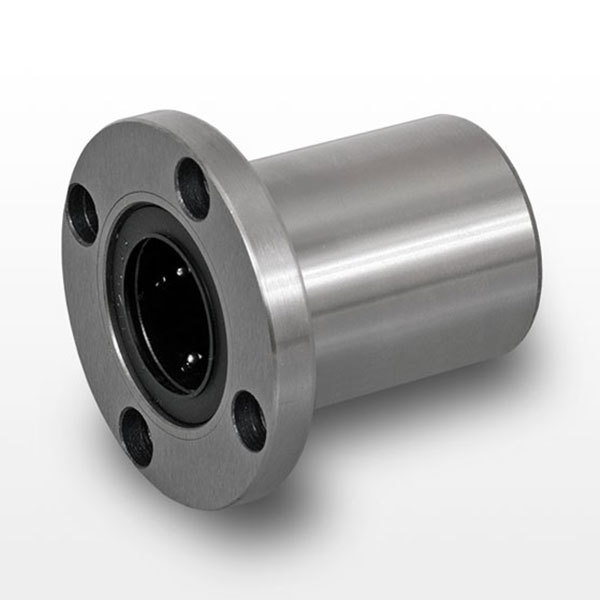

LMF&LMK&LMH (Flange Type)
LMF LMK LMH Linear Bearing Bushing with Round/Square/oval Flange.
These bearings have the flange to allow fitting into housings flush against the shoulder of the flange.
They are often used on steel tracks as guides and supports.
The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing.
| Flange Type Bearing Number | d mm | D mm | L mm | ||
| Circular | Square | Oval | |||
| LMF 6UU | LMK 6UU | LMH 6UU | 6 | 12 | 19 |
| LMF 8SUU | LMK 8SUU | 8 | 15 | 17 | |
| LMF 8UU | LMK 8UU | LMH 8UU | 8 | 15 | 24 |
| LMF 10UU | LMK 10UU | LMH 10UU | 10 | 19 | 29 |
| LMF 12UU | LMFK12UU | LMFH12UU | 12 | 21 | 30 |
| LMF 13UU | LMK 13UU | LMH 13UU | 13 | 23 | 32 |
| LMF 16UU | LMK 16UU | LMH 16UU | 16 | 28 | 37 |
| LMF 20UU | LMK 20UU | LMH 20UU | 20 | 32 | 42 |
| LMF 25UU | LMK 25UU | LMH 25UU | 25 | 40 | 59 |
| LMF 30UU | LMK 30UU | LMH 30UU | 30 | 45 | 64 |
| LMF 35UU | LMK 35UU | 35 | 52 | 70 | |
| LMF 40UU | LMK 40UU | 40 | 60 | 80 | |
| LMF 50UU | LMK 50UU | 50 | 80 | 100 | |
| LMF 60UU | LMK 60UU | 60 | 90 | 110 | |
| LMF 80UU | LMK 80UU | 80 | 120 | 140 | |
| LMF 100UU | LMK 100UU | 100 | 150 | 175 | |
