Imperial Single Row-1

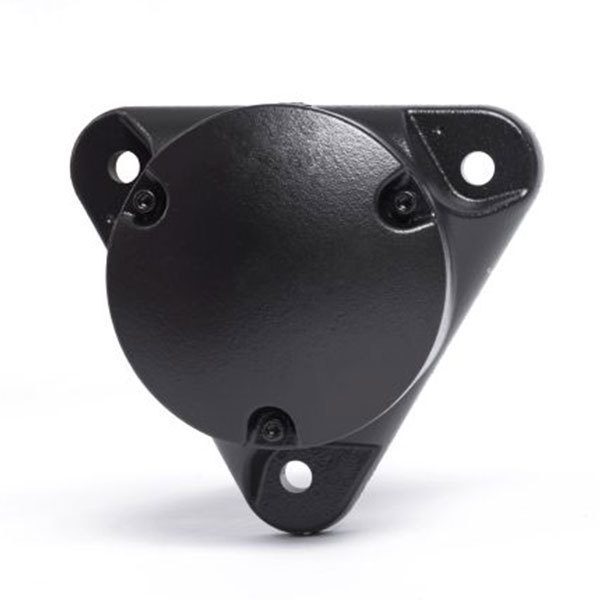

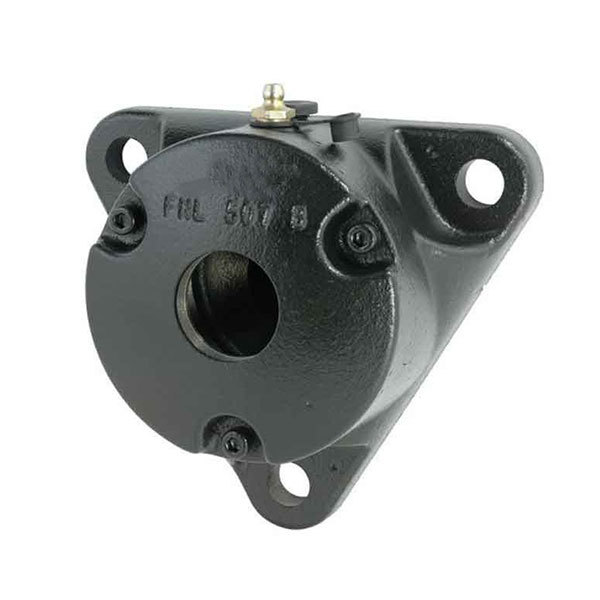

FNL cast flanged, non-split housings are well-proven machine parts that provide simple and reliable housing in applications without horizontal frames. They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. FNL housings are supplied with a cover either for shaft ends (suffix A) or for though shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.

Designation of appropriate components	Shaft diameter	Principal housing dimensions
		Width	Height	Centre height	Length
	da[mm]	AA, AB[mm]	H[mm]	H1[mm]	L[mm]
FNL 505 A + 1205 K + H 205	20	57	100	38	110
FNL 505 A + 2205 K + H 305	20	57	100	38	110
FNL 505 A + 22205 K + H 305	20	57	100	38	110
FNL 505 B + 1205 K + H 205	20	56.5	100	38	110
FNL 505 B + 2205 K + H 305	20	56.5	100	38	110
FNL 505 B + 22205 K + H 305	20	56.5	100	38	110
FNL 506 A + 1206 K + H 206	25	60.5	117	44	130
FNL 506 A + 2206 K + H 306	25	60.5	117	44	130
FNL 506 A + 22206 K + H 306	25	60.5	117	44	130
FNL 506 A + C 2206 K + H 306 E	25	60.5	117	44	130
FNL 506 B + 1206 K + H 206	25	60	117	44	130
FNL 506 B + 2206 K + H 306	25	60	117	44	130
FNL 506 B + 22206 K + H 306	25	60	117	44	130
FNL 506 B + C 2206 K + H 306 E	25	60	117	44	130
FNL 507 A + 1207 K + H 207	30	64.5	130	48.5	145
FNL 507 A + 2207 K + H 307	30	64.5	130	48.5	145
FNL 507 A + 22207 K + H 307	30	64.5	130	48.5	145
FNL 507 A + C 2207 K + H 307 E	30	64.5	130	48.5	145
FNL 507 B + 1207 K + H 207	30	64	130	48.5	145
FNL 507 B + 2207 K + H 307	30	64	130	48.5	145
FNL 507 B + 22207 K + H 307	30	64	130	48.5	145
FNL 507 B + C 2207 K + H 307 E	30	64	130	48.5	145
FNL 508 A + 1208 K + H 208	35	67	143	54	160
FNL 508 A + 2208 K + H 308	35	67	143	54	160
FNL 508 A + 22208 K + H 308	35	67	143	54	160
FNL 508 A + C 2208 K + H 308 E	35	67	143	54	160
FNL 508 B + 1208 K + H 208	35	66	143	54	160
FNL 508 B + 2208 K + H 308	35	66	143	54	160
FNL 508 B + 22208 K + H 308	35	66	143	54	160
FNL 508 B + C 2208 K + H 308 E	35	66	143	54	160
FNL 509 A + 1209 K + H 209	40	72	160	60	179
FNL 509 A + 2209 K + H 309	40	72	160	60	179
FNL 509 A + 22209 K + H 309	40	72	160	60	179
FNL 509 A + C 2209 K + H 309 E	40	72	160	60	179
FNL 509 B + 1209 K + H 209	40	70.5	160	60	179
FNL 509 B + 2209 K + H 309	40	70.5	160	60	179
FNL 509 B + 22209 K + H 309	40	70.5	160	60	179
FNL 509 B + C 2209 K + H 309 E	40	70.5	160	60	179
FNL 510 A + 1210 K + H 210	45	77	160	60	179
FNL 510 A + 2210 K + H 310	45	77	160	60	179
FNL 510 A + 22210 K + H 310	45	77	160	60	179
FNL 510 A + C 2210 K + H 310 E	45	77	160	60	179
FNL 510 B + 1210 K + H 210	45	75	160	60	179
FNL 510 B + 2210 K + H 310	45	75	160	60	179
FNL 510 B + 22210 K + H 310	45	75	160	60	179
FNL 510 B + C 2210 K + H 310 E	45	75	160	60	179
FNL 511 A + 1211 K + H 211	50	84	172.5	65	192
FNL 511 A + 2211 K + H 311	50	84	172.5	65	192
FNL 511 A + 22211 K + H 311	50	84	172.5	65	192
FNL 511 A + C 2211 K + H 311 E	50	84	172.5	65	192
FNL 511 B + 1211 K + H 211	50	82	172.5	65	192
FNL 511 B + 2211 K + H 311	50	82	172.5	65	192
FNL 511 B + 22211 K + H 311	50	82	172.5	65	192
FNL 511 B + C 2211 K + H 311 E	50	82	172.5	65	192
FNL 512 A + 1212 K + H 212	55	85	189	72	210
FNL 512 A + 2212 K + H 312	55	85	189	72	210
FNL 512 A + 22212 K + H 312	55	85	189	72	210
FNL 512 A + C 2212 K + H 312 E	55	85	189	72	210
FNL 512 B + 1212 K + H 212	55	83	189	72	210
FNL 512 B + 2212 K + H 312	55	83	189	72	210
FNL 512 B + 22212 K + H 312	55	83	189	72	210
FNL 512 B + C 2212 K + H 312 E	55	83	189	72	210
FNL 513 A + 1213 K + H 213	60	88	203	78	225
FNL 513 A + 2213 K + H 313	60	88	203	78	225
FNL 513 A + 22213 K + H 313	60	88	203	78	225
FNL 513 A + C 2213 K + H 313 E	60	88	203	78	225
FNL 513 B + 1213 K + H 213	60	86	203	78	225
FNL 513 B + 2213 K + H 313	60	86	203	78	225
FNL 513 B + 22213 K + H 313	60	86	203	78	225
FNL 513 B + C 2213 K + H 313 E	60	86	203	78	225
FNL 515 A + 1215 K + H 215	65	106	190	95	190
FNL 515 A + 2215 K + H 315	65	106	190	95	190
FNL 515 A + 22215 K + H 315	65	106	190	95	190
FNL 515 A + C 2215 K + H 315 E	65	106	190	95	190
FNL 515 B + 1215 K + H 215	65	104	190	95	190
FNL 515 B + 2215 K + H 315	65	104	190	95	190
FNL 515 B + 22215 K + H 315	65	104	190	95	190
FNL 515 B + C 2215 K + H 315 E	65	104	190	95	190
FNL 516 A + 1216 K + H 216	70	113	196	98	196
FNL 516 A + 2216 K + H 316	70	113	196	98	196
FNL 516 A + 22216 K + H 316	70	113	196	98	196
FNL 516 A + C 2216 K + H 316 E	70	113	196	98	196
FNL 516 B + 1216 K + H 216	70	110	196	98	196
FNL 516 B + 2216 K + H 316	70	110	196	98	196
FNL 516 B + 22216 K + H 316	70	110	196	98	196
FNL 516 B + C 2216 K + H 316 E	70	110	196	98	196
FNL 517 A + 1217 K + H 217	75	117.5	210	105	210
FNL 517 A + 2217 K + H 317	75	117.5	210	105	210
FNL 517 A + 22217 K + H 317	75	117.5	210	105	210
FNL 517 A + C 2217 K + H 317 E	75	117.5	210	105	210
FNL 517 B + 1217 K + H 217	75	115	210	105	210
FNL 517 B + 2217 K + H 317	75	115	210	105	210
FNL 517 B + 22217 K + H 317	75	115	210	105	210
FNL 517 B + C 2217 K + H 317 E	75	115	210	105	210
FNL 518 A + 1218 K + H 218	80	121	210	105	210
FNL 518 A + 2218 K + H 318	80	121	210	105	210
FNL 518 A + 22218 K + H 318	80	121	210	105	210
FNL 518 A + C 2218 K + H 318 E	80	121	210	105	210
FNL 518 B + 1218 K + H 218	80	118	210	105	210
FNL 518 B + 2218 K + H 318	80	118	210	105	210
FNL 518 B + 22218 K + H 318	80	118	210	105	210
FNL 518 B + C 2218 K + H 318 E	80	118	210	105	210
FNL 520 A + 1220 K + H 220	90	130	250	125	250
FNL 520 A + 2220 K + H 320	90	130	250	125	250
FNL 520 A + 22220 K + H 320	90	130	250	125	250
FNL 520 A + C 2220 K + H 320 E	90	130	250	125	250
FNL 520 B + 1220 K + H 220	90	127	250	125	250
FNL 520 B + 2220 K + H 320	90	127	250	125	250
FNL 520 B + 22220 K + H 320	90	127	250	125	250
FNL 520 B + C 2220 K + H 320 E	90	127	250	125	250
FNL 522 A + 1222 K + H 222	100	140	270	135	270
FNL 522 A + 2222 K + H 322	100	140	270	135	270
FNL 522 A + 22222 K + H 322	100	140	270	135	270
FNL 522 A + C 2222 K + H 322 E	100	140	270	135	270
FNL 522 B + 1222 K + H 222	100	137	270	135	270
FNL 522 B + 2222 K + H 322	100	137	270	135	270
FNL 522 B + 22222 K + H 322	100	137	270	135	270
FNL 522 B + C 2222 K + H 322 E	100	137	270	135	270
