Imperial Single Row-1

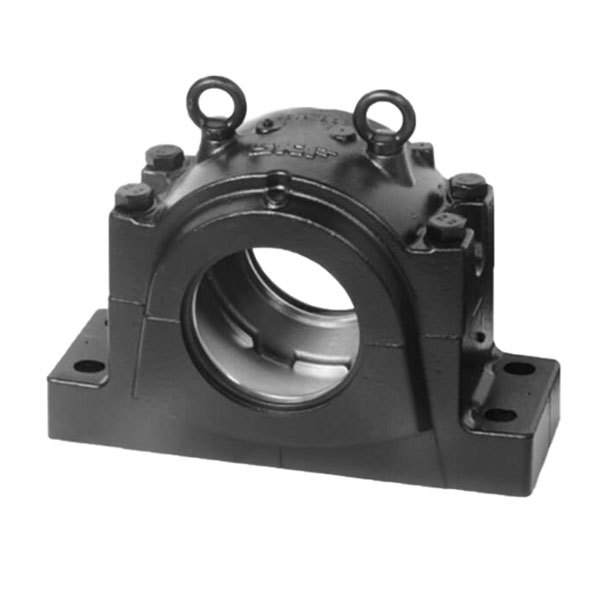

SNL plummer (pillow) block housings are the most popular bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Designation	Bearing seat			Boundary dimension			Attachment bolt holes
	Diameter	Width	Centre height	Width	Height	Length	No.	Radial distance
	Da[mm]	Ca[mm]	H1[mm]	A[mm]	H[mm]	L[mm]		J[mm]
SNL 518-615/MS2	160	65	100	143	192	345	4	280
SNLD 218	160	65	100	143	192	345	2	290
FSNL 519-616	170	68	112	145	212	345	4	290
SNL 519 TURU	170	68	112	142	212	345	2	290
SNL 519-616	170	68	112	145	212	345	2	290
SNL 519-616 V	170	68	112	145	212	345	2	290
SNL 519-616 VU	170	68	112	145	212	345	2	290
SNL 519-616/MS2	170	68	112	145	212	345	4	280
SNL 616 TURU	170	68	112	142	212	345	2	290
SSNLD 519-616	170	68	112	145	212	345	0	290
FSNL 520-617	180	70	112	160	218	380	4	320
FSNLD 520-617	180	70	112	160	218	380	4	320
SNL 520 TURU	180	70	112	158	218	380	2	320
SNL 520-617	180	70	112	160	218	380	2	320
SNL 520-617 V	180	70	112	160	218	380	2	320
SNL 520-617 VU	180	70	112	160	218	380	2	320
SNL 617 TURU	180	70	112	158	218	380	2	320
SSNLD 520-617	180	70	112	160	218	380	0	320
FSNL 522-619	200	80	125	175	242	410	4	350
FSNLD 522-619	200	80	125	175	242	410	4	350
SNL 319 TURU	200	80	125	170	242	410	2	350
SNL 522 TURU	200	80	125	170	242	410	2	350
SNL 522-619	200	80	125	175	242	410	2	350
SNL 522-619 V	200	80	125	175	242	410	2	350
SNL 522-619 VU	200	80	125	175	242	410	2	350
FSNL 524-620	215	86	140	185	271	410	4	350
FSNLD 524-620	215	86	140	185	271	410	4	350
SNL 320 TURU	215	86	140	178	271	410	2	350
SNL 524 TURU	215	86	140	178	271	410	2	350
SNL 524-620	215	86	140	185	271	410	2	350
SNL 524-620 V	215	86	140	185	271	410	2	350
SNL 524-620 VU	215	86	140	185	271	410	2	350
SNL 620 TURU	215	86	140	178	271	410	2	350
FSNL 526	230	90	150	190	290	445	4	380
FSNLD 526	230	90	150	190	290	445	4	380
SNL 526	230	90	150	190	290	445	2	380
SNL 526 TURU	230	90	150	184	290	445	2	380
SNL 526 V	230	90	150	190	290	445	2	380
SNL 526 VU	230	90	150	190	290	445	2	380
SSNLD 526	230	90	150	190	290	445	0	380
FSNL 528	250	98	150	205	302	500	4	420
FSNLD 528	250	98	150	205	302	500	4	420
SNL 528	250	98	150	205	302	500	2	420
SNL 528 TURU	250	98	150	198	302	500	2	420
SNL 528 V	250	98	150	205	302	500	2	420
SNL 528 VU	250	98	150	205	302	500	2	420
SNL 528/MS2	250	98	150	205	302	500	4	400
SNLD 528	250	98	150	205	302	500	2	420
FSNL 530	270	106	160	220	323	530	4	450
FSNLD 530	270	106	160	220	323	530	4	450
SNL 530	270	106	160	220	323	530	2	450
SNL 530 TURU	270	106	160	214	323	530	2	450
SNL 530 V	270	106	160	220	323	530	2	450
SNL 530 VU	270	106	160	220	323	530	2	450
SSNLD 530	270	106	160	220	323	530	0	450
FSNL 532	290	114	170	235	344	550	4	470
FSNLD 532	290	114	170	235	344	550	4	470
SNL 532	290	114	170	235	344	550	2	470
SNL 532 TURU	290	114	170	230	344	550	2	470
SNL 532 V	290	114	170	235	344	550	2	470
SNL 532 VU	290	114	170	235	344	550	2	470
SSNLD 532	290	114	170	235	344	550	0	470
