Imperial Single Row-1

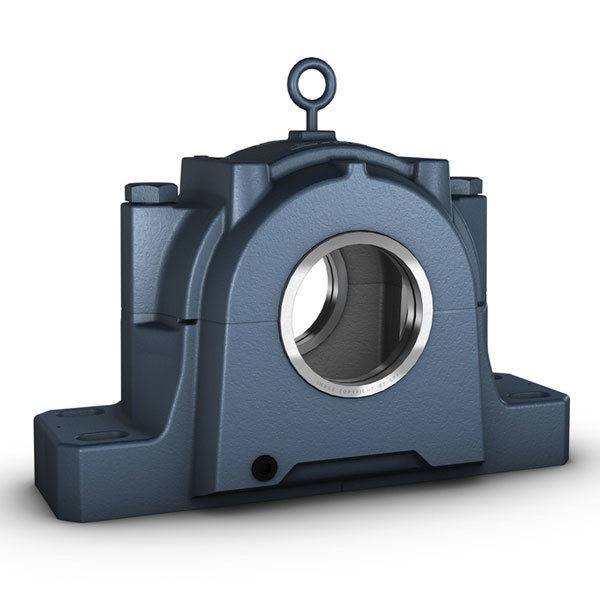

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
SAFS 22526 X 4.1/2 T	114.3	279.4	292.1	152.4	466.725	SAFS 526	22226 EK
SAFS 22526 X 4.1/2 TLC	114.3	203.2	292.1	152.4	466.725	SAFS 526	22226 EK
SAFS 23026 KA X 4.1/2	114.3	165.1	244.475	125.425	419.1	SAFS 026 KA	23026 CCK/W33
SAFS 23026 KAT X 4.1/2	114.3	231.775	244.475	125.425	419.1	SAFS 026 KA	23026 CCK/W33
SAFS 23026 KATLC X 4.1/2	114.3	165.1	244.475	125.425	419.1	SAFS 026 KA	23026 CCK/W33
SAW 23526 X 4.1/2	114.3	193.675	295.275	152.4	466.725	SAW 526	23226 CCK/W33
SAW 23526 X 4.1/2 T	114.3	269.875	295.275	152.4	466.725	SAW 526	23226 CCK/W33
SAW 23526 X 4.1/2 TLC	114.3	193.675	295.275	152.4	466.725	SAW 526	23226 CCK/W33
SSAFS 22526 X 4.1/2	114.3	203.2	292.1	152.4	466.725	SSAFS 526	22226 EK
SSAFS 22526 X 4.1/2 T	114.3	279.4	292.1	152.4	466.725	SSAFS 526	22226 EK
SSAFS 22526 X 4.1/2 TLC	114.3	203.2	292.1	152.4	466.725	SSAFS 526	22226 EK
SSAFS 23026 KA X 4.1/2	114.3	165.1	244.475	125.425	419.1	SSAFS 026 KA	23026 CCK/W33
SSAFS 23026 KAT X 4.1/2	114.3	231.775	244.475	125.425	419.1	SSAFS 026 KA	23026 CCK/W33
SSAFS 23026 KATLC X 4.1/2	114.3	165.1	244.475	125.425	419.1	SSAFS 026 KA	23026 CCK/W33
SAF 22528 X 4.13/16	122.238	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 4.13/16 T	122.238	260.35	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 4.13/16 TLC	122.238	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22628 X 4.13/16	122.238	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 4.13/16 T	122.238	307.975	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 4.13/16 TLC	122.238	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 23028 KA X 4.13/16	122.238	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KAT X 4.13/16	122.238	255.588	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KATLC X 4.13/16	122.238	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAFS 22528 X 4.13/16	122.238	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 4.13/16 T	122.238	260.35	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 4.13/16 TLC	122.238	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 23028 KA X 4.13/16	122.238	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KAT X 4.13/16	122.238	250.825	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KATLC X 4.13/16	122.238	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAW 23528 X 4.13/16	122.238	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 4.13/16 T	122.238	260.35	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 4.13/16 TLC	122.238	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SSAFS 22528 X 4.13/16	122.238	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 4.13/16 T	122.238	260.35	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 4.13/16 TLC	122.238	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 23028 KA X 4.13/16	122.238	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KAT X 4.13/16	122.238	250.825	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KATLC X 4.13/16	122.238	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SAF 22528 X 4.7/8	123.825	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 4.7/8 T	123.825	260.35	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 4.7/8 TLC	123.825	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22628 X 4.7/8	123.825	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 4.7/8 T	123.825	307.975	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 4.7/8 TLC	123.825	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 23028 KA X 4.7/8	123.825	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KAT X 4.7/8	123.825	255.588	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KATLC X 4.7/8	123.825	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAFS 22528 X 4.7/8	123.825	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 4.7/8 T	123.825	260.35	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 4.7/8 TLC	123.825	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 23028 KA X 4.7/8	123.825	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KAT X 4.7/8	123.825	250.825	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KATLC X 4.7/8	123.825	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAW 23528 X 4.7/8	123.825	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 4.7/8 T	123.825	260.35	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 4.7/8 TLC	123.825	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SSAFS 22528 X 4.7/8	123.825	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 4.7/8 T	123.825	260.35	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 4.7/8 TLC	123.825	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 23028 KA X 4.7/8	123.825	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KAT X 4.7/8	123.825	250.825	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KATLC X 4.7/8	123.825	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SAF 22528	125.413	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 TLC	125.413	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22628	125.413	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 T	125.413	307.975	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 TLC	125.413	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 23028 KA X 4.15/16	125.413	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KAT X 4.15/16	125.413	255.588	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KATLC X 4.15/16	125.413	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAFS 22528	125.413	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 T	125.413	260.35	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 TLC	125.413	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 23028 KA X 4.15/16	125.413	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KAT X 4.15/16	125.413	250.825	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KATLC X 4.15/16	125.413	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAW 23528	125.413	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 T	125.413	260.35	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 TLC	125.413	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SSAFS 22528	125.413	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 T	125.413	260.35	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 TLC	125.413	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 23028 KA X 4.15/16	125.413	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KAT X 4.15/16	125.413	250.825	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KATLC X 4.15/16	125.413	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SAF 22528 X 5	127	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 5 T	127	260.35	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22528 X 5 TLC	127	193.675	305.594	152.4	511.175	SAF 528	22228 CCK/W33
SAF 22628 X 5	127	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 5 T	127	307.975	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 22628 X 5 TLC	127	242.888	360.363	179.375	628.65	SAF 628	22328 CCK/W33
SAF 23028 KA X 5	127	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KAT X 5	127	255.588	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAF 23028 KATLC X 5	127	187.325	258.763	133.35	419.1	SAF 028 KA	23028 CCK/W33
SAFS 22528 X 5	127	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 5 T	127	260.35	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 22528 X 5 TLC	127	193.675	298.45	152.4	511.175	SAFS 528	22228 CCK/W33
SAFS 23028 KA X 5	127	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KAT X 5	127	250.825	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAFS 23028 KATLC X 5	127	190.5	257.175	133.35	419.1	SAFS 028 KA	23028 CCK/W33
SAW 23528 X 5	127	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 5 T	127	260.35	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SAW 23528 X 5 TLC	127	231.775	298.45	152.4	511.175	SAW 528	23228 CCK/W33
SSAFS 22528 X 5	127	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 5 T	127	260.35	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 22528 X 5 TLC	127	193.675	298.45	152.4	511.175	SSAFS 528	22228 CCK/W33
SSAFS 23028 KA X 5	127	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KAT X 5	127	250.825	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SSAFS 23028 KATLC X 5	127	190.5	257.175	133.35	419.1	SSAFS 028 KA	23028 CCK/W33
SAF 22530 X 5.1/8	130.175	215.9	320.675	160.325	539.75	SAF 530	22230 CCK/W33
SAF 22530 X 5.1/8 T	130.175	279.4	320.675	160.325	539.75	SAF 530	22230 CCK/W33
SAF 22530 X 5.1/8 TLC	130.175	215.9	320.675	160.325	539.75	SAF 530	22230 CCK/W33
SAF 22630 X 5.1/8	130.175	250.825	377.825	190.5	679.45	SAF 630	22330 CCK/W33
SAF 22630 X 5.1/8 T	130.175	317.5	377.825	190.5	679.45	SAF 630	22330 CCK/W33
SAF 22630 X 5.1/8 TLC	130.175	250.825	377.825	190.5	679.45	SAF 630	22330 CCK/W33
