Imperial Single Row-1

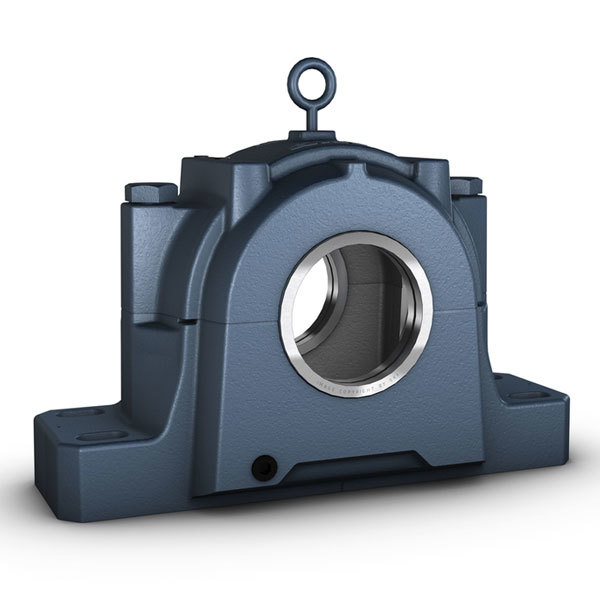

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
SAF 1622 X 4 T	101.6	273.05	287.338	152.4	466.725	SAF 622	1322 KM
SAF 1622 X 4 TLC	101.6	206.375	287.338	152.4	466.725	SAF 622	1322 KM
SAF 22522 X 4	101.6	165.1	239.316	125.425	419.1	SAF 522	22222 EK
SAF 22522 X 4 T	101.6	231.775	239.316	125.425	419.1	SAF 522	22222 EK
SAF 22522 X 4 TLC	101.6	165.1	239.316	125.425	419.1	SAF 522	22222 EK
SAF 22622 X 4	101.6	206.375	287.338	152.4	466.725	SAF 622	22322 EK
SAF 22622 X 4 T	101.6	273.05	287.338	152.4	466.725	SAF 622	22322 EK
SAF 22622 X 4 TLC	101.6	206.375	287.338	152.4	466.725	SAF 622	22322 EK
SAF 22624 X 4	101.6	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4 T	101.6	279.4	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4 TLC	101.6	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 23024 KA X 4	101.6	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KAT X 4	101.6	228.6	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KATLC X 4	101.6	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAFS 22522 X 4	101.6	165.1	244.475	125.425	419.1	SAFS 522	22222 EK
SAFS 22522 X 4 T	101.6	231.775	244.475	125.425	419.1	SAFS 522	22222 EK
SAFS 22522 X 4 TLC	101.6	165.1	244.475	125.425	419.1	SAFS 522	22222 EK
SAFS 23024 KA X 4	101.6	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KA-11 X 4	101.6	155.575	222.25	114.3	387.35	SAFS 024 KA-11	23024 CCK/W33
SAFS 23024 KAT X 4	101.6	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KAT-11 X 4	101.6	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC X 4	101.6	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC-11 X 4	101.6	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAW 23524 X 4	101.6	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4 T	101.6	254	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4 TLC	101.6	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SSAFS 22522 X 4	101.6	165.1	244.475	125.425	419.1	SSAFS 522	22222 EK
SSAFS 22522 X 4 T	101.6	231.775	244.475	125.425	419.1	SSAFS 522	22222 EK
SSAFS 22522 X 4 TLC	101.6	165.1	244.475	125.425	419.1	SSAFS 522	22222 EK
SSAFS 23024 KA X 4	101.6	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KAT X 4	101.6	222.25	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KATLC X 4	101.6	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
FSAF 23024 KA X 4.1/16	103.188	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KAT X 4.1/16	103.188	228.6	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KATLC X 4.1/16	103.188	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
SAF 22524 X 4.1/16	103.188	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 X 4.1/16 T	103.188	254	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 X 4.1/16 TLC	103.188	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22624 X 4.1/16	103.188	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4.1/16 T	103.188	279.4	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4.1/16 TLC	103.188	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 23024 KA X 4.1/16	103.188	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KAT X 4.1/16	103.188	228.6	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KATLC X 4.1/16	103.188	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAFS 22524 X 4.1/16	103.188	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 X 4.1/16 T	103.188	250.825	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 X 4.1/16 TLC	103.188	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 23024 KA X 4.1/16	103.188	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KA-11 X 4.1/16	103.188	155.575	222.25	114.3	387.35	SAFS 024 KA-11	23024 CCK/W33
SAFS 23024 KAT X 4.1/16	103.188	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KAT-11 X 4.1/16	103.188	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC X 4.1/16	103.188	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC-11 X 4.1/16	103.188	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAW 23524 X 4.1/16	103.188	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4.1/16 T	103.188	254	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4.1/16 TLC	103.188	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SSAFS 22524 X 4.1/16	103.188	190.5	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 22524 X 4.1/16 T	103.188	250.825	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 22524 X 4.1/16 TLC	103.188	190.5	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 23024 KA X 4.1/16	103.188	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KAT X 4.1/16	103.188	222.25	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KATLC X 4.1/16	103.188	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
FSAF 23024 KA X 4.1/8	104.775	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KAT X 4.1/8	104.775	228.6	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KATLC X 4.1/8	104.775	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
SAF 22524 X 4.1/8	104.775	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 X 4.1/8 T	104.775	254	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 X 4.1/8 TLC	104.775	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22624 X 4.1/8	104.775	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4.1/8 T	104.775	279.4	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 X 4.1/8 TLC	104.775	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 23024 KA X 4.1/8	104.775	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KAT X 4.1/8	104.775	228.6	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KATLC X 4.1/8	104.775	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAFS 22524 X 4.1/8	104.775	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 X 4.1/8 T	104.775	250.825	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 X 4.1/8 TLC	104.775	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 23024 KA X 4.1/8	104.775	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KA-11 X 4.1/8	104.775	155.575	222.25	114.3	387.35	SAFS 024 KA-11	23024 CCK/W33
SAFS 23024 KAT X 4.1/8	104.775	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KAT-11 X 4.1/8	104.775	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC X 4.1/8	104.775	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC-11 X 4.1/8	104.775	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAW 23524 X 4.1/8	104.775	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4.1/8 T	104.775	254	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 X 4.1/8 TLC	104.775	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SSAFS 22524 X 4.1/8	104.775	190.5	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 22524 X 4.1/8 T	104.775	250.825	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 22524 X 4.1/8 TLC	104.775	190.5	257.175	133.35	419.1	SSAFS 524	22224 EK
SSAFS 23024 KA X 4.1/8	104.775	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KAT X 4.1/8	104.775	222.25	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
SSAFS 23024 KATLC X 4.1/8	104.775	155.575	222.25	114.3	387.35	SSAFS 024 KA	23024 CCK/W33
FSAF 23024 KA X 4.3/16	106.363	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KAT X 4.3/16	106.363	228.6	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
FSAF 23024 KATLC X 4.3/16	106.363	155.575	217.488	114.3	387.35	FSAF 024 KA	23024 CCK/W33
SAF 22524	106.363	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 T	106.363	254	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22524 TLC	106.363	187.325	257.175	133.35	419.1	SAF 524	22224 EK
SAF 22624	106.363	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 T	106.363	279.4	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 22624 TLC	106.363	215.9	320.675	160.325	539.75	SAF 624	22324 CCK/W33
SAF 23024 KA X 4.3/16	106.363	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KAT X 4.3/16	106.363	228.6	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAF 23024 KATLC X 4.3/16	106.363	155.575	217.488	114.3	387.35	SAF 024 KA	23024 CCK/W33
SAFS 22524	106.363	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 T	106.363	250.825	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 22524 TLC	106.363	190.5	257.175	133.35	419.1	SAFS 524	22224 EK
SAFS 23024 KA X 4.3/16	106.363	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KA-11 X 4.3/16	106.363	155.575	222.25	114.3	387.35	SAFS 024 KA-11	23024 CCK/W33
SAFS 23024 KAT X 4.3/16	106.363	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KAT-11 X 4.3/16	106.363	222.25	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC X 4.3/16	106.363	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAFS 23024 KATLC-11 X 4.3/16	106.363	155.575	222.25	114.3	387.35	SAFS 024 KA	23024 CCK/W33
SAW 23524	106.363	187.325	257.175	133.35	419.1	SAW 524	23224 CCK/W33
SAW 23524 T	106.363	254	257.175	133.35	419.1	SAW 524	23224 CCK/W33
