Imperial Single Row-1

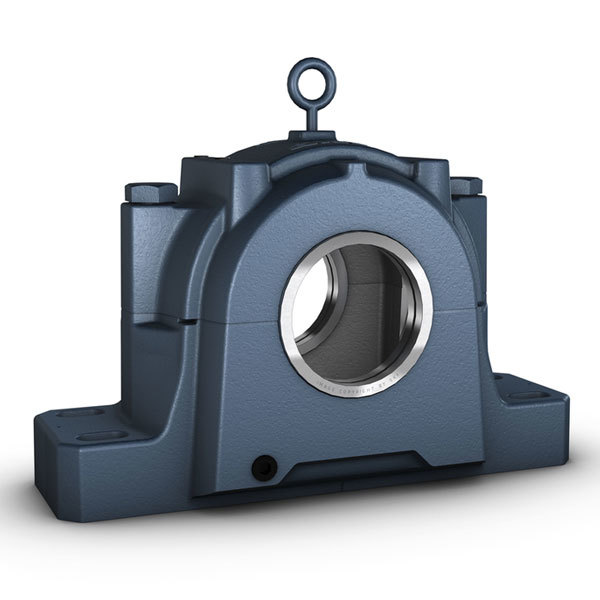

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
FSAF 22613 X 2.1/8	53.975	134.938	167.481	88.9	330.2	FSAF 613	22313 EK
FSAF 22613 X 2.1/8 T	53.975	209.55	167.481	88.9	330.2	FSAF 613	22313 EK
FSAF 22613 X 2.1/8 TLC	53.975	134.938	167.481	88.9	330.2	FSAF 613	22313 EK
SAF 1513 X 2.1/8	53.975	114.3	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1513 X 2.1/8 T	53.975	184.15	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1613 X 2.1/8	53.975	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 X 2.1/8 T	53.975	209.55	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 X 2.1/8 TLC	53.975	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 22513 X 2.1/8	53.975	114.3	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22513 X 2.1/8 T	53.975	184.15	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22613 X 2.1/8	53.975	134.938	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 X 2.1/8 T	53.975	209.55	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 X 2.1/8 TLC	53.975	134.938	167.481	88.9	330.2	SAF 613	22313 EK
FSAF 1613	55.563	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 T	55.563	209.55	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 TLC	55.563	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 22613 T	55.563	209.55	167.481	88.9	330.2	FSAF 613	22313 EK
FSAF 22613 TLC	55.563	134.938	167.481	88.9	330.2	FSAF 613	22313 EK
SAF 1513	55.563	114.3	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1513 T	55.563	184.15	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1513-210	55.563	114.3	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1613	55.563	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 T	55.563	209.55	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 TLC	55.563	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 22513	55.563	114.3	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22513-210	55.563	114.3	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22613	55.563	134.938	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 T	55.563	209.55	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 TLC	55.563	134.938	167.481	88.9	330.2	SAF 613	22313 EK
SAF 2513	55.563	114.3	147.638	76.2	279.4	SAF 513	2213 EKTN9
SAF 2513 T	55.563	184.15	147.638	76.2	279.4	SAF 513	2213 EKTN9
SAF 2513-210	55.563	114.3	147.638	76.2	279.4	SAF 513	2213 EKTN9
FSAF 1613 X 2.1/4	57.15	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 X 2.1/4 T	57.15	209.55	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 X 2.1/4 TLC	57.15	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 22613 X 2.1/4	57.15	134.938	167.481	88.9	330.2	FSAF 613	22313 EK
FSAF 22613 X 2.1/4 T	57.15	209.55	167.481	88.9	330.2	FSAF 613	22313 EK
FSAF 22613 X 2.1/4 TLC	57.15	134.938	167.481	88.9	330.2	FSAF 613	22313 EK
SAF 1513 X 2.1/4	57.15	114.3	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1513 X 2.1/4 T	57.15	184.15	147.638	76.2	279.4	SAF 513	1213 EKTN9
SAF 1613 X 2.1/4	57.15	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 X 2.1/4 T	57.15	209.55	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 1613 X 2.1/4 TLC	57.15	134.938	167.481	88.9	330.2	SAF 613	1313 EKTN9
SAF 22513 X 2.1/4	57.15	114.3	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22513 X 2.1/4 T	57.15	184.15	147.638	76.2	279.4	SAF 513	22213 EK
SAF 22613 X 2.1/4	57.15	134.938	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 X 2.1/4 T	57.15	209.55	167.481	88.9	330.2	SAF 613	22313 EK
SAF 22613 X 2.1/4 TLC	57.15	134.938	167.481	88.9	330.2	SAF 613	22313 EK
FSAF 1515 X 2.3/8	60.325	118.666	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1515 X 2.3/8 T	60.325	193.675	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1515 X 2.3/8 TLC	60.325	118.666	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1615 X 2.3/8	60.325	149.225	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 1615 X 2.3/8 T	60.325	223.838	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 1615 X 2.3/8 TLC	60.325	149.225	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 22515 X 2.3/8	60.325	118.666	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22515 X 2.3/8 T	60.325	193.675	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22515 X 2.3/8 TLC	60.325	118.666	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22615 X 2.3/8	60.325	149.225	192.088	101.6	349.25	FSAF 615	22315 EK
FSAF 22615 X 2.3/8 T	60.325	223.838	192.088	101.6	349.25	FSAF 615	22315 EK
FSAF 22615 X 2.3/8 TLC	60.325	149.225	192.088	101.6	349.25	FSAF 615	22315 EK
SAF 1515 X 2.3/8	60.325	118.666	157.559	82.55	285.75	SAF 515	1215 K
SAF 1515 X 2.3/8 T	60.325	193.675	157.559	82.55	285.75	SAF 515	1215 K
SAF 1515 X 2.3/8 TLC	60.325	118.666	157.559	82.55	285.75	SAF 515	1215 K
SAF 1615 X 2.3/8	60.325	149.225	192.088	101.6	349.25	SAF 615	1315 K
SAF 1615 X 2.3/8 T	60.325	223.838	192.088	101.6	349.25	SAF 615	1315 K
SAF 1615 X 2.3/8 TLC	60.325	149.225	192.088	101.6	349.25	SAF 615	1315 K
SAF 22515 X 2.3/8	60.325	119.063	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22515 X 2.3/8 T	60.325	193.675	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22515 X 2.3/8 TLC	60.325	119.063	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22615 X 2.3/8	60.325	149.225	192.088	101.6	349.25	SAF 615	22315 EK
SAF 22615 X 2.3/8 T	60.325	223.838	192.088	101.6	349.25	SAF 615	22315 EK
SAF 22615 X 2.3/8 TLC	60.325	149.225	192.088	101.6	349.25	SAF 615	22315 EK
SAFS 22515 X 2.3/8	60.325	120.65	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515 X 2.3/8 T	60.325	195.263	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515 X 2.3/8 TLC	60.325	120.65	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515-11 X 2.3/8	60.325	120.65	161.925	82.55	285.75	FSAFS 515	22215 EK
SAFS 22515-11 X 2.3/8 T	60.325	195.263	161.925	82.55	285.75	FSAFS 515	22215 EK
SAFS 22515-11 X 2.3/8 TLC	60.325	120.65	161.925	82.55	285.75	FSAFS 515	22215 EK
SSAFS 22515 X 2.3/8	60.325	120.65	161.925	82.55	285.75	SSAFS 515	22215 EK
SSAFS 22515 X 2.3/8 T	60.325	195.275	161.925	82.55	285.75	SSAFS 515	22215 EK
SSAFS 22515 X 2.3/8 TLC	60.325	120.65	161.925	82.55	285.75	SSAFS 515	22215 EK
FSAF 1515	61.913	118.666	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1515 T	61.913	193.675	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1515 TLC	61.913	118.666	157.559	82.55	285.75	FSAF 515	1215 K
FSAF 1615	61.913	149.225	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 1615 T	61.913	223.838	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 1615 TLC	61.913	149.225	192.088	101.6	349.25	FSAF 615	1315 K
FSAF 22515	61.913	118.666	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22515 T	61.913	193.675	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22515 TLC	61.913	118.666	157.559	82.55	285.75	FSAF 515	22215 EK
FSAF 22615	61.913	149.225	192.088	101.6	349.25	FSAF 615	22315 EK
FSAF 22615 T	61.913	223.838	192.088	101.6	349.25	FSAF 615	22315 EK
FSAF 22615 TLC	61.913	149.225	192.088	101.6	349.25	FSAF 615	22315 EK
SAF 1515	61.913	118.666	157.559	82.55	285.75	SAF 515	1215 K
SAF 1515 T	61.913	193.675	157.559	82.55	285.75	SAF 515	1215 K
SAF 1515 TLC	61.913	118.666	157.559	82.55	285.75	SAF 515	1215 K
SAF 1615	61.913	149.225	192.088	101.6	349.25	SAF 615	1315 K
SAF 1615 T	61.913	223.838	192.088	101.6	349.25	SAF 615	1315 K
SAF 1615 TLC	61.913	149.225	192.088	101.6	349.25	SAF 615	1315 K
SAF 22515	61.913	119.063	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22515 T	61.913	193.675	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22515 TLC	61.913	119.063	157.559	82.55	285.75	SAF 515	22215 EK
SAF 22615	61.913	149.225	192.088	101.6	349.25	SAF 615	22315 EK
SAF 22615 T	61.913	223.838	192.088	101.6	349.25	SAF 615	22315 EK
SAF 22615 TLC	61.913	149.225	192.088	101.6	349.25	SAF 615	22315 EK
SAFS 22515	61.913	120.65	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515 T	61.913	195.263	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515 TLC	61.913	120.65	161.925	82.55	285.75	SAFS 515	22215 EK
SAFS 22515-11	61.913	120.65	161.925	82.55	285.75	FSAFS 515	22215 EK
SAFS 22515-11 T	61.913	195.263	161.925	82.55	285.75	FSAFS 515	22215 EK
SAFS 22515-11 TLC	61.913	120.65	161.925	82.55	285.75	FSAFS 515	22215 EK
SSAFS 22515	61.913	120.65	161.925	82.55	285.75	SSAFS 515	22215 EK
SSAFS 22515 T	61.913	195.275	161.925	82.55	285.75	SSAFS 515	22215 EK
SSAFS 22515 TLC	61.913	120.65	161.925	82.55	285.75	SSAFS 515	22215 EK
