Imperial Single Row-1

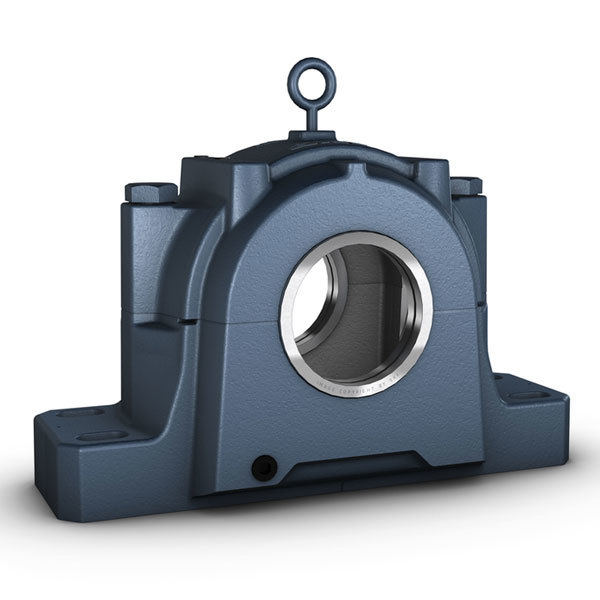

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
SAF 1510 X 1.3/4	26.147	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510 X 1.3/4 T	26.147	165.1	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1507 X 1.1/8	28.575	82.55	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 1507 X 1.1/8 T	28.575	153.988	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 22507 X 1.1/8	28.575	82.55	98.822	50.8	190.5	SAF 507	22207 EK
SAF 22507 X 1.1/8 T	28.575	153.988	98.822	50.8	190.5	SAF 507	22207 EK
SAF 1507	30.163	82.55	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 1507 T	30.163	153.988	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 22507	30.163	82.55	98.822	50.8	190.5	SAF 507	22207 EK
SAF 22507 T	30.163	153.988	98.822	50.8	190.5	SAF 507	22207 EK
SAF 1507 X 1.1/4	31.75	82.55	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 1507 X 1.1/4 T	31.75	153.988	98.822	50.8	190.5	SAF 507	1207 EKTN9
SAF 22507 X 1.1/4	31.75	82.55	98.822	50.8	190.5	SAF 507	22207 EK
SAF 22507 X 1.1/4 T	31.75	153.988	98.822	50.8	190.5	SAF 507	22207 EK
SAF 1509 X 1.3/8	34.925	88.9	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1509 X 1.3/8 T	34.925	153.988	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1609 X 1.3/8	34.925	106.363	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 1609 X 1.3/8 T	34.925	171.45	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 22509 X 1.3/8	34.925	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22509 X 1.3/8 T	34.925	153.988	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22609 X 1.3/8	34.925	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609 X 1.3/8 T	34.925	171.45	134.938	69.85	244.475	SAF 609	22309 EK
SAF 1509	36.513	88.9	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1509 T	36.513	153.988	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1509-210	36.513	88.9	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1609	36.513	106.363	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 1609 T	36.513	171.45	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 1609-210	36.513	106.363	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 22509	36.513	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22509 T	36.513	153.988	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22509-210	36.513	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22609	36.513	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609 T	36.513	171.45	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609-210	36.513	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 1509 X 1.1/2	38.1	88.9	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1509 X 1.1/2 T	38.1	153.988	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1609 X 1.1/2	38.1	106.363	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 1609 X 1.1/2 T	38.1	171.45	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 22509 X 1.1/2	38.1	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22509 X 1.1/2 T	38.1	153.988	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22609 X 1.1/2	38.1	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609 X 1.1/2 T	38.1	171.45	134.938	69.85	244.475	SAF 609	22309 EK
SAF 1510 X 1.5/8	41.275	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510 X 1.5/8 T	41.275	165.1	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1610 X 1.5/8	41.275	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610 X 1.5/8 T	41.275	190.5	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 22510 X 1.5/8	41.275	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510 X 1.5/8 T	41.275	165.1	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22610 X 1.5/8	41.275	115.888	147.638	76.2	269.875	SAF 610	22310 EK
SAF 22610 X 1.5/8 T	41.275	190.5	147.638	76.2	269.875	SAF 610	22310 EK
SAF 1510	42.863	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510 T	42.863	165.1	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510-210	42.863	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1610	42.863	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610 T	42.863	190.5	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610-210	42.863	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 22510	42.863	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510 T	42.863	165.1	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510-210	42.863	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22610	42.863	115.888	147.638	76.2	269.875	SAF 610	22310 EK
SAF 22509-210	36.513	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22609	36.513	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609 T	36.513	171.45	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609-210	36.513	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 1509 X 1.1/2	38.1	88.9	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1509 X 1.1/2 T	38.1	153.988	112.713	57.15	209.55	SAF 509	1209 EKTN9
SAF 1609 X 1.1/2	38.1	106.363	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 1609 X 1.1/2 T	38.1	171.45	134.938	69.85	244.475	SAF 609	1309 EKTN9
SAF 22509 X 1.1/2	38.1	88.9	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22509 X 1.1/2 T	38.1	153.988	112.713	57.15	209.55	SAF 509	22209 EK
SAF 22609 X 1.1/2	38.1	106.363	134.938	69.85	244.475	SAF 609	22309 EK
SAF 22609 X 1.1/2 T	38.1	171.45	134.938	69.85	244.475	SAF 609	22309 EK
SAF 1510 X 1.5/8	41.275	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510 X 1.5/8 T	41.275	165.1	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1610 X 1.5/8	41.275	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610 X 1.5/8 T	41.275	190.5	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 22510 X 1.5/8	41.275	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510 X 1.5/8 T	41.275	165.1	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22610 X 1.5/8	41.275	115.888	147.638	76.2	269.875	SAF 610	22310 EK
SAF 22610 X 1.5/8 T	41.275	190.5	147.638	76.2	269.875	SAF 610	22310 EK
SAF 1510	42.863	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510 T	42.863	165.1	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1510-210	42.863	89.297	121.841	63.5	209.55	SAF 510	1210 EKTN9
SAF 1610	42.863	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610 T	42.863	190.5	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 1610-210	42.863	115.888	147.638	76.2	269.875	SAF 610	1310 EKTN9
SAF 22510	42.863	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510 T	42.863	165.1	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22510-210	42.863	89.297	121.841	63.5	209.55	SAF 510	22210 EK
SAF 22610	42.863	115.888	147.638	76.2	269.875	SAF 610	22310 EK
SAF 1511	49.213	98.425	133.35	69.85	244.475	SAF 511	1211 EKTN9
SAF 1511 T	49.213	171.45	133.35	69.85	244.475	SAF 511	1211 EKTN9
SAF 1511-210	49.213	98.425	133.35	69.85	244.475	SAF 511	1211 EKTN9
SAF 1611	49.213	123.825	157.163	82.55	279.4	SAF 611	1311 EKTN9
SAF 1611 T	49.213	196.85	157.163	82.55	279.4	SAF 611	1311 EKTN9
SAF 1611-210	49.213	123.825	157.163	82.55	279.4	SAF 611	1311 EKTN9
SAF 22511	49.213	98.425	133.35	69.85	244.475	SAF 511	22211 EK
SAF 22511-210	49.213	98.425	133.35	69.85	244.475	SAF 511	22211 EK
SAF 22611	49.213	123.825	157.163	82.55	279.4	SAF 611	22311 EK
SAF 22611 T	49.213	196.85	157.163	82.55	279.4	SAF 611	22311 EK
SAF 22611-210	49.213	123.825	157.163	82.55	279.4	SAF 611	22311 EK
FSAF 1611 X 2	50.8	123.825	157.163	82.55	279.4	FSAF 611	1311 EKTN9
FSAF 1611 X 2 T	50.8	171.45	157.163	82.55	279.4	FSAF 611	1311 EKTN9
FSAF 22611 X 2	50.8	123.825	157.163	82.55	279.4	FSAF 611	22311 EK
FSAF 22611 X 2 T	50.8	196.85	157.163	82.55	279.4	FSAF 611	22311 EK
SAF 1511 X 2	50.8	98.425	133.35	69.85	244.475	SAF 511	1211 EKTN9
SAF 1511 X 2 T	50.8	171.45	133.35	69.85	244.475	SAF 511	1211 EKTN9
SAF 1611 X 2	50.8	123.825	157.163	82.55	279.4	SAF 611	1311 EKTN9
SAF 1611 X 2 T	50.8	196.85	157.163	82.55	279.4	SAF 611	1311 EKTN9
SAF 22511 X 2	50.8	98.425	133.35	69.85	244.475	SAF 511	22211 EK
SAF 22511 X 2 T	50.8	171.45	133.35	69.85	244.475	SAF 511	22211 EK
SAF 22611 X 2	50.8	123.825	157.163	82.55	279.4	SAF 611	22311 EK
SAF 22611 X 2 T	50.8	196.85	157.163	82.55	279.4	SAF 611	22311 EK
FSAF 1613 X 2.1/8	53.975	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 X 2.1/8 T	53.975	209.55	167.481	88.9	330.2	FSAF 613	1313 EKTN9
FSAF 1613 X 2.1/8 TLC	53.975	134.938	167.481	88.9	330.2	FSAF 613	1313 EKTN9
