Imperial Single Row-1

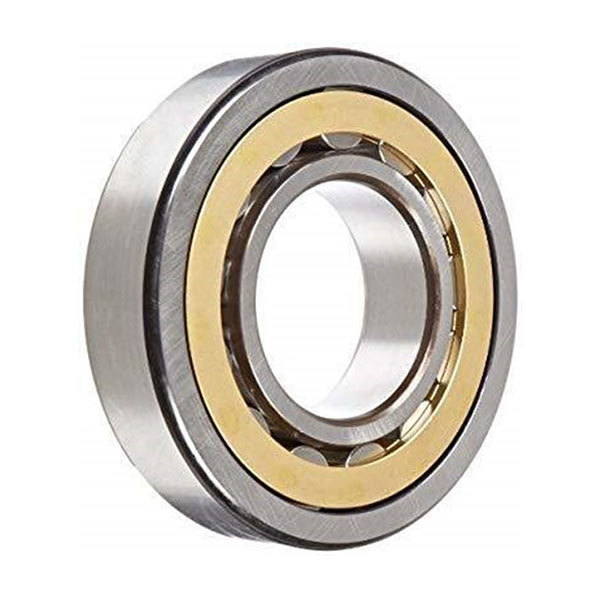

Single row cylindrical roller bearings NF type has a single rib on the outer ring, and two ribs on the inner ring.Can receive single direction axial loads.

Much like the NJ bearing, these bearings possess some thrust load capability.

Bearing Number	d mm	D mm	B mm
NNF618-1LSV/YA1	90	190	110
NF202	15	35	11
NF203	17	40	12
NF204	20	47	14
NF304	20	52	15
NF205	25	52	15
NF305	25	62	17
NF2305	25	62	24
NF206	30	62	16
NF306	30	72	19
NF2306	30	72	27
NF207	35	72	17
NF307	35	80	21
NF2307	35	80	31
NF208	40	80	18
NF308	40	90	23
NF2308	40	90	33
NF209	45	85	19
NF309	45	100	25
NF2309	45	100	36
NF210	50	90	20
NF310	50	110	27
NF2310	50	110	40
NF211	55	100	21
NF311	55	120	29
NF2311	55	120	43
NF212	60	110	22
NF312	60	130	31
NF2312	60	130	46
NF213	65	120	23
NF313	65	140	33
NF2313	65	140	48
NF214	70	125	24
NF314	70	150	35
NF2314	70	150	51
NF215	75	130	25
NF315	75	160	37
NF2315	75	160	55
NF216	80	140	26
NF316	80	170	39
NF2316	80	170	58
NF217	85	150	28
NF317	85	180	41
NF2317	85	180	60
NF218	90	160	30
NF318	90	190	43
NF2318	90	190	64
NF219	95	170	32
NF319	95	200	45
NF2319	95	200	67
NF220	100	180	34
NF320	100	215	47
NF2320	100	215
