Imperial Single Row-1

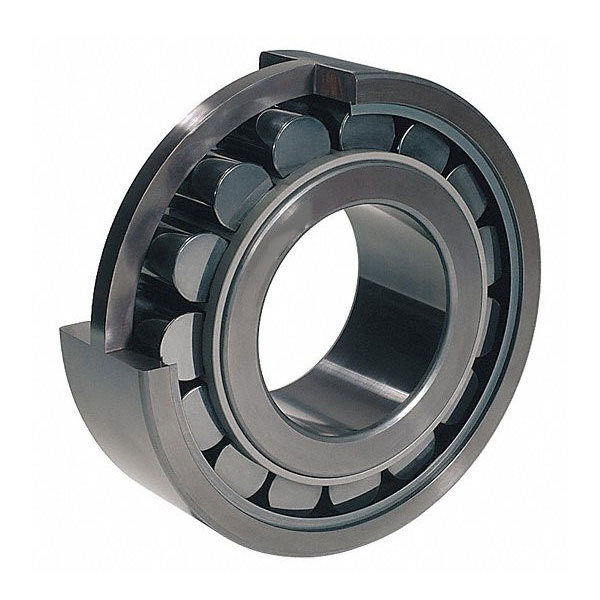

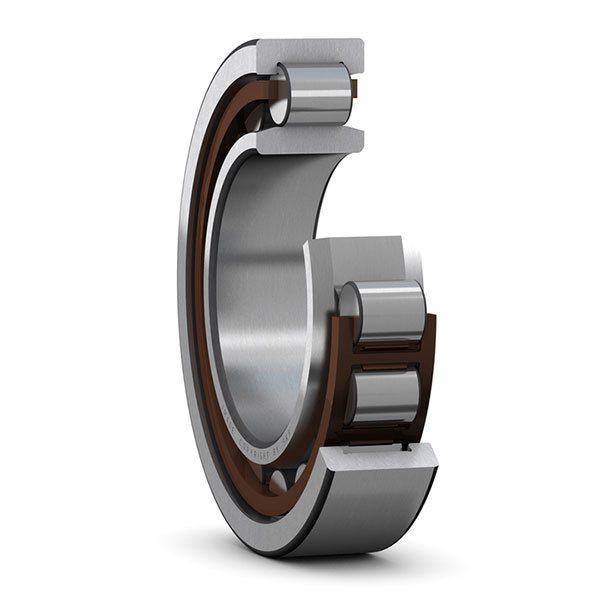

NU Series are non-locating, single row Cylindrical Roller Bearings with cage. The inner ring is separable and without flanges on their side of the roller which slides in both directions and is commonly found in motors.

To meet the various needs, cages are made from three different materials:Polyamide(ECP),Steel(ECJ), Brass(ECM).

Bearing Number	d mm	D mm	B mm
NU205	25	52	15
NU206	30	62	16
NU207	35	72	17
NU208	40	80	18
NU209	45	85	19
NU210	50	90	20
NU211	55	100	21
NU212	60	110	22
NU213	65	120	23
NU214	70	125	24
NU215	75	130	25
NU216	80	140	26
NU217	85	150	28
NU218	90	160	30
NU219	95	170	32
NU220	100	180	34
NU221	105	190	36
NU222	110	200	38
NU224	120	215	40
NU226	130	230	40
NU305	25	62	17
NU306	30	72	19
NU307	35	80	21
NU308	40	90	23
NU309	45	100	25
NU310	50	110	27
NU311	55	120	29
NU312	60	130	31
NU313	65	140	33
NU314	70	150	35
NU315	75	160	37
NU316	80	170	39
NU317	85	180	41
NU318	90	190	43
NU319	95	200	45
NU320	100	215	47
NU321	105	225	49
NU322	110	240	50
NU324	120	260	55
NU326	130	280	58
