Imperial Single Row-1

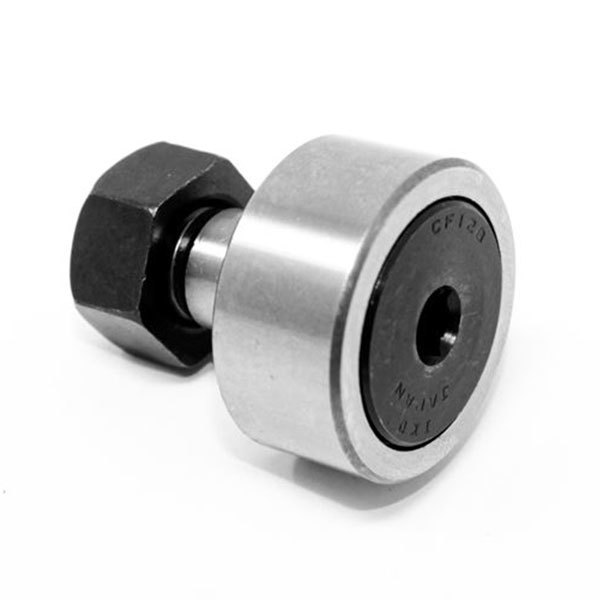

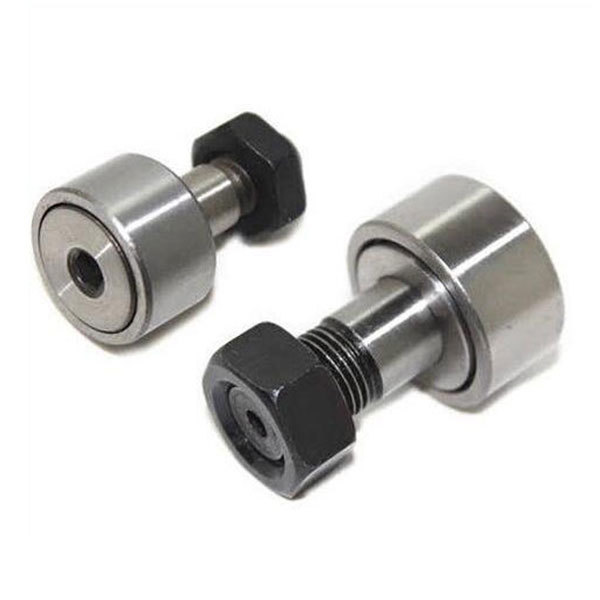

Cam Follower - CF Series, this model is an economical Cam Follow having a driver groove or hexagon socket in the stud head. The all-stainless steel type is optimal for clean room applications since it does not develop rust from external atmosphere and generates little dust.

Shield type		Sealed type		Dimensions (mm)				Mass
With crowned outer ring	With cylindrical outer ring	With crowned outer ring	With cylindrical outer ring	D	C	d1	G	g
CF 3 BR	CF 3 B	CF 3 BUUR	CF 3 BUU	10	7	3	M 3*0.5	4.3
CF 4 BR	CF 4 B	CF 4 BUUR	CF 4 BUU	12	8	4	M 4*0.7	7.4
CF 5 BR	CF 5 B	CF 5 BUUR	CF 5 BUU	13	9	5	M 5*0.8	10.3
CF 6 BR	CF 6 B	CF 6 BUUR	CF 6 BUU	16	11	6	M 6*1	18.5
CF 8 BR	CF 8 B	CF 8 BUUR	CF 8 BUU	19	11	8	M 8*1.25	28.5
CF 10 BR	CF 10 B	CF 10 BUUR	CF 10 BUU	22	12	10	M10*1.25	45
CF 10-1 BR	CF 10-1 B	CF 10 BUUR	CF 10-1 BUU	26	12	10	M10*1.25	60
CF 12 BR	CF 12 B	CF 12 BUUR	CF 12 BUU	30	14	12	M12*1.5	95
CF 12-1 BR	CF 12-1 B	CF 12-1 BUUR	CF 12-1 BUU	32	14	12	M12*1.5	105
CF 16 BR	CF 16 B	CF 16 BUUR	CF 16 BUU	35	18	16	M16*1.5	170
CF 18 BR	CF 18 B	CF 18 BUUR	CF 18 BUU	40	20	18	M18*1.5	250
CF 20 BR	CF 20 B	CF 20 BUUR	CF 20 BUU	52	24	20	M20*1.5	460
CF 20-1 BR	CF 20-1 B	CF 20-1 BUUR	CF 20-1 BUU	47	24	20	M20*1.5	385
CF 24 BR	CF 24 B	CF 24 BUUR	CF 24 BUU	62	29	24	M24*1.5	815
CF 24-1 BR	CF 24-1 B	CF 24-1 BUUR	CF 24-1 BUU	72	29	24	M24*1.5	1140
CF 30 BR	CF 30 B	CF 30 BUUR	CF 30 BUU	80	35	30	M30*1.5	1870
CF 30-1 BR	CF 30-1 B	CF 30-1 BUUR	CF 30-1 BUU	85	35	30	M30*1.5	2030
CF 30-2 BR	CF 30-2 B	CF 30-2 BUUR	CF 30-2 BUU	90	35	30	M30*1.5	2220
