Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

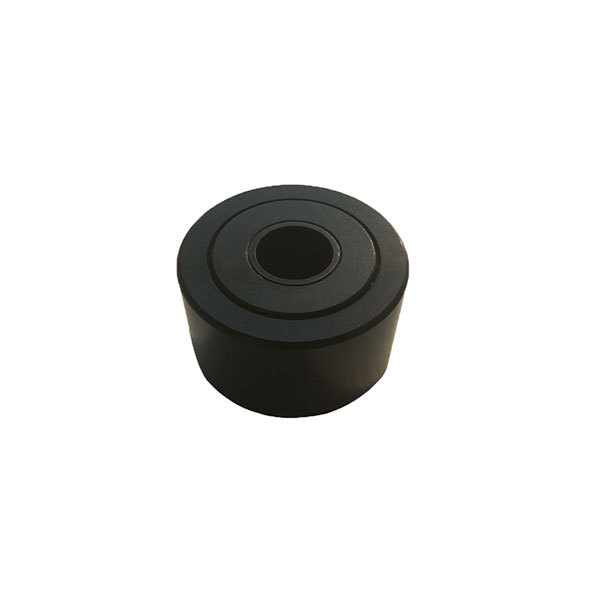

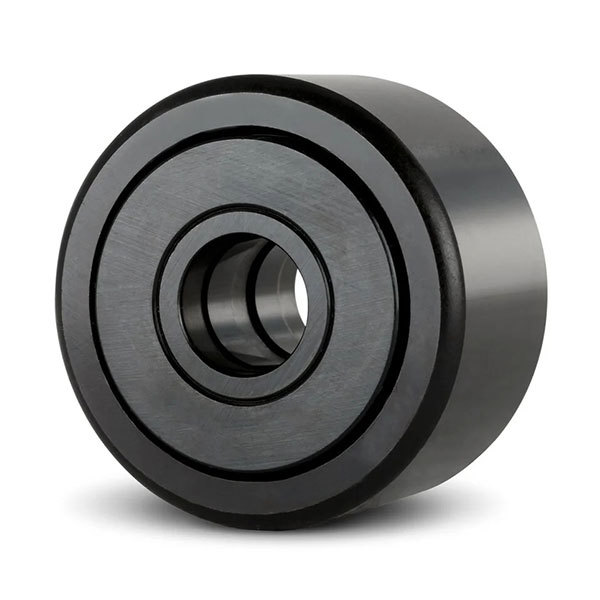

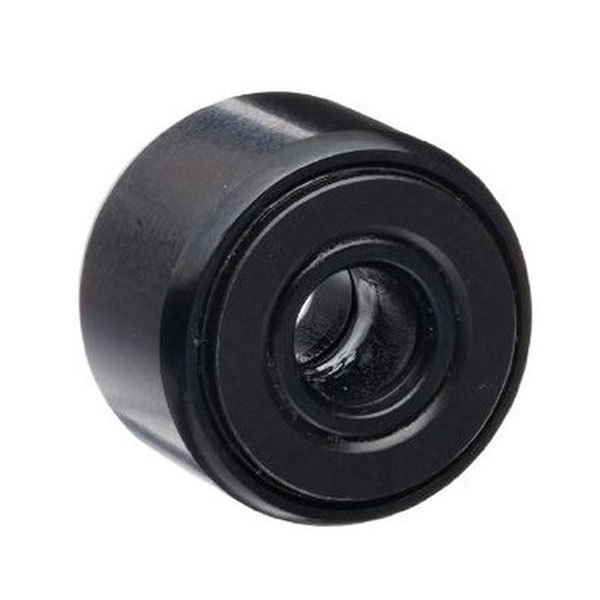

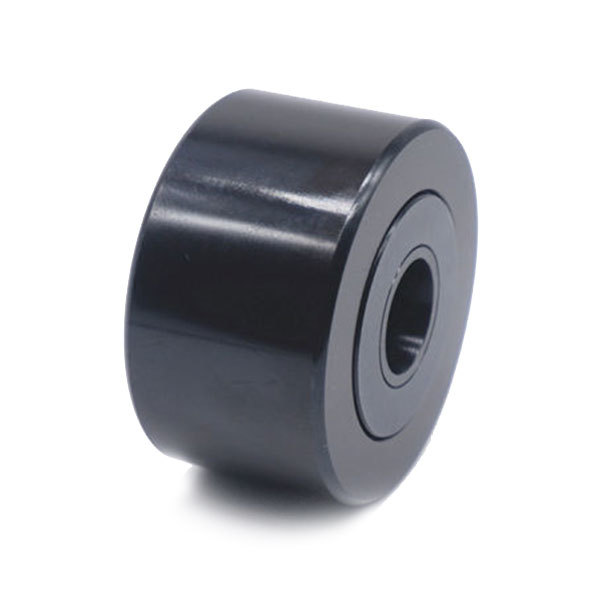

CRY series bearings have thick-walled outer rings, quenched at high temperature and high nitrogen, and the rollers of high-precision sorting are guided by the ribs of the high-rigidity outer ring. Using linear contact, the rollers can easily rotate directly on the raceway, and can withstand huge load.
| Bearing Number | Dimensions mm | Weight g | |
| Without seal | With seal | ||
| CRY12V | CRY12VUU | 6.35X19.05X14.287 | 27 |
| CRY14V | CRY14VUU | 6.35X22.225X14.287 | 36 |
| CRY16V | CRY16VUU | 7.938X25.4X17.462 | 68 |
| CRY18V | CRY18VUU | 7.938X28.575X17.462 | 77 |
| CRY20V | CRY20VUU | 9.525X31.75X20.637 | 109 |
| CRY22V | CRY22VUU | 9.525X34.925X20.637 | 136 |
| CRY24V | CRY24VUU | 11.112X38.1X23.812 | 186 |
| CRY26V | CRY26VUU | 11.112X41.275X23.812 | 227 |
| CRY28V | CRY28VUU | 12.7X44.45X26.987 | 290 |
| CRY30V | CRY30VUU | 12.7X47.625X26.987 | 363 |
| CRY32V | CRY32VUU | 15.875X50.8X33.337 | 476 |
| CRY36V | CRY36VUU | 15.875X57.15X33.337 | 599 |
| CRY40V | CRY40VUU | 19.05X63.5X39.687 | 816 |
| CRY44V | CRY44VUU | 1020 | |
| CRY48V | CRY48VUU | 25.4X76.2X46.038 | 1410 |
| CRY52V | CRY52VUU | 25.4X82.55X46.038 | 1640 |
| CRY56V | CRY56VUU | 28.575X88.9X52.387 | 2250 |
