Imperial Single Row-1

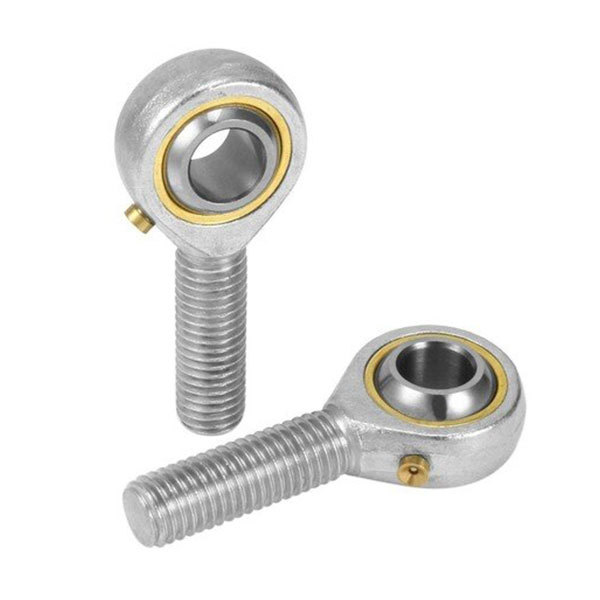

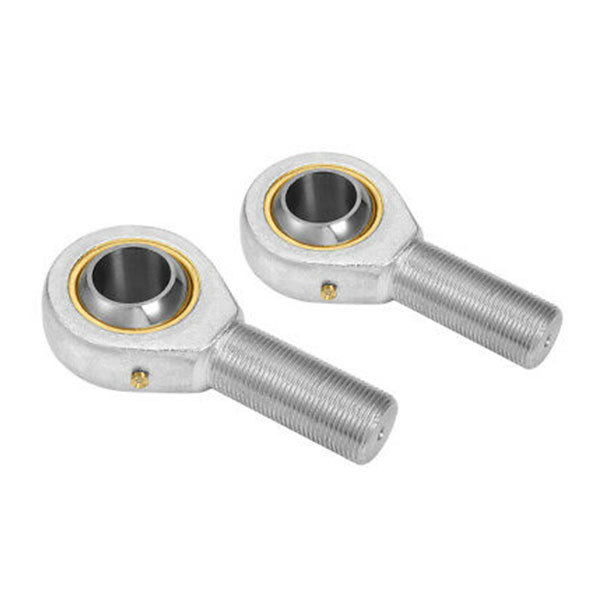

Rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points.

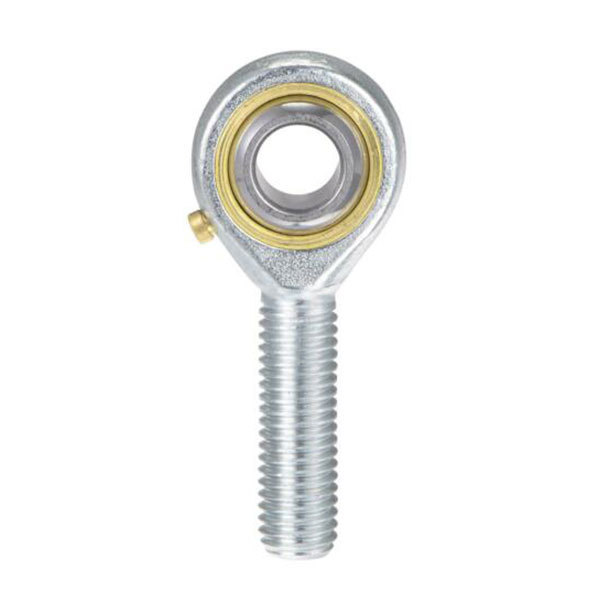

This model is a highly rigid rod end that is basically the same as the female threading type model PHS, but has a male thread on the holder end.
| Bearing Number | Dimensions (mm) | |||
| d | d3 | B | H | |
| POS5 | 5 | M5 | 8 | 33 |
| POS6 | 6 | M6 | 9 | 36 |
| POS8 | 8 | M8 | 12 | 42 |
| POS10 | 10 | M10 | 14 | 48 |
| POS12 | 12 | M12 | 16 | 54 |
| POS14 | 14 | M14 | 19 | 60 |
| POS16 | 16 | M16 | 21 | 66 |
| POS18 | 18 | M18X1.5 | 23 | 72 |
| POS20 | 20 | M20X1.5 | 25 | 78 |
| POS22 | 22 | M22X1.5 | 28 | 84 |
| POS25 | 25 | M24X2 | 31 | 94 |
| POS28 | 28 | M27X2 | 35 | 103 |
