Imperial Single Row-1
Keyword:
PHS
Category:
Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1
Highly rigid with superior abrasion and corrosion resistance.

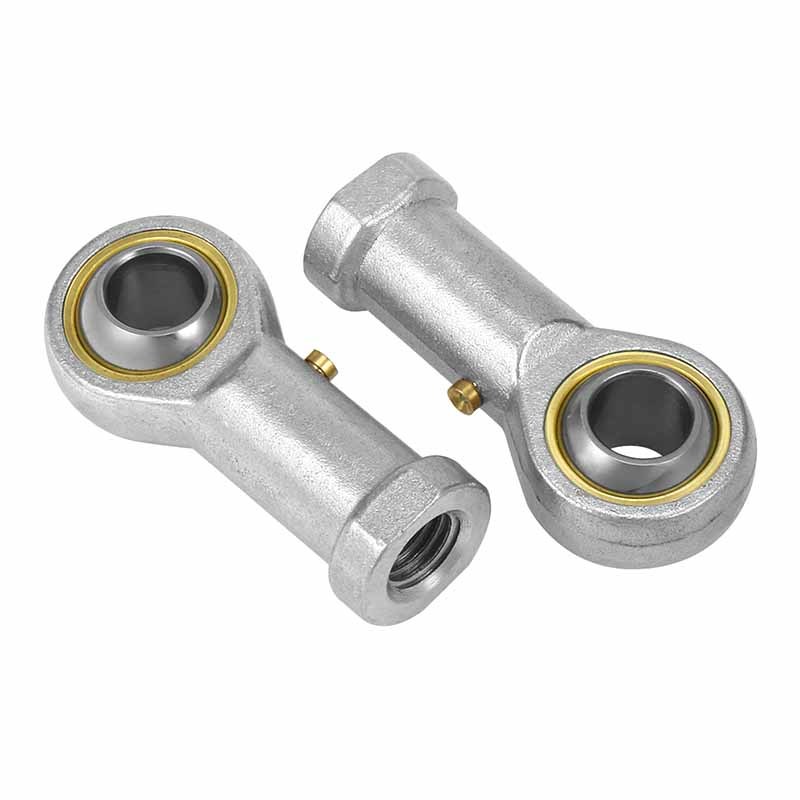

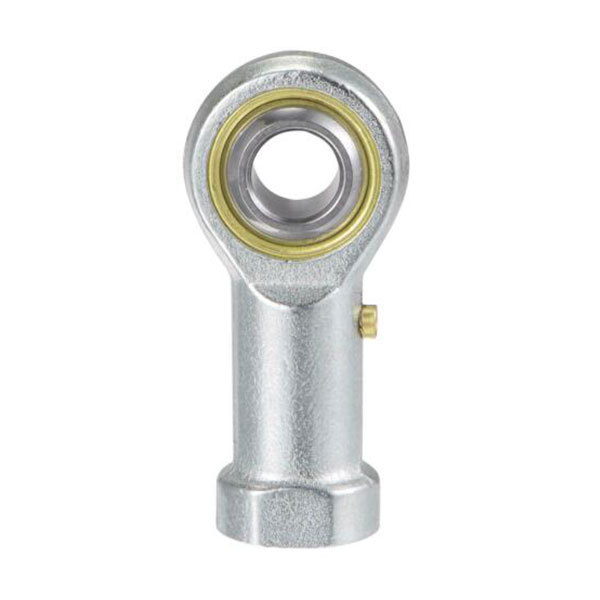

The correct amount of lubricant can be supplied to the sliding surface via the grease nipple attached to the holder.
| Bearing Number | Dimensions(mm) | |||||||||||
| d | d3 6H | B | C1 | W | L3 | d2 | L4 | h1 | L5 | d4 | d5 | |
| min | ||||||||||||
| PHS 4 | 4 | M4×0.7 | 7 | 5.25 | 8 | 8 | 14 | 31 | 24 | 4 | 8 | 9.5 |
| PHS 5 | 5 | M5×0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 |
| PHS 6 | 6 | M6×1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10 | 13 |
| PHS 8 | 8 | M8×1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 |
| PHS10 | 10 | M10×1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 |
| PHS 10-1 | 10 | M10×1.25 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 |
| PHS 12 | 12 | M12×1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 |
| PHS 12-1 | 12 | M12×1.25 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 |
| PHS 14 | 14 | M14×2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 |
| PHS 14-1 | 14 | M14×1.5 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 |
| PHS 16 | 16 | M16×2.0 | 21 | 15 | 22 | 28 | 40 | 84 | 64 | 8 | 22 | 27 |
| PHS 16-1 | 16 | M16×1.5 | 21 | 15 | 22 | 28 | 40 | 84 | 64 | 8 | 22 | 27 |
| PHS 18 | 18 | M18×1.5 | 23 | 16.5 | 27 | 32 | 44 | 93 | 71 | 10 | 25 | 31 |
| PHS 20 | 20 | M20×1.5 | 25 | 18 | 30 | 33 | 50 | 102 | 77 | 10 | 27.5 | 34 |
| PHS 22 | 22 | M22×1.5 | 28 | 20 | 32 | 37 | 54 | 111 | 84 | 12 | 30 | 38 |
| PHS 25 | 25 | M24×2.0 | 31 | 22 | 36 | 42 | 60 | 124 | 94 | 12 | 33.5 | 42 |
| PHS 28 | 28 | M27×2.0 | 35 | 24 | 41 | 48 | 66 | 136 | 103 | 14 | 37 | 46 |
| PHS 30 | 30 | M30×2.0 | 37 | 25 | 41 | 51 | 70 | 145 | 110 | 15 | 40 | 50 |
| PHS 30-1 | 30 | M27×2.0 | 37 | 25 | 41 | 51 | 70 | 145 | 110 | 15 | 40 | 50 |
