Imperial Single Row-1

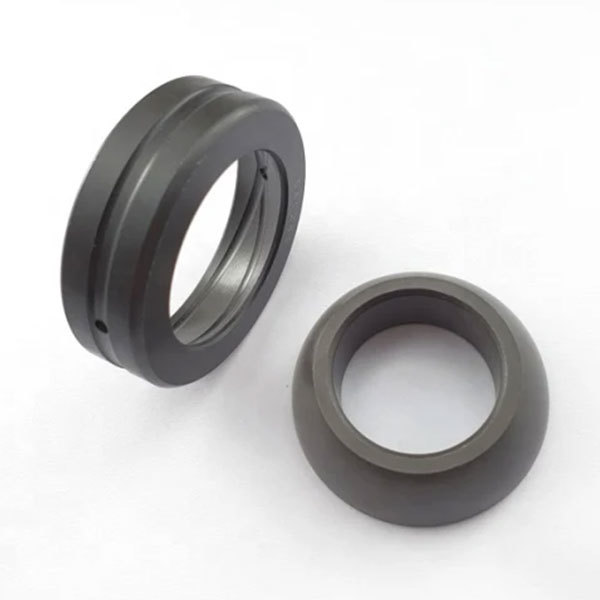

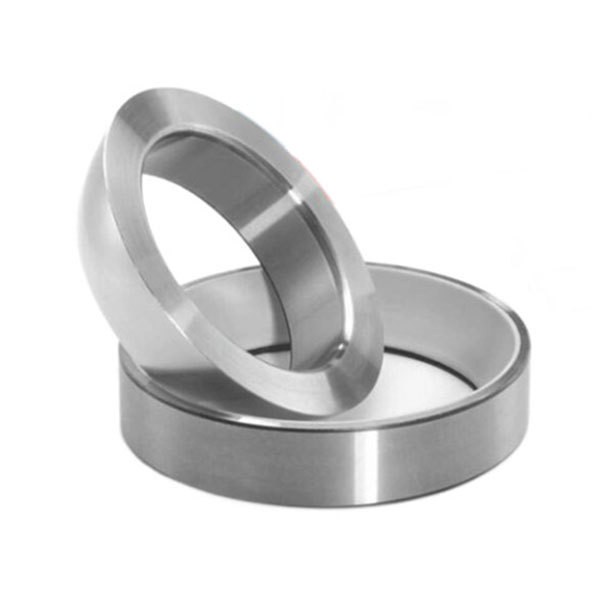

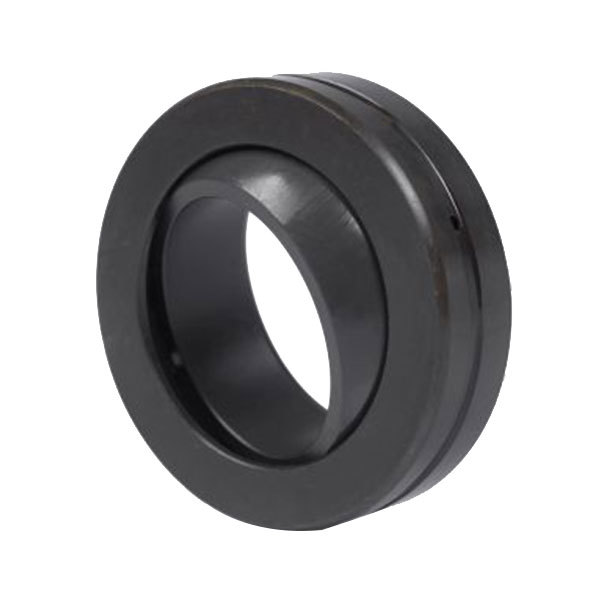

Angular contact spherical plain bearings are well suited for accommodating combined (radial and axial) loads, and misalignment and deformation of surrounding components.

Single angular contact spherical plain bearings can accommodate axial loads acting in one direction.

Bearing Number	Dimensions(mm)
Bearing Number	d	D	B	C
GAC25F	25	47	15	14
GAC28F	28	52	16	15
GAC30F	30	55	17	15
GAC32F	32	58	17	16
GAC35F	35	62	18	16
GAC40F	40	68	19	17
GAC45F	45	75	20	18
GAC50F	50	80	20	19
GAC55F	55	90	23	20
GAC60F	60	95	23	21
GAC65F	65	100	23	22
GAC70F	70	110	25	23
GAC75F	75	115	25	24
GAC80F	80	125	29	25.5
GAC85F	85	130	29	26.5
GAC90F	90	140	32	28
GAC95F	95	145	32	29.5
GAC100F	100	150	32	31
GAC105F	105	160	35	32.5
GAC110F	110	170	38	34
GAC120F	120	180	38	37
GAC130F	130	200	45	43
GAC140F	140	210	45	43
GAC150F	150	225	48	46
GAC160F	160	240	51	49
GAC170F	170	260	57	55
GAC180F	180	280	64	61
GAC190F	190	290	64	62
GAC200F	200	310	70	66
GAC25T	25	47	15	14
GAC28T	28	52	16	15
GAC30T	30	55	17	15
GAC32T	32	58	17	16
GAC35T	35	62	18	16
GAC40T	40	68	19	17
GAC45T	45	75	20	18
GAC50T	50	80	20	19
GAC55T	55	90	23	20
GAC60T	60	95	23	21
GAC65T	65	100	23	22
GAC70T	70	110	25	23
GAC75T	75	115	25	24
GAC80T	80	125	29	25.5
GAC85T	85	130	29	26.5
GAC90T	90	140	32	28
GAC95T	95	145	32	29.5
GAC100T	100	150	32	31
GAC105T	105	160	35	32.5
GAC110T	110	170	38	34
GAC120T	120	180	38	37
GAC130T	130	200	45	43
GAC140T	140	210	45	43
GAC150T	150	225	48	46
GAC160T	160	240	51	49
GAC170T	170	260	57	55
GAC180T	180	280	64	61
GAC190T	190	290	64	62
GAC200T	200	310	70	66
GAC20S	20	41	12	11
GAC25S	25	47	15	14
GAC28S	28	52	16	15
GAC30S	30	55	17	15
GAC32S	32	58	17	16
GAC35S	35	62	18	16
GAC40S	40	68	19	17
GAC45S	45	75	20	18
GAC50S	50	80	20	19
GAC55S	55	90	23	20
GAC60S	60	95	23	21
GAC65S	65	100	23	22
GAC70S	70	110	25	23
GAC75S	75	115	25	24
GAC80S	80	125	29	25.5
GAC85S	85	130	29	26.5
GAC90S	90	140	32	28
GAC95S	95	145	32	29.5
GAC100S	100	150	32	31
GAC105S	105	160	35	32.5
GAC110S	110	170	38	34
GAC120S	120	180	38	37
GAC130S	130	200	45	43
GAC140S	140	210	45	43
GAC150S	150	225	48	46
GAC160S	160	240	51	49
GAC170S	170	260	57	55
GAC180S	180	280	64	61
GAC190S	190	290	64	62
GAC200S	200	310	70	66
