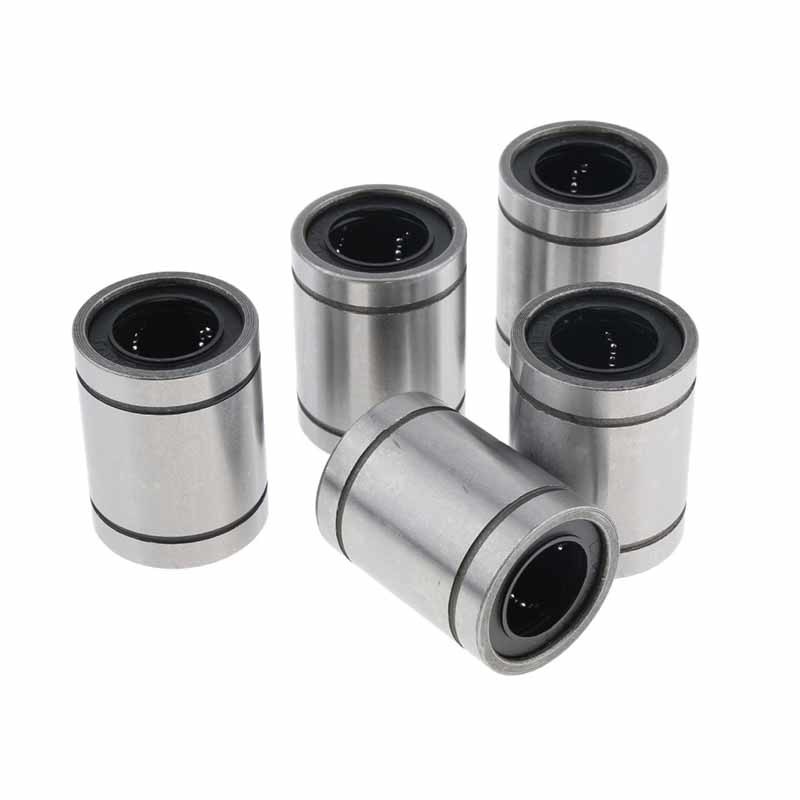

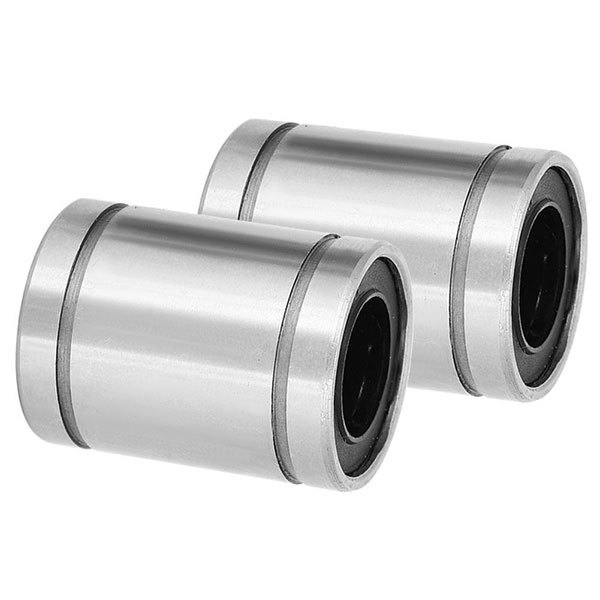

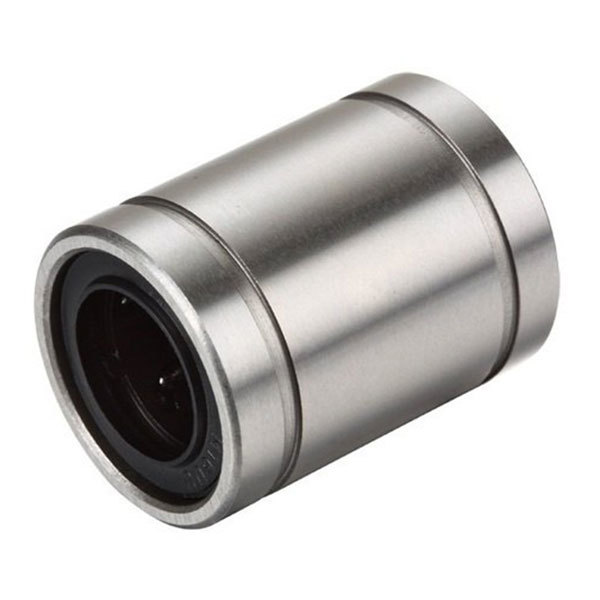

LM.UU (Standard Type)
This type is a standard metric dimension series widely used in Asia and other countries.
A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease.
| Model Number | Dimensions(mm) | Basic load rating(N) | ||||
| d | D | L | Dynamic C | Static C0 | ||
| LM3 | LM3UU | 3 | 7 | 10 | 88.2 | 108 |
| LM4 | LM4UU | 4 | 8 | 12 | 88.2 | 127 |
| LM5 | LM5UU | 5 | 10 | 15 | 167 | 206 |
| LM6 | LM6UU | 6 | 12 | 19 | 206 | 265 |
| LM8S | LM8SUU | 8 | 15 | 17 | 176 | 225 |
| LM8 | LM8UU | 8 | 15 | 24 | 265 | 402 |
| LM10 | LM10UU | 10 | 19 | 29 | 373 | 549 |
| LM12 | LM12UU | 12 | 21 | 30 | 412 | 598 |
| LM16 | LM16UU | 16 | 28 | 37 | 775 | 1180 |
| LM20 | LM20UU | 20 | 32 | 42 | 863 | 1370 |
| LM25 | LM25UU | 25 | 40 | 59 | 980 | 1570 |
| LM30 | LM30UU | 30 | 45 | 64 | 1570 | 2750 |
| LM35 | LM35UU | 35 | 52 | 70 | 1670 | 3140 |
| LM40 | LM40UU | 40 | 60 | 80 | 2160 | 4020 |
| LM50 | LM50UU | 50 | 80 | 100 | 3820 | 7940 |
| LM60 | LM60UU | 60 | 90 | 110 | 4710 | 10000 |
