Imperial Single Row-1

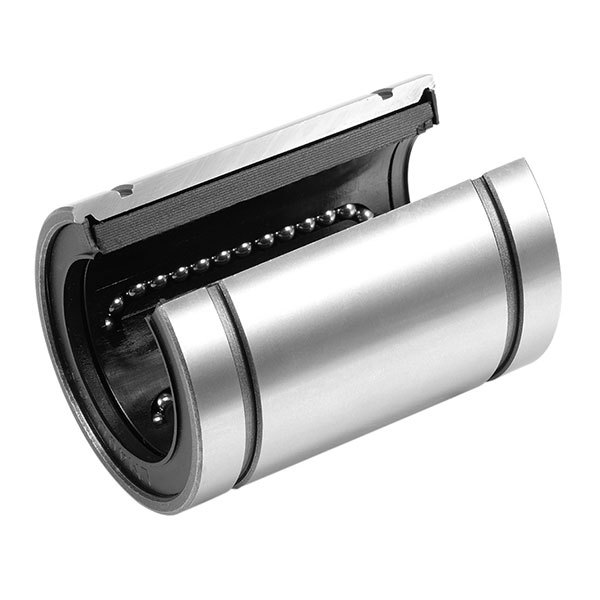

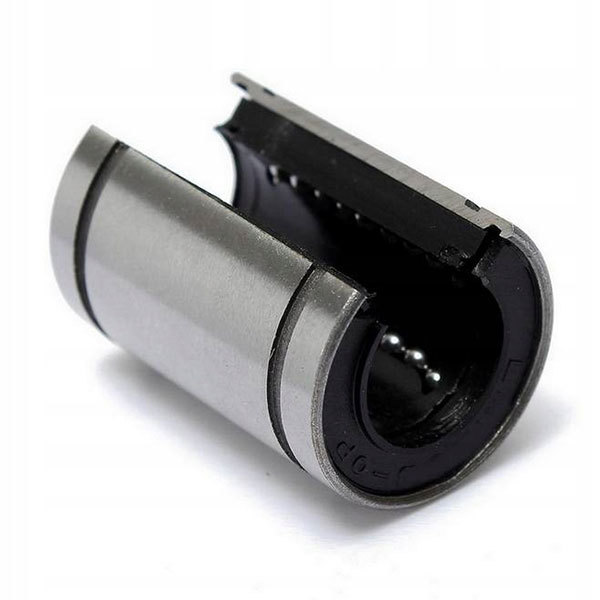

LM.OP (Open Type)
The bearing is partially cut open by one row of balls (50゜to 80゜).
This enables the Linear Bearing to be used even in locations where the LM shaft is supported by a column or fulcrum.
In addition, a clearance can easily be adjusted.
| Bearing Number | d(mm) | D(mm) | L(mm) |
| LM6OP | 6 | 12 | 19 |
| LM8OP | 8 | 15 | 24 |
| LM10OP | 10 | 19 | 29 |
| LM12OP | 12 | 21 | 30 |
| LM13OP | 13 | 23 | 32 |
| LM16OP | 16 | 28 | 37 |
| LM20OP | 20 | 32 | 42 |
| LM25OP | 25 | 40 | 59 |
| LM30OP | 30 | 45 | 64 |
| LM35OP | 35 | 52 | 70 |
| LM40OP | 40 | 60 | 80 |
| LM50OP | 50 | 75 | 100 |
| LM60OP | 60 | 90 | 110 |
| LM80OP | 80 | 120 | 140 |
