Imperial Single Row-1
Shuanglong agricultural bearings will keep your equipment in line. We work with the top manufacturers to offer agricultural radial ball bearings, agricultural disc harrow bearings and agricultural tapered bearings that provide tight, efficient control over machine operations.

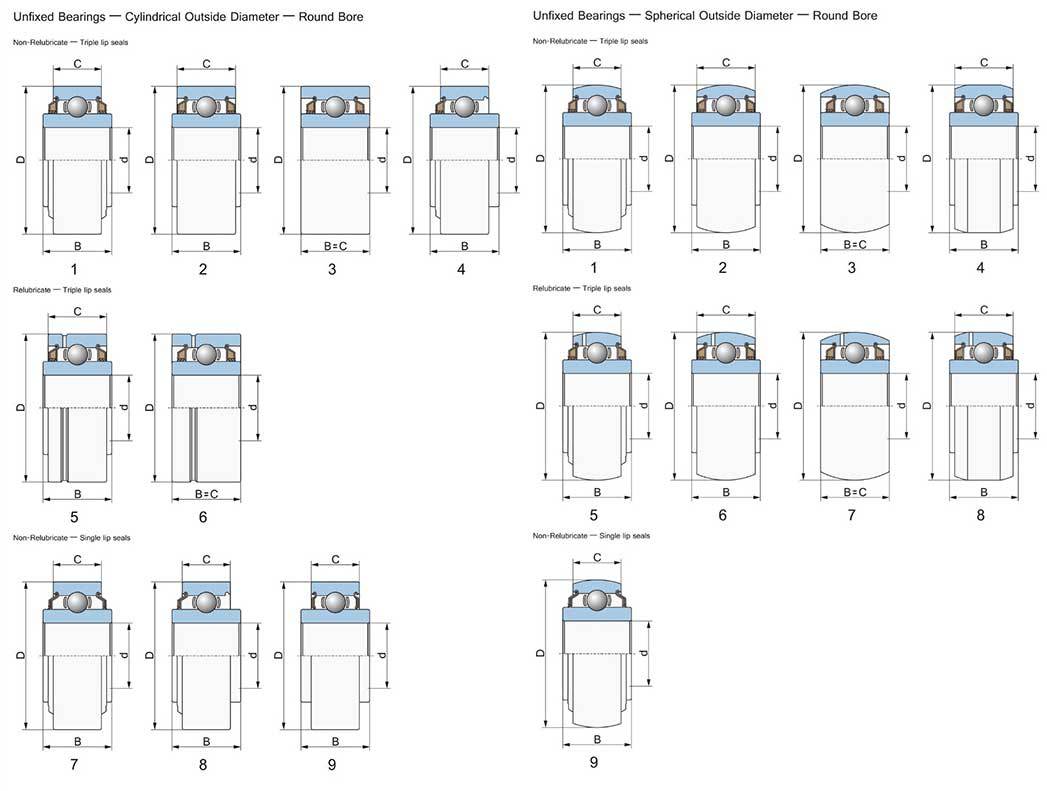

Round Bore Cylindrical /Spherical O.D. Disc Harrow Bearings:
| Round bore | |||||
| Bearing Number | Type | d mm | D mm | B mm | C mm |
| 203KRR5 | Cylinfrical | 13.081 | 47.000 | 18.288 | 12.000 |
| 203KRR2 | Cylinfrical | 16.256 | 47.000 | 18.288 | 12.000 |
| 203KRR6 | Cylinfrical | 16.256 | 47.000 | 18.288 | 12.000 |
| 203KRR7 | Cylinfrical | 17.000 | 47.000 | 16.612 | 12.000 |
| 203PP8 | Cylinfrical | 12.964 | 52.000 | 34.925 | 15.000 |
| 205KRR6 | Cylinfrical | 13.081 | 52.000 | 34.925 | 15.000 |
| 205PP10 | Cylinfrical | 16.000 | 52.000 | 34.925 | 15.000 |
| 205PP12* | Cylinfrical | 16.129 | 52.000 | 38.100 | 15.000 |
| 205PP9 | Cylinfrical | 19.202 | 52.000 | 34.925 | 15.000 |
| 205PP11 | Cylinfrical | 25.400 | 52.000 | 30.175 | 15.000 |
| 206KP2 | Cylinfrical | 30.000 | 62.000 | 24.000 | 16.000 |
| 206KRR8 | Cylinfrical | 30.000 | 62.000 | 24.000 | 17.000 |
| 206KR7 | Cylinfrical | 30.000 | 62.000 | 24.000 | 16.000 |
| 207KRR14 | Cylinfrical | 31.826 | 72.000 | 25.000 | 17.000 |
| 207KRR3 | Cylinfrical | 35.000 | 72.000 | 25.000 | 17.000 |
| W208PP10 | Cylinfrical | 38.113 | 80.000 | 42.875 | 21.000 |
| W208PP2 | Cylinfrical | 38.113 | 80.000 | 42.875 | 30.175 |
| 208KRR4 | Cylinfrical | 38.892 | 80.000 | 27.508 | 21.000 |
| 208KR4 | Cylinfrical | 38.892 | 80.000 | 27.508 | 21.000 |
| 208KRR2 | Cylinfrical | 40.000 | 80.000 | 27.000 | 21.000 |
| 209KRR3 | Cylinfrical | 45.000 | 85.000 | 27.000 | 21.000 |
| GW210PP3 | Cylinfrical | 35.725 | 90.000 | 27.000 | 30.175 |
| W210PP8 | Cylinfrical | 38.862 | 90.000 | 27.000 | 30.175 |
| W210PP2 | Cylinfrical | 49.225 | 90.000 | 30.175 | 30.175 |
| GW210PP9 | Cylinfrical | 49.403 | 90.000 | 30.175 | 23.000 |
| 210KRR2 | Cylinfrical | 50.000 | 90.000 | 30.175 | 22.000 |
| GW211PP4 | Cylinfrical | 42.164 | 100.000 | 36.525 | 33.325 |
| GW211PP37 | Cylinfrical | 45.212 | 100.000 | 30.000 | 33.325 |
| W211PP2 | Cylinfrical | 55.575 | 100.000 | 33.325 | 33.325 |
| GW211PP2 | Cylinfrical | 55.575 | 100.000 | 44.450 | 33.325 |
| GW214PP3 | Cylinfrical | 68.278 | 125.000 | 33.325 | 39.675 |
| W214PP2 | Cylinfrical | 70.000 | 125.000 | 33.325 | 39.675 |
| GW214PP2 | Cylinfrical | 70.000 | 125.000 | 68.275 | 39.675 |
| W315PP2 | Cylinfrical | 76.372 | 160.000 | 39.675 | 67.770 |
| 205PPB7* | Spherical | 23.826 | 52.000 | 34.720 | 15.000 |
| G205PPB7* | Spherical | 23.826 | 52.000 | 34.720 | 15.000 |
| 206KRRB9 | Spherical | 25.413 | 62.000 | 24.000 | 16.000 |
| 206KRRB3 | Spherical | 28.588 | 62.000 | 24.000 | 16.000 |
| 207KRRB10 | Spherical | 31.763 | 72.000 | 27.000 | 17.000 |
| W208PPB7 | Spherical | 30.175 | 80.000 | 30.175 | 18.000 |
| W208PPB4 | Spherical | 30.175 | 80.000 | 30.175 | 30.175 |
| 208PPB5 | Spherical | 36.525 | 80.000 | 22.000 | 22.000 |
| W208PPB10 | Spherical | 38.113 | 80.000 | 42.875 | 21.000 |
| W208PPB2 | Spherical | 38.113 | 80.000 | 42.875 | 18.000 |
| W208PPB23 | Spherical | 38.113 | 80.000 | 42.875 | 30.175 |
| W209PPB4 | Spherical | 39.000 | 85.000 | 30.175 | 30.175 |
| GW209PPB4 | Spherical | 39.000 | 85.000 | 30.175 | 30.175 |
| GW209PPB12 | Spherical | 44.831 | 85.000 | 42.850 | 22.000 |
| W209PPB10 | Spherical | 45.000 | 85.000 | 36.525 | 22.000 |
| W209PPB2 | Spherical | 45.000 | 85.000 | 30.175 | 30.175 |
| GW209PPB2 | Spherical | 45.000 | 85.000 | 30.175 | 30.175 |
| W209PPB11 | Spherical | 45.237 | 85.000 | 36.525 | 22.000 |
| GW209PPB11 | Spherical | 45.237 | 85.000 | 36.525 | 22.000 |
| GW210PPB3 | Spherical | 35.725 | 90.000 | 30.175 | 30.175 |
| W210PPB5 | Spherical | 45.339 | 90.000 | 30.175 | 30.175 |
| GW210PPB5 | Spherical | 45.339 | 90.000 | 30.175 | 30.175 |
| W210PPB2 | Spherical | 49.225 | 90.000 | 30.175 | 30.175 |
| GW210PPB2 | Spherical | 49.225 | 90.000 | 30.175 | 30.175 |
| W210PPB9 | Spherical | 49.400 | 90.000 | 36.525 | 23.000 |
| GW211PPB4 | Spherical | 42.160 | 100.000 | 33.325 | 33.325 |
| GW211PPB13 | Spherical | 45.339 | 100.000 | 33.325 | 25.000 |
| GW211PPB10 | Spherical | 49.225 | 100.000 | 33.325 | 33.325 |
| GW211PPB14 | Spherical | 51.181 | 100.000 | 33.325 | 25.000 |
| W211PPB2 | Spherical | 55.575 | 100.000 | 33.325 | 33.325 |
| W211PPB4 | Spherical | 55.575 | 100.000 | 55.500 | 33.325 |
| GW211PPB8 | Spherical | 55.575 | 100.000 | 33.325 | 25.000 |
| GW211PPB2 | Spherical | 55.575 | 100.000 | 33.325 | 33.325 |
| GW211PPB9 | Spherical | 55.753 | 100.000 | 39.675 | 25.000 |
| GW211PPB21 | Spherical | 45.340 | 101.067 | 53.980 | 33.909 |
| GW214PPB3 | Spherical | 49.225 | 125.000 | 39.675 | 39.675 |
| GW214PPB6 | Spherical | 68.278 | 125.000 | 68.263 | 28.000 |
| W214PPB2 | Spherical | 70.000 | 125.000 | 39.675 | 39.675 |
| GW214PPB5 | Spherical | 70.000 | 125.000 | 61.925 | 39.675 |
| GW214PPB2 | Spherical | 70.000 | 125.000 | 39.675 | 39.675 |
| W214PPB9 | Spherical | 70.256 | 125.000 | 44.500 | 28.000 |
| GW214PPB9 | Spherical | 70.256 | 125.000 | 44.500 | 28.000 |
| GW216PPB3 | Spherical | 76.450 | 140.000 | 63.500 | 30.000 |
