Reali Slim Thin Section Metric Bearings
Category:
Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

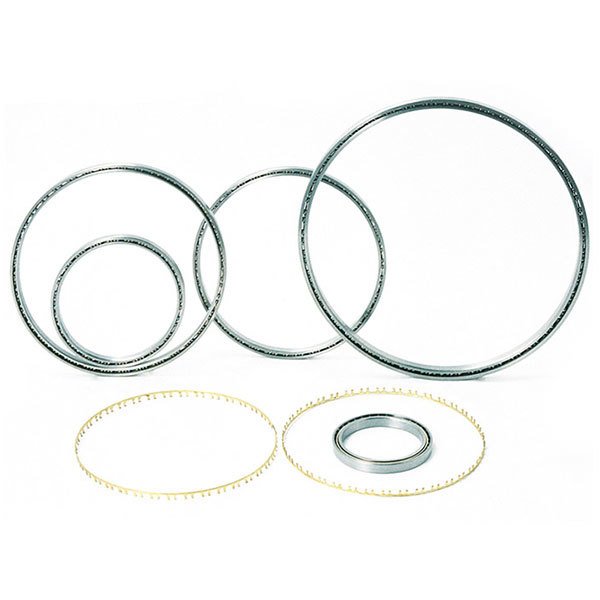

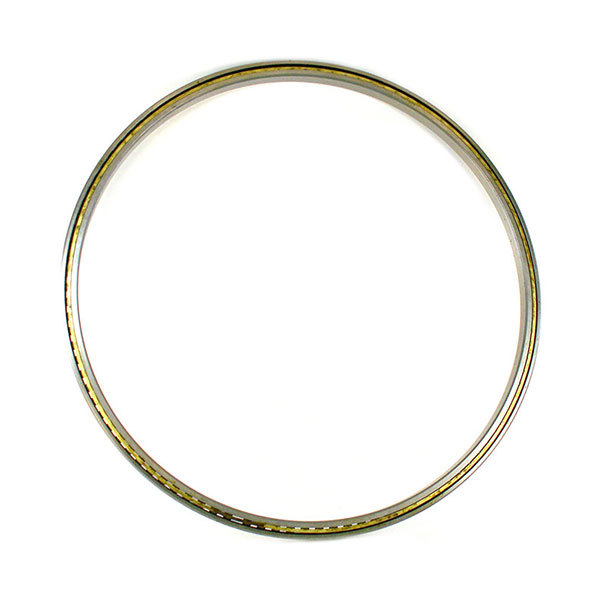

The cross-section remains constant even in the case of larger shaft and housing bore diameters, also described as constant section (CS) bearings. three configurations: angular contact bearings (Type A), Conrad assembled deep groove radial ball bearings (Type C), and four-point contact radial bearings (Type X).
| Product Number | BEARING TYPE | Bore Dia d | Outside Dia D | Width B | Seal Type |
| K02508AR0 | Angular | 25 mm | 41 mm | 8 mm | Open |
| K05008AR0 | Angular | 50 mm | 66 mm | 8 mm | Open |
| K06008AR0 | Angular | 60 mm | 76 mm | 8 mm | Open |
| K07008AR0 | Angular | 70 mm | 86 mm | 8 mm | Open |
| K08008AR0 | Angular | 80 mm | 96 mm | 8 mm | Open |
| K09008AR0 | Angular | 90 mm | 106 mm | 8 mm | Open |
| K10008AR0 | Angular | 100 mm | 116 mm | 8 mm | Open |
| K11008AR0 | Angular | 110 mm | 126 mm | 8 mm | Open |
| K12008AR0 | Angular | 120 mm | 136 mm | 8 mm | Open |
| K13008AR0 | Angular | 130 mm | 146 mm | 8 mm | Open |
| K14008AR0 | Angular | 140 mm | 156 mm | 8 mm | Open |
| K15008AR0 | Angular | 150 mm | 166 mm | 8 mm | Open |
| K16008AR0 | Angular | 160 mm | 176 mm | 8 mm | Open |
| K17008AR0 | Angular | 170 mm | 186 mm | 8 mm | Open |
| K18008AR0 | Angular | 180 mm | 196 mm | 8 mm | Open |
| K19008AR0 | Angular | 190 mm | 206 mm | 8 mm | Open |
| K20008AR0 | Angular | 200 mm | 216 mm | 8 mm | Open |
| K25008AR0 | Angular | 250 mm | 266 mm | 8 mm | Open |
| K30008AR0 | Angular | 300 mm | 316 mm | 8 mm | Open |
| K32008AR0 | Angular | 320 mm | 336 mm | 8 mm | Open |
| K34008AR0 | Angular | 340 mm | 356 mm | 8 mm | Open |
| K36008AR0 | Angular | 360 mm | 376 mm | 8 mm | Open |
| K02508CP0 | Radial | 25 mm | 41 mm | 8 mm | Open |
| K05008CP0 | Radial | 50 mm | 66 mm | 8 mm | Open |
| K06008CP0 | Radial | 60 mm | 76 mm | 8 mm | Open |
| K07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Open |
| K08008CP0 | Radial | 80 mm | 96 mm | 8 mm | Open |
| K09008CP0 | Radial | 90 mm | 106 mm | 8 mm | Open |
| K10008CP0 | Radial | 100 mm | 116 mm | 8 mm | Open |
| K11008CP0 | Radial | 110 mm | 126 mm | 8 mm | Open |
| K12008CP0 | Radial | 120 mm | 136 mm | 8 mm | Open |
| K13008CP0 | Radial | 130 mm | 146 mm | 8 mm | Open |
| K14008CP0 | Radial | 140 mm | 156 mm | 8 mm | Open |
| K15008CP0 | Radial | 150 mm | 166 mm | 8 mm | Open |
| K16008CP0 | Radial | 160 mm | 176 mm | 8 mm | Open |
| K17008CP0 | Radial | 170 mm | 186 mm | 8 mm | Open |
| K18008CP0 | Radial | 180 mm | 196 mm | 8 mm | Open |
| K19008CP0 | Radial | 190 mm | 206 mm | 8 mm | Open |
| K20008CP0 | Radial | 200 mm | 216 mm | 8 mm | Open |
| K25008CP0 | Radial | 250 mm | 266 mm | 8 mm | Open |
| K30008CP0 | Radial | 300 mm | 316 mm | 8 mm | Open |
| K32008CP0 | Radial | 320 mm | 336 mm | 8 mm | Open |
| K34008CP0 | Radial | 340 mm | 356 mm | 8 mm | Open |
| K36008CP0 | Radial | 360 mm | 376 mm | 8 mm | Open |
| K02508XP0 | Four Point | 25 mm | 41 mm | 8 mm | Open |
| K05008XP0 | Four Point | 50 mm | 66 mm | 8 mm | Open |
| K06008XP0 | Four Point | 60 mm | 76 mm | 8 mm | Open |
| K07008XP0 | Four Point | 70 mm | 86 mm | 8 mm | Open |
| K08008XP0 | Four Point | 80 mm | 96 mm | 8 mm | Open |
| K09008XP0 | Four Point | 90 mm | 106 mm | 8 mm | Open |
| K10008XP0 | Four Point | 100 mm | 116 mm | 8 mm | Open |
| K11008XP0 | Four Point | 110 mm | 126 mm | 8 mm | Open |
| K12008XP0 | Four Point | 120 mm | 136 mm | 8 mm | Open |
| K13008XP0 | Four Point | 130 mm | 146 mm | 8 mm | Open |
| K14008XP0 | Four Point | 140 mm | 156 mm | 8 mm | Open |
| K15008Xp0 | Four Point | 150 mm | 166 mm | 8 mm | Open |
| K16008XP0 | Four Point | 160 mm | 176 mm | 8 mm | Open |
| K17008XP0 | Four Point | 170 mm | 186 mm | 8 mm | Open |
| K18008XP0 | Four Point | 180 mm | 196 mm | 8 mm | Open |
| K19008XP0 | Four Point | 190 mm | 206 mm | 8 mm | Open |
| K20008XP0 | Four Point | 200 mm | 216 mm | 8 mm | Open |
| K25008XP0 | Four Point | 250 mm | 266 mm | 8 mm | Open |
| K30008XP0 | Four Point | 300 mm | 316 mm | 8 mm | Open |
| K32008XP0 | Four Point | 320 mm | 336 mm | 8 mm | Open |
| K34008XP0 | Four Point | 340 mm | 356 mm | 8 mm | Open |
| K36008XP0 | Four Point | 360 mm | 376 mm | 8 mm | Open |
| J02508CP0 | Radial | 25 mm | 41 mm | 8 mm | Sealed |
| J05008CP0 | Radial | 50 mm | 66 mm | 8 mm | Sealed |
| J06008CP0 | Radial | 60 mm | 76 mm | 8 mm | Sealed |
| J07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Sealed |
| J07008CP0 | Radial | 70 mm | 86 mm | 8 mm | Sealed |
| J08008CP0 | Radial | 80 mm | 96 mm | 8 mm | Sealed |
| J09008CP0 | Radial | 90 mm | 106 mm | 8 mm | Sealed |
| J10008CP0 | Radial | 100 mm | 116 mm | 8 mm | Sealed |
| J11008CP0 | Radial | 110 mm | 126 mm | 8 mm | Sealed |
| J12008CP0 | Radial | 120 mm | 136 mm | 8 mm | Sealed |
| J13008CP0 | Radial | 130 mm | 146 mm | 8 mm | Sealed |
| J14008CP0 | Radial | 140 mm | 156 mm | 8 mm | Sealed |
| J15008CP0 | Radial | 150 mm | 166 mm | 8 mm | Sealed |
| J16008CP0 | Radial | 160 mm | 176 mm | 8 mm | Sealed |
| J17008CP0 | Radial | 170 mm | 186 mm | 8 mm | Sealed |
| J02508XP0 | Four Point | 25 mm | 41 mm | 8 mm | Sealed |
| J05008XP0 | Four Point | 50 mm | 66 mm | 8 mm | Sealed |
| J06008XP0 | Four Point | 60 mm | 76 mm | 8 mm | Sealed |
| J07008XP0 | Four Point | 70 mm | 86 mm | 8 mm | Sealed |
| J08008XP0 | Four Point | 80 mm | 96 mm | 8 mm | Sealed |
| J09008XP0 | Four Point | 90 mm | 106 mm | 8 mm | Sealed |
| J10008XP0 | Four Point | 100 mm | 116 mm | 8 mm | Sealed |
| J11008XP0 | Four Point | 110 mm | 126 mm | 8 mm | Sealed |
| J12008XP0 | Four Point | 120 mm | 136 mm | 8 mm | Sealed |
| J13008XP0 | Four Point | 130 mm | 146 mm | 8 mm | Sealed |
| J14008XP0 | Four Point | 140 mm | 156 mm | 8 mm | Sealed |
| J15008XP0 | Four Point | 150 mm | 166 mm | 8 mm | Sealed |
| J16008XP0 | Four Point | 160 mm | 176 mm | 8 mm | Sealed |
| J17008XP0 | Four Point | 170 mm | 186 mm | 8 mm | Sealed |
| K02513AR0 | Angular | 25 mm | 51 mm | 13 mm | Open |
| K05013AR0 | Angular | 50 mm | 76 mm | 13 mm | Open |
| K06013AR0 | Angular | 60 mm | 86 mm | 13 mm | Open |
| K07013AR0 | Angular | 70 mm | 96 mm | 13 mm | Open |
| K08013AR0 | Angular | 80 mm | 106 mm | 13 mm | Open |
| K09013AR0 | Angular | 90 mm | 116 mm | 13 mm | Open |
| K10013AR0 | Angular | 100 mm | 126 mm | 13 mm | Open |
| K11013AR0 | Angular | 110 mm | 136 mm | 13 mm | Open |
| K12013AR0 | Angular | 120 mm | 146 mm | 13 mm | Open |
| K13013AR0 | Angular | 130 mm | 156 mm | 13 mm | Open |
| K14013AR0 | Angular | 140 mm | 166 mm | 13 mm | Open |
| K15013AR0 | Angular | 150 mm | 176 mm | 13 mm | Open |
| K16013AR0 | Angular | 160 mm | 186 mm | 13 mm | Open |
| K17013AR0 | Four Point | 170 mm | 196 mm | 13 mm | Open |
| K18013XP0 | Four Point | 180 mm | 206 mm | 13 mm | Open |
| K19013XP0 | Four Point | 190 mm | 216 mm | 13 mm | Open |
| K20013XP0 | Four Point | 200 mm | 226 mm | 13 mm | Open |
| K25013XP0 | Four Point | 250 mm | 276 mm | 13 mm | Open |
| K30013XP0 | Four Point | 300 mm | 326 mm | 13 mm | Open |
| K32013XP0 | Four Point | 320 mm | 346 mm | 13 mm | Open |
| K34013XP0 | Four Point | 340 mm | 366 mm | 13 mm | Open |
| K36013XP0 | Four Point | 360 mm | 386 mm | 13 mm | Open |
| K02520AR0 | Angular | 25 mm | 65 mm | 20 mm | Open |
| K05020AR0 | Angular | 50 mm | 90 mm | 20 mm | Open |
| K06020AR0 | Angular | 60 mm | 100 mm | 20 mm | Open |
| K07020AR0 | Angular | 70 mm | 110 mm | 20 mm | Open |
| K08020AR0 | Angular | 80 mm | 120 mm | 20 mm | Open |
| K09020AR0 | Angular | 90 mm | 130 mm | 20 mm | Open |
| K10020AR0 | Angular | 100 mm | 140 mm | 20 mm | Open |
| K11020AR0 | Angular | 110 mm | 150 mm | 20 mm | Open |
| K12020AR0 | Angular | 120 mm | 160 mm | 20 mm | Open |
| K13020AR0 | Angular | 130 mm | 170 mm | 20 mm | Open |
| K14020AR0 | Angular | 140 mm | 180 mm | 20 mm | Open |
| K15020AR0 | Angular | 150 mm | 190 mm | 20 mm | Open |
| K16020AR0 | Angular | 160 mm | 200 mm | 20 mm | Open |
| K17020AR0 | Angular | 170 mm | 210 mm | 20 mm | Open |
| K18020AR0 | Angular | 180 mm | 220 mm | 20 mm | Open |
| K19020AR0 | Angular | 190 mm | 230 mm | 20 mm | Open |
| K20020AR0 | Angular | 200 mm | 240 mm | 20 mm | Open |
| K25020AR0 | Angular | 250 mm | 290 mm | 20 mm | Open |
| K30020AR0 | Angular | 300 mm | 340 mm | 20 mm | Open |
| K32020AR0 | Angular | 320 mm | 360 mm | 20 mm | Open |
| K34020AR0 | Angular | 340 mm | 380 mm | 20 mm | Open |
| K36020AR0 | Angular | 360 mm | 400 mm | 20 mm | Open |
| K02520CP0 | Radial | 25 mm | 65 mm | 20 mm | Open |
| K05020CP0 | Radial | 50 mm | 90 mm | 20 mm | Open |
| K06020CP0 | Radial | 60 mm | 100 mm | 20 mm | Open |
| K07020CP0 | Radial | 70 mm | 110 mm | 20 mm | Open |
| K08020CP0 | Radial | 80 mm | 120 mm | 20 mm | Open |
| K09020CP0 | Radial | 90 mm | 130 mm | 20 mm | Open |
| K10020CP0 | Radial | 100 mm | 140 mm | 20 mm | Open |
| K11020CP0 | Radial | 110 mm | 150 mm | 20 mm | Open |
| K12020CP0 | Radial | 120 mm | 160 mm | 20 mm | Open |
