Imperial Single Row-1

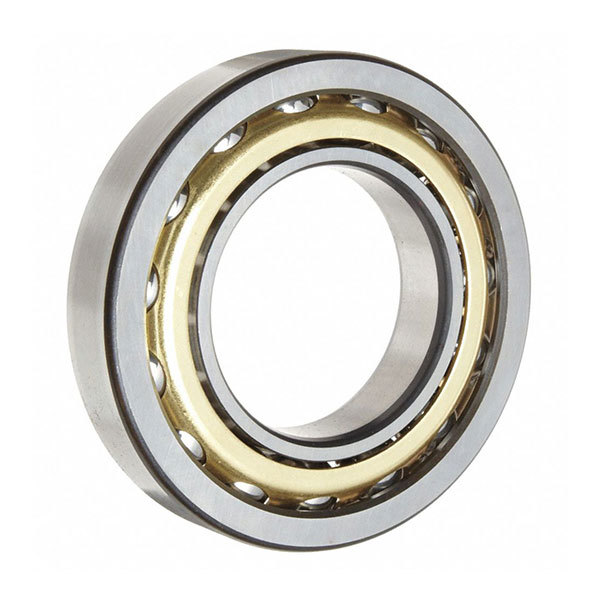

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads.They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.

Bearing Number	d mm	D mm	B mm
QJ 202 N2MA –	15	35	11
QJ 203 N2MA QJ 203 MA	17	40	12
QJ 303 N2MA –	17	47	14
QJ 304 N2MA QJ 304 MA	20	52	15
QJ 205 N2MA QJ 205 MA	25	52	15
QJ 305 N2MA QJ 305 MA	25	62	17
QJ 206 N2MA QJ 206 MA	30	62	16
QJ 306 N2MA QJ 306 MA	30	72	19
QJ 207 N2MA QJ 207 MA	35	72	17
QJ 307 N2MA QJ 307 MA	35	80	21
QJ 208 N2MA QJ 208 MA	40	80	18
QJ 308 N2MA QJ 308 MA	40	90	23
– QJ 209 MA	45	85	19
QJ 309 N2MA QJ 309 MA	45	100	25
QJ 210 N2MA QJ 210 MA	50	90	20
– QJ 310 MA	50	110	27
QJ 211 N2MA QJ 211 MA	55	100	21
QJ 311 N2MA QJ 311 MA	55	120	29
QJ 212 N2MA QJ 212 MA	60	110	22
QJ 312 N2MA QJ 312 MA	60	130	31
QJ 213 N2MA QJ 213 MA	65	120	23
– QJ 313 MA	65	140	33
QJ 214 N2MA QJ 214 MA	70	125	24
QJ 314 N2MA QJ 314 MA	70	150	35
QJ 215 N2MA QJ 215 MA	75	130	25
QJ 315 N2MA –	75	160	37
QJ 216 N2MA QJ 216 MA	80	140	26
QJ 316 N2MA –	80	170	39
QJ 217 N2MA QJ 217 MA	85	150	28
QJ 317 N2MA –	85	180	41
QJ 218 N2MA –	90	160	30
QJ 318 N2MA –	90	190	43
