Imperial Single Row-1

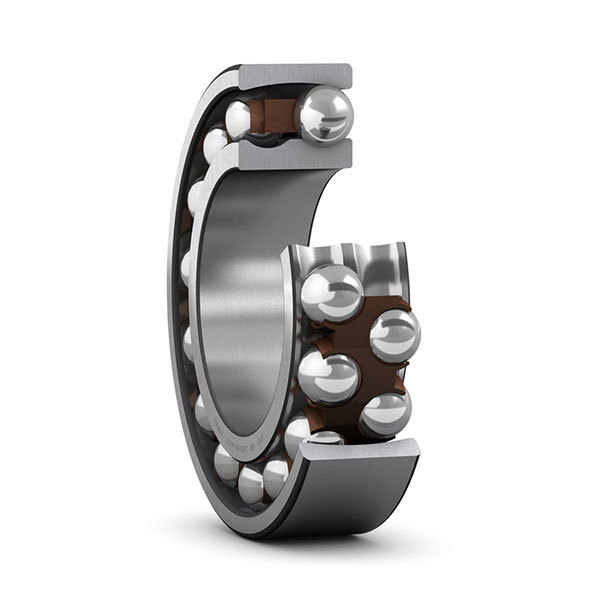

1200 Series Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
| Bearing Number | d mm | D mm | B mm |
| 1200 | 10 | 30 | 9 |
| 1202 | 35 | 11 | |
| 1203 | 17 | 40 | 12 |
| 1204 | 20 | 47 | 14 |
| 1205 | 25 | 52 | 15 |
| 1206 | 30 | 62 | 16 |
| 1207 | 35 | 72 | 17 |
| 1208 | 40 | 80 | 18 |
| 1209 | 45 | 85 | 19 |
| 1210 | 50 | 90 | 20 |
| 1212 | 60 | 110 | 22 |
| 1213 | 65 | 120 | 23 |
| 1214 | 70 | 125 | 24 |
| 1215 | 75 | 130 | 25 |
| 1216 | 80 | 140 | 26 |
| 1217 | 85 | 150 | 28 |
| 1218 | 90 | 160 | 30 |
| 1219 | 95 | 170 | 32 |
| 1220 | 100 | 180 | 34 |
| 1221 | 105 | 190 | 36 |
