Imperial Single Row-1

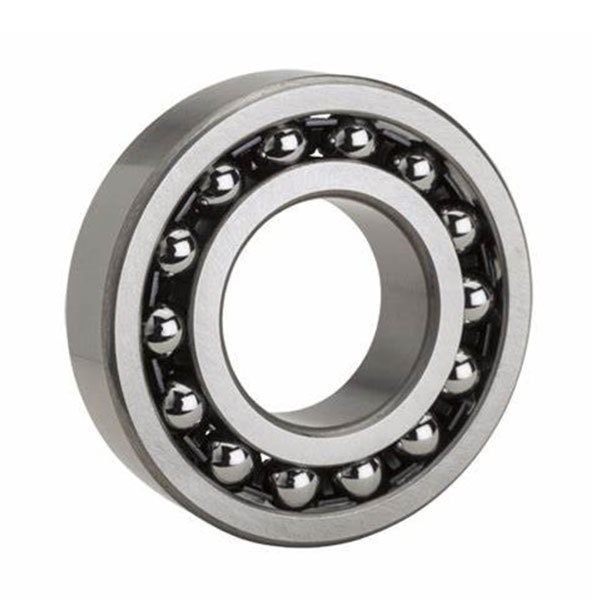

The components of the self aligning ball bearing include two rows of balls,

a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges.

Suffix definitions of Self-aligning ball bearings:

C3: radial clearance than ordinary clearance

K: 1/12 taper tapered bore

K30: 1/30 taper tapered bore

M: Ball guided machined brass cage

2RS: with both ends of closures

Bearing Number	d mm	D mm	B mm
2300	10	35	17
2301	12	37	17
2302	15	42	17
2303	17	47	19
2304	20	52	21
2305	25	62	24
2306	30	72	27
2307	35	80	31
2308	40	90	33
2309	45	100	36
2310	50	110	40
2311	55	120	46
2312	60	130	46
2313	65	140	48
2314	70	150	51
2315	75	160	55
2316	80	170	58
2317	85	160	60
2318	90	190	64
2319	95	200	67
2320	100	215	73
2321	105	225	77
2322	110	240	80
