Imperial Single Row-1

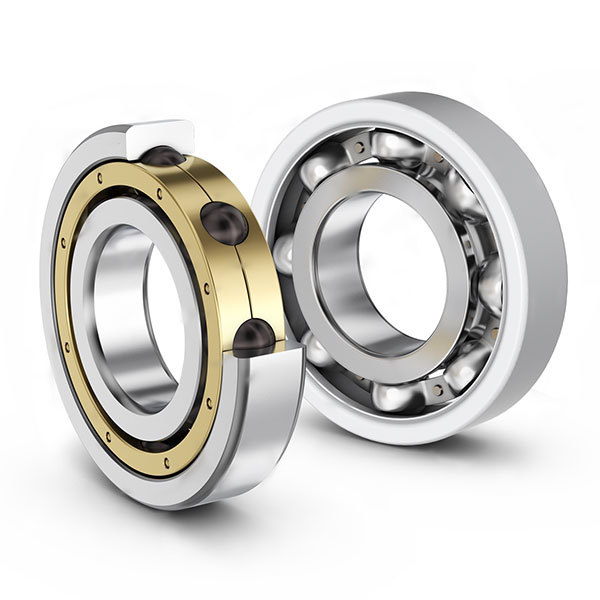

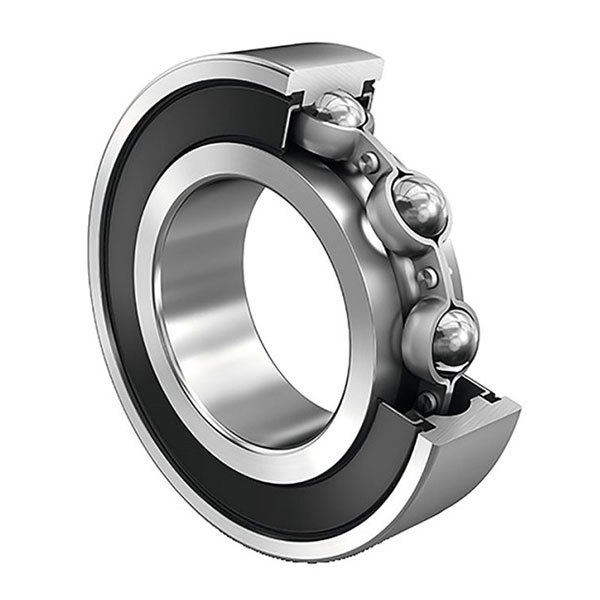

Features of TM series deep groove ball bearings:

1. Small friction coefficient and high speed;

2. The structure is simple, the manufacturing cost is low, and it is easy to achieve high manufacturing precision;

3. It is mainly used to bear radial loads, but when the radial clearance of the bearing increases, it has the properties of an angular contact ball bearing and can bear axial loads alternating in two directions;

4. Deep groove ball bearings are the most representative rolling bearings, which are widely used, very durable, and do not require frequent maintenance;

5. It has a certain ability to adjust the center, and the size range and form vary.

Bearing Number	d mm	D mm	B mm
TM-SC08804CM25	40	80	17
TM-SC0988EX1X2/85CM17	45	85	17
TM-SC07A7CS42-1	35	72	15
TM-SC07A87CS26	35	72	15
3TM-SC05B897	26	72	15.5
3TM-SC05B97	26	72	15.5
TM-SC1467CS42	70	100	12
TM-SC04C27CS32	20	60	13
TM-SC08B04CM25 PX1	40	81	17
TM-SC04C23CS12PX1	22	56	15
TM-SC06B42	25	72	18
TM-SC08A76CS20	40	90	20
3TM-SC08A76CS20PX1	40	90	20
TM-SC08A76CS20PX1	40	90	20
