Imperial Single Row-1

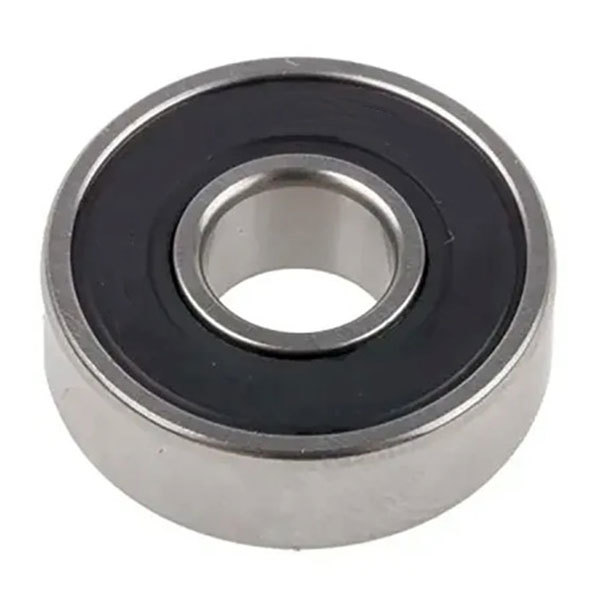

Thickened deep groove ball bearings generally use steel stamping cages, but if the size is large and difficult to stamping or used for high-speed rotation, turning cages are used. This type of bearing usually has a bearing with a dust cover, with a seal ring, a non-contact rubber cover, a contact rubber cover or a snap ring.

1 Miniature bearings: 67X, 68X, 69X, 60X, 62X, 63X, MRXX, MFXX

2 Universal bearings: 67XX, 68XX, 69XX, 160XX, 60XX, 62XX, 63XX, 64XX

3 Inch bearings: 16XX, EXX, RXX, ENXX

4 Thickened bearings: 622XX, 623XX, 630XX, 632XX, 633XX, 638XX

5 Double row bearings: 42XX, 43XX

Bearing Number	d mm inch		D mm inch		B mm inch
62200	10	0.3937	30	1.1811	14	0.5512
62201	12	0.4724	32	1.2598	14	0.5512
62202	15	0.5906	35	1.378	14	0.5512
62203	17	0.6693	40	1.5748	16	0.6299
62204	20	0.7874	47	1.8504	18	0.7086
62205	25	0.9843	52	2.1645	18	0.7086
62206	30	1.1811	62	2.4409	20	0.7874
62207	35	1.3779	72	2.8346	23	0.9055
62208	40	1.5748	80	3.1496	23	0.9055
62209	45	1.7716	85	3.3464	23	0.9055
62210	50	1.965	90	3.5464	23	0.9055
62211	55	2.1653	100	3.937	25	0.9843
62212	60	2.362	110	4.3307	28	1.1024
62213	65	2.559	120	4.7244	31	1.2205
62214	70	2.7559	125	4.9213	31	1.2205
62215	75	2.9528	130	5.1181	31	1.2205
62216	80	3.1496	140	5.7087	33	1.2992
62217	85	3.3454	150	5.9055	36	1.4173
62218	90	3.5433	160	6.2996	40	1.5748
62219	95	3.7402	170	6.6929	43	1.6926
62220	100	3.937	180	7.0866	46	1.811
62300	10	0.3937	35	1.378	17	0.6693
62301	12	0.4724	37	1.4567	17	0.6693
62302	15	0.5906	42	1.6535	17	0.6693
62303	17	0.6693	47	1.8504	19	0.748
62304	20	0.7874	52	2.0472	21	0.8267
62305	25	0.9843	62	2.4409	24	0.9448
62306	30	1.1811	72	2.8346	27	1.063
62307	35	1.3779	80	3.1496	31	1.2204
62308	40	1.5748	90	3.5433	33	1.2992
62309	45	1.7716	100	3.937	36	1.4173
62310	50	1.965	110	4.3307	40	1.5748
62311	55	2.1653	120	4.7244	43	1.6929
62312	60	2.362	130	5.1181	46	1.811
62313	65	2.559	140	5.7187	48	1.8898
62314	70	2.7559	150	5.9055	51	2.0078
62315	75	2.9528	160	6.2992	55	2.1654
62316	80	3.1496	170	6.6929	58	2.2835
62317	85	3.3454	180	7.0866	60	2.362
62318	90	3.5433	190	7.1803	64	2.5197
62319	95	3.7402	200	7.874	67	2.6378
