Imperial Single Row-1

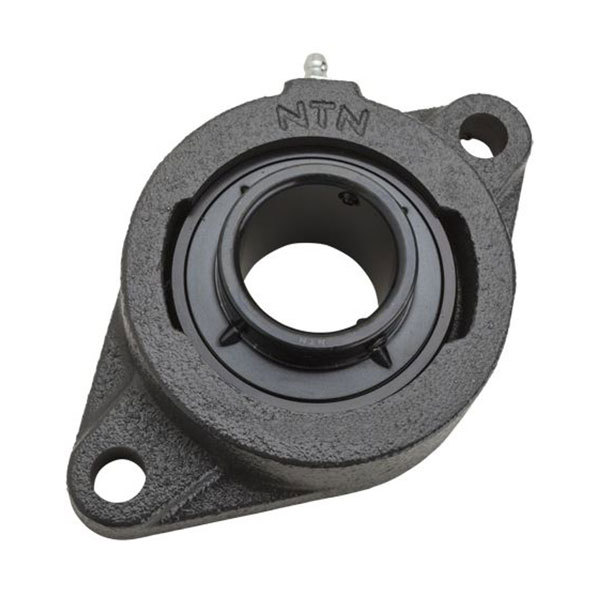

UCFLU two-bolt flanged units are suggested for industrial applications where normal loads are encountered. This series is primarily designed for applications where the mounting area is restricted. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. The bonded seal design is well-suited for applications involving wet or dirty environments. Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.

Bearing Number	Dimensions（mm）
UCFLU201-8	12.7×99×86.5×57×33.3
UCFLU202-9	14.288×99×86.5×57×33.3
UCFLU202-10	15.875×99×86.5×57×33.3
UCFLU203-11	17.462×99×86.5×57×33.3
UCFLU204-12	19.05×113×90×60×33.3
UCFLU205-14	22.225×130×99×68×35.8
UCFLU205-15	23.812×130×99×68×35.8
UCFLU205-16	25.4×130×99×68×35.8
UCFLU206-18	28.575×148×117×80×40.2
UCFLU206-19	30.162×148×117×80×40.2
UCFLU206-20	31.75×148×117×80×40.2
UCFLU207-20	31.75×161×130×90×44.4
UCFLU207-21	33.338×161×130×90×44.4
UCFLU207-22	34.952×161×130×90×44.4
UCFLU207-23	36.512×161×130×90×44.4
UCFLU208-24	38.1×175×144×100×51.2
UCFLU208-25	39.688×175×144×100×51.2
UCFLU209-26	41.275×188×148×108×52.2
UCFLU209-27	42.862×188×148×108×52.2
UCFLU209-28	44.45×188×148×108×52.2
UCFLU210-30	47.625×197×157×115×54.6
UCFLU210-31	49.212×197×157×115×54.6
UCFLU210-32	50.8×197×157×115×54.6
UCFLU211-32	50.8×224×184×130×58.4
UCFLU211-34	53.975×224×184×130×58.4
UCFLU211-35	55.562×224×184×130×58.4
UCFLU212-36	57.15×250×202×140×68.7
UCFLU212-37	58.738×250×202×140×68.7
UCFLU212-38	60.325×250×202×140×68.7
UCFLU212-39	61.912×250×202×140×68.7
UCFLU213-40	63.5×258×210×155×69.7
UCFLU213-43	68.262×258×210×155×69.7
UCFLU214-44	69.85×265×216×160×75.4
UCFLU215-44	69.85×275×225×165×78.5
UCFLU215-47	74.612×275×225×165×78.5
UCFLU215-48	76.2×275×225×165×78.5
UCFLU216-52	82.55×290×233×180×83.3
UCFLU217-52	82.55×305×248×190×87.6
UCFLU218-56	88.9×320×265×205×96.3
NAFLU201	12×113×90×62×445.5
NAFLU202	15×113×90×62×445.5
NAFLU203	17×113×90×62×445.5
NAFLU204	20×113×90×62×445.5
NAFLU205	25×125×99×70×45.9
NAFLU206	30×142×116.5×81×50.1
NAFLU207	35×156×130×91×53.3
NAFLU208	40×172×143.5×101×58.9
NAFLU209	45×180×148.5×108×58.9
NAFLU210	50×190×157×115×66.1
NAFLU211	55×217×184×127×74.7
NAFLU212	60×235×202×138×80.9
NAFLU213	65×250×210×148×89.6
NAFLU214	70×258×216×155×89.6
NAFLU215	75×270×225×165×95.8
NAFLU216	80×290×233×180×99.9
NAFLU201-8	12.7×113×90×62×45.5
NAFLU202-10	15.875×113×90×62×45.5
NAFLU202-9	14.288×113×90×62×45.5
NAFLU203-11	17.462×113×90×62×45.5
NAFLU204-12	19.05×113×90×62×45.5
NAFLU205-14	22.225×125×99×70×45.9
NAFLU205-15	23.812×125×99×70×45.9
NAFLU205-16	25.4×125×99×70×45.9
NAFLU206-18	28.575×142×116.5×81×50.1
NAFLU206-19	30.162×142×116.5×81×50.1
NAFLU206-20	31.75×142×116.5×81×50.1
NAFLU207-20	31.75×156×130×91×53.3
NAFLU207-21	33.338×156×130×91×53.3
NAFLU207-22	34.952×156×130×91×53.3
NAFLU207-23	36.512×156×130×91×53.3
NAFLU208-24	38.1×172×143.5×101×58.9
NAFLU208-25	39.688×172×143.5×101×58.9
NAFLU209-26	41.275×180×148.5×108×58.9
NAFLU209-27	42.862×180×148.5×108×58.9
NAFLU209-28	44.45×180×148.5×108×58.9
NAFLU210-30	47.625×190×157×115×66.1
NAFLU210-31	49.212×190×157×115×66.1
NAFLU210-32	50.8×190×157×115×66.1
NAFLU211-32	50.8×217×184×127×74.7
NAFLU211-34	53.975×217×184×127×74.7
NAFLU211-35	55.562×217×184×127×74.7
NAFLU212-36	57.15×235×202×138×80.9
NAFLU212-37	58.738×235×202×138×80.9
NAFLU212-38	60.325×235×202×138×80.9
NAFLU212-39	61.912×235×202×138×80.9
NAFLU213-40	63.5×250×210×148×89.6
NAFLU213-43	68.262×250×210×148×89.6
NAFLU214-44	69.85×258×216×155×89.6
NAFLU215-44	69.85×270×225×165×95.8
NAFLU215-47	74.612×270×225×165×95.8
NAFLU215-48	76.2×270×225×165×95.8
