Imperial Single Row-1

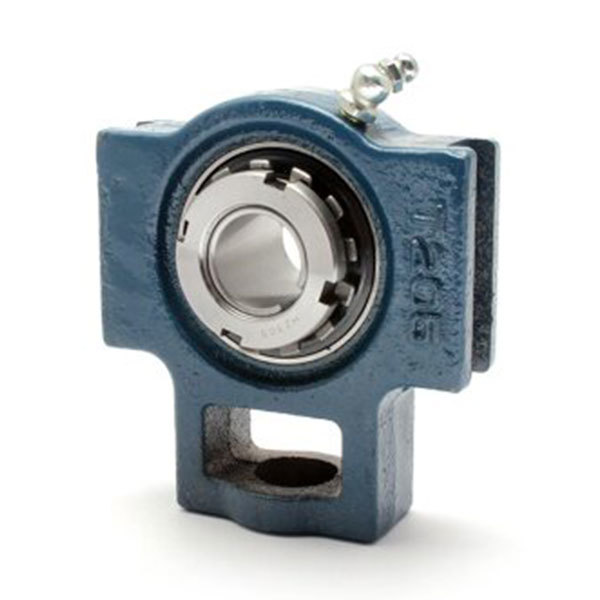

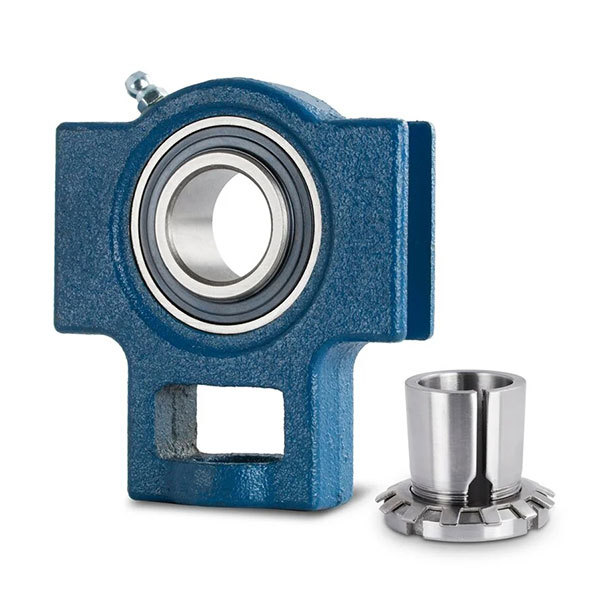

UKT+H take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. The units are locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. This permits the full limiting speed to be achieved, even where using commercial-grade shafts. The adapter sleeve needs to be ordered separately.

Bearing Number	d mm	H mm	L	A	A2	L1	B mm	Bearing No.	Adapter Sleeve	Weight (kg)
UKT 205	20	89	97	32	24	62	35	UK 205	H 2305	1,0
UKT 206	25	102	113	37	28	70	38	UK 206	H 2306	1,4
UKT 207	30	102	129	37	30	78	43	UK 207	H 2307	1,8
UKT 208	35	114	144	49	33	88	46	UK 208	H 2308	2,5
UKT 209	40	117	144	49	35	87	50	UK 209	H 2309	2,6
UKT 210	45	117	149	49	37	90	55	UK 210	H 2310	3,1
UKT 211	50	146	171	64	38	106	59	UK 211	H 2311	5,0
UKT 212	55	146	194	64	42	119	62	UK 212	H 2312	5,1
UKT 213	60	167	224	70	44	137	65	UK 213	H 2313	7,3
UKT 215	65	167	232	70	48	140	73	UK 215	H 2315	7,8
UKT 216	70	184	235	70	51	140	78	UK 216	H 2316	9,0
UKT 217	75	198	260	73	54	162	82	UK 217	H 2317	12,0
UKT 305	20	89	122	36	26	76	35	UK 305	H 2305	1,5
UKT 306	25	100	137	41	28	85	38	UK 306	H 2306	1,9
UKT 307	30	111	150	45	32	94	43	UK 307	H 2307	2,5
UKT 308	35	124	162	50	34	100	46	UK 308	H 2308	3,1
UKT 309	40	138	178	55	38	110	50	UK 309	H 2309	4,2
UKT 310	45	151	191	61	40	117	55	UK 310	H 2310	5,3
UKT 311	50	163	207	66	44	127	59	UK 311	H 2311	6,4
UKT 312	55	178	220	71	46	135	62	UK 312	H 2312	7,5
UKT 313	60	190	238	80	50	146	65	UK 313	H 2313	9,1
UKT 315	65	216	262	90	55	160	73	UK 315	H 2315	13,0
UKT 316	70	230	282	102	60	174	78	UK 316	H 2316	16,0
UKT 317	75	240	298	102	64	183	82	UK 317	H 2317	19,0
UKT 318	80	255	312	110	66	192	86	UK 318	H 2318	22,0
UKT 319	85	270	322	110	72	197	90	UK 319	H 2319	25,0
UKT 320	90	290	345	120	75	210	97	UK 320	H 2320	31,0
UKT 322	100	320	385	130	80	235	105	UK 322	H 2322	40,0
UKT 324	110	355	432	140	90	267	112	UK 324	H 2324	54,0
UKT 326	115	385	465	150	100	285	121	UK 326	H 2326	69,0
UKT 328	125	415	515	155	100	315	131	UK 328	H 2328	84,0
