Imperial Single Row-1

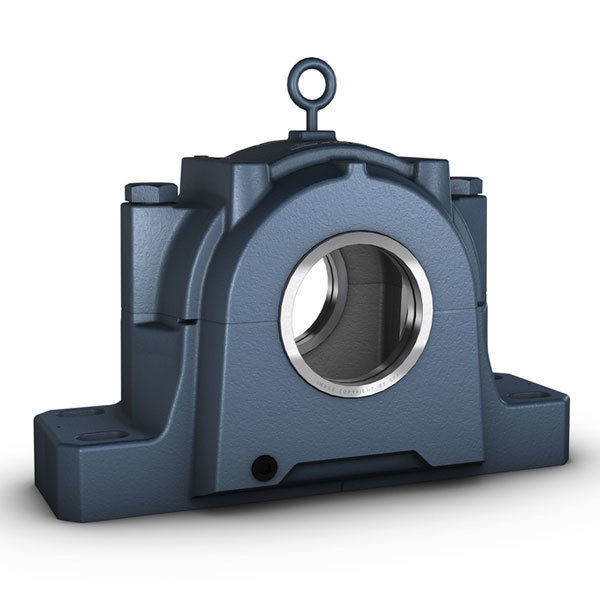

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
SAW 23532 X 5.1/2 T	139.7	288.925	336.55	169.875	558.8	SAW 532	23232 CCK/W33
SAW 23532 X 5.1/2 TLC	139.7	223.838	336.55	169.875	558.8	SAW 532	23232 CCK/W33
SSAFS 22532 X 5.1/2	139.7	225.425	338.138	169.875	558.8	SSAFS 532	22232 CCK/W33
SSAFS 22532 X 5.1/2 T	139.7	288.925	338.138	169.875	558.8	SSAFS 532	22232 CCK/W33
SSAFS 22532 X 5.1/2 TLC	139.7	225.425	338.138	169.875	558.8	SSAFS 532	22232 CCK/W33
SAF 22534 X 5.13/16	147.638	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 5.13/16 T	147.638	307.975	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 5.13/16 TLC	147.638	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22634 X 5.13/16	147.638	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 5.13/16 T	147.638	352.425	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 5.13/16 TLC	147.638	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 23034 KA X 5.13/16	147.638	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KAT X 5.13/16	147.638	261.938	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KATLC X 5.13/16	147.638	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAFS 22534 X 5.13/16	147.638	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 5.13/16 T	147.638	309.563	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 5.13/16 TLC	147.638	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 23034 KA X 5.13/16	147.638	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KAT X 5.13/16	147.638	260.35	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KATLC X 5.13/16	147.638	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAW 23534 X 5.13/16	147.638	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 5.13/16 T	147.638	307.975	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 5.13/16 TLC	147.638	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SSAFS 22534 X 5.13/16	147.638	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 5.13/16 T	147.638	309.575	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 5.13/16 TLC	147.638	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 23034 KA X 5.13/16	147.638	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KAT X 5.13/16	147.638	260.35	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KATLC X 5.13/16	147.638	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SAF 22534 X 5.7/8	149.225	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 5.7/8 T	149.225	307.975	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 5.7/8 TLC	149.225	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22634 X 5.7/8	149.225	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 5.7/8 T	149.225	352.425	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 5.7/8 TLC	149.225	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 23034 KA X 5.7/8	149.225	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KAT X 5.7/8	149.225	261.938	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KATLC X 5.7/8	149.225	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAFS 22534 X 5.7/8	149.225	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 5.7/8 T	149.225	309.563	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 5.7/8 TLC	149.225	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 23034 KA X 5.7/8	149.225	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KAT X 5.7/8	149.225	260.35	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KATLC X 5.7/8	149.225	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAW 23534 X 5.7/8	149.225	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 5.7/8 T	149.225	307.975	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 5.7/8 TLC	149.225	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SSAFS 22534 X 5.7/8	149.225	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 5.7/8 T	149.225	309.575	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 5.7/8 TLC	149.225	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 23034 KA X 5.7/8	149.225	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KAT X 5.7/8	149.225	260.35	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KATLC X 5.7/8	149.225	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SAF 22534	150.813	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 T	150.813	307.975	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 TLC	150.813	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22634	150.813	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 T	150.813	352.425	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 TLC	150.813	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 23034 KA X 5.15/16	150.813	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KAT X 5.15/16	150.813	261.938	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KATLC X 5.15/16	150.813	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAFS 22534	150.813	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 T	150.813	309.563	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 TLC	150.813	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 23034 KA X 5.15/16	150.813	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KAT X 5.15/16	150.813	260.35	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KATLC X 5.15/16	150.813	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAW 23534	150.813	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 T	150.813	307.975	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 TLC	150.813	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SSAFS 22534	150.813	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 T	150.813	309.575	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 TLC	150.813	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 23034 KA X 5.15/16	150.813	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KAT X 5.15/16	150.813	260.35	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KATLC X 5.15/16	150.813	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SAF 22534 X 6	152.4	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 6 T	152.4	307.975	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22534 X 6 TLC	152.4	242.888	360.363	179.375	628.65	SAF 534	22234 CCK/W33
SAF 22634 X 6	152.4	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 6 T	152.4	352.425	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 22634 X 6 TLC	152.4	285.75	422.275	209.55	749.3	SAF 634	22334 CCK/W33
SAF 23034 KA X 6	152.4	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KAT X 6	152.4	261.938	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAF 23034 KATLC X 6	152.4	193.675	305.594	152.4	511.175	SAF 034 KA	23034 CCK/W33
SAFS 22534 X 6	152.4	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 6 T	152.4	309.563	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 22534 X 6 TLC	152.4	247.65	360.363	179.4	628.65	SAFS 534	22234 CCK/W33
SAFS 23034 KA X 6	152.4	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KAT X 6	152.4	260.35	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAFS 23034 KATLC X 6	152.4	193.675	298.45	152.4	511.175	SAFS 034 KA	23034 CCK/W33
SAW 23534 X 6	152.4	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 6 T	152.4	307.975	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SAW 23534 X 6 TLC	152.4	242.888	360.363	179.375	628.65	SAW 534	23234 CCK/W33
SSAFS 22534 X 6	152.4	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 6 T	152.4	309.575	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 22534 X 6 TLC	152.4	247.65	360.363	179.4	628.65	SSAFS 534	22234 CCK/W33
SSAFS 23034 KA X 6	152.4	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KAT X 6	152.4	260.35	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SSAFS 23034 KATLC X 6	152.4	193.675	298.45	152.4	511.175	SSAFS 034 KA	23034 CCK/W33
SAF 22536 X 6.5/16	160.338	250.825	377.825	190.5	679.45	SAF 536	22236 CCK/W33
SAF 22536 X 6.5/16 T	160.338	317.5	377.825	190.5	679.45	SAF 536	22236 CCK/W33
SAF 22536 X 6.5/16 TLC	160.338	250.825	377.825	190.5	679.45	SAF 536	22236 CCK/W33
SAF 23036 KA X 6.5/16	160.338	222.25	336.55	169.875	558.8	SAF 036 KA	23036 CCK/W33
SAF 23036 KAT X 6.5/16	160.338	279.4	336.55	169.875	558.8	SAF 036 KA	23036 CCK/W33
SAF 23036 KATLC X 6.5/16	160.338	222.25	336.55	169.875	558.8	SAF 036 KA	23036 CCK/W33
SAFS 22536 X 6.5/16	160.338	254	377.825	190.5	679.45	SAFS 536	22236 CCK/W33
SAFS 22536 X 6.5/16 T	160.338	314.325	377.825	190.5	679.45	SAFS 536	22236 CCK/W33
SAFS 22536 X 6.5/16 TLC	160.338	254	377.825	190.5	679.45	SAFS 536	22236 CCK/W33
SAW 23536 X 6.5/16	160.338	250.825	377.825	190.5	679.45	SAW 536	23236 CCK/W33
SAW 23536 X 6.5/16 T	160.338	317.5	377.825	190.5	679.45	SAW 536	23236 CCK/W33
SAW 23536 X 6.5/16 TLC	160.338	250.825	377.825	190.5	679.45	SAW 536	23236 CCK/W33
SSAFS 22536 X 6.5/16	160.338	254	377.825	190.5	679.45	SSAFS 536	22236 CCK/W33
SSAFS 22536 X 6.5/16 T	160.338	314.325	377.825	190.5	679.45	SSAFS 536	22236 CCK/W33
