SAF And SAW Series (Inch Size)
Category:
Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1

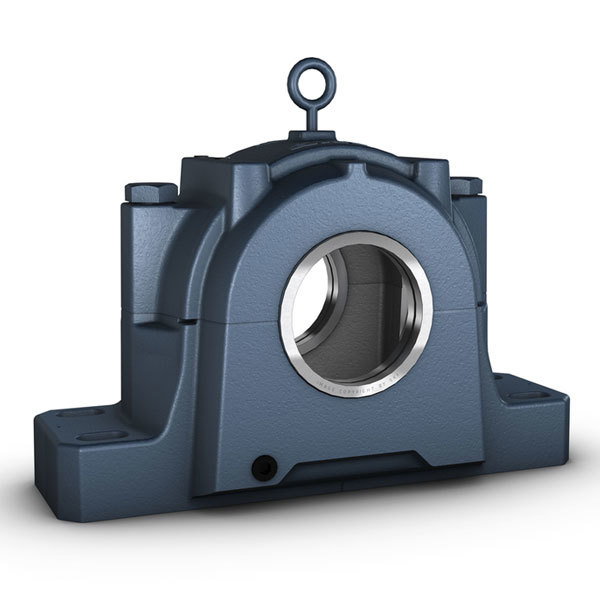

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.
| Designation | Shaft diameter | Housing dimensions | Included products | ||||
| Width across seals | Height | Centre height | Length | Housing | Bearing | ||
| da[mm] | A2[mm] | H[mm] | H1[mm] | L[mm] | |||
| SAFS 22520-11 T | 87.313 | 224.631 | 222.25 | 114.3 | 387.35 | FSAFS 520 | 22220 EK |
| SAFS 22520-11 TLC | 87.313 | 155.575 | 222.25 | 114.3 | 387.35 | FSAFS 520 | 22220 EK |
| SAW 23520 | 87.313 | 173.038 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SAW 23520 T | 87.313 | 222.25 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SAW 23520 TLC | 87.313 | 173.038 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SSAFS 22520 | 87.313 | 155.575 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| SSAFS 22520 T | 87.313 | 224.638 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| SSAFS 22520 TLC | 87.313 | 155.575 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| FSAF 1520 X 3.1/2 | 88.9 | 153.194 | 217.488 | 114.3 | 387.35 | FSAF 520 | 1220 K |
| FSAF 1520 X 3.1/2 T | 88.9 | 222.25 | 217.488 | 114.3 | 387.35 | FSAF 520 | 1220 K |
| FSAF 1520 X 3.1/2 TLC | 88.9 | 153.194 | 217.488 | 114.3 | 387.35 | FSAF 520 | 1220 K |
| FSAF 22520 X 3.1/2 | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | FSAF 520 | 22220 EK |
| FSAF 22520 X 3.1/2 T | 88.9 | 222.25 | 217.488 | 114.3 | 387.35 | FSAF 520 | 22220 EK |
| FSAF 22520 X 3.1/2 TLC | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | FSAF 520 | 22220 EK |
| SAF 1520 X 3.1/2 | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | SAF 520 | 1220 K |
| SAF 1520 X 3.1/2 T | 88.9 | 222.25 | 217.488 | 114.3 | 387.35 | SAF 520 | 1220 K |
| SAF 1520 X 3.1/2 TLC | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | SAF 520 | 1220 K |
| SAF 1620 X 3.1/2 | 88.9 | 187.325 | 258.763 | 133.35 | 419.1 | SAF 620 | 1320 K |
| SAF 1620 X 3.1/2 T | 88.9 | 254 | 258.763 | 133.35 | 419.1 | SAF 620 | 1320 K |
| SAF 1620 X 3.1/2 TLC | 88.9 | 187.325 | 258.763 | 133.35 | 419.1 | SAF 620 | 1320 K |
| SAF 22520 X 3.1/2 | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | SAF 520 | 22220 EK |
| SAF 22520 X 3.1/2 T | 88.9 | 222.25 | 217.488 | 114.3 | 387.35 | SAF 520 | 22220 EK |
| SAF 22520 X 3.1/2 TLC | 88.9 | 152.797 | 217.488 | 114.3 | 387.35 | SAF 520 | 22220 EK |
| SAF 22620 X 3.1/2 | 88.9 | 187.325 | 258.763 | 133.35 | 419.1 | SAF 620 | 22320 EK |
| SAF 22620 X 3.1/2 T | 88.9 | 254 | 258.763 | 133.35 | 419.1 | SAF 620 | 22320 EK |
| SAF 22620 X 3.1/2 TLC | 88.9 | 187.325 | 258.763 | 133.35 | 419.1 | SAF 620 | 22320 EK |
| SAFS 22520 X 3.1/2 | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | SAFS 520 | 22220 EK |
| SAFS 22520 X 3.1/2 T | 88.9 | 224.631 | 222.25 | 114.3 | 387.35 | SAFS 520 | 22220 EK |
| SAFS 22520 X 3.1/2 TLC | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | SAFS 520 | 22220 EK |
| SAFS 22520-11 X 3.1/2 | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | FSAFS 520 | 22220 EK |
| SAFS 22520-11 X 3.1/2 T | 88.9 | 224.631 | 222.25 | 114.3 | 387.35 | FSAFS 520 | 22220 EK |
| SAFS 22520-11 X 3.1/2 TLC | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | FSAFS 520 | 22220 EK |
| SAW 23520 X 3.1/2 | 88.9 | 173.038 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SAW 23520 X 3.1/2 T | 88.9 | 222.25 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SAW 23520 X 3.1/2 TLC | 88.9 | 173.038 | 222.25 | 114.3 | 387.35 | SAW 520 | 23220 CCK/W33 |
| SSAFS 22520 X 3.1/2 | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| SSAFS 22520 X 3.1/2 T | 88.9 | 224.638 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| SSAFS 22520 X 3.1/2 TLC | 88.9 | 155.575 | 222.25 | 114.3 | 387.35 | SSAFS 520 | 22220 EK |
| SAF 1522 X 3.11/16 | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.11/16 T | 93.663 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.11/16 TLC | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 22522 X 3.11/16 | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.11/16 T | 93.663 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.11/16 TLC | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22622 X 3.11/16 | 93.663 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.11/16 T | 93.663 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.11/16 TLC | 93.663 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAFS 22522 X 3.11/16 | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.11/16 T | 93.663 | 231.775 | 239.316 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.11/16 TLC | 93.663 | 165.1 | 239.316 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SSAFS 22522 X 3.11/16 | 93.663 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.11/16 T | 93.663 | 231.775 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.11/16 TLC | 93.663 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SAF 22622 X 3.3/4 | 95.25 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.3/4 T | 95.25 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.3/4 TLC | 95.25 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 1522 X 3.13/16 | 96.838 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.13/16 T | 96.838 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.13/16 TLC | 96.838 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1622 X 3.13/16 | 96.838 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 X 3.13/16 T | 96.838 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 X 3.13/16 TLC | 96.838 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 22522 X 3.13/16 | 96.838 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.13/16 T | 96.838 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.13/16 TLC | 96.838 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22622 X 3.13/16 | 96.838 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.13/16 T | 96.838 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.13/16 TLC | 96.838 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAFS 22522 X 3.13/16 | 96.838 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.13/16 T | 96.838 | 231.775 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.13/16 TLC | 96.838 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SSAFS 22522 X 3.13/16 | 96.838 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.13/16 T | 96.838 | 231.775 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.13/16 TLC | 96.838 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SAF 1522 X 3.7/8 | 98.425 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.7/8 T | 98.425 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 3.7/8 TLC | 98.425 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1622 X 3.7/8 | 98.425 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 X 3.7/8 T | 98.425 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 X 3.7/8 TLC | 98.425 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 22522 X 3.7/8 | 98.425 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.7/8 T | 98.425 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 X 3.7/8 TLC | 98.425 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22622 X 3.7/8 | 98.425 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.7/8 T | 98.425 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 X 3.7/8 TLC | 98.425 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAFS 22522 X 3.7/8 | 98.425 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.7/8 T | 98.425 | 231.775 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 X 3.7/8 TLC | 98.425 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SSAFS 22522 X 3.7/8 | 98.425 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.7/8 T | 98.425 | 231.775 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 X 3.7/8 TLC | 98.425 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SAF 1522 | 100.013 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 T | 100.013 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 TLC | 100.013 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1622 | 100.013 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 T | 100.013 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 1622 TLC | 100.013 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
| SAF 22522 | 100.013 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 T | 100.013 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22522 TLC | 100.013 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 22222 EK |
| SAF 22622 | 100.013 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 T | 100.013 | 273.05 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAF 22622 TLC | 100.013 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 22322 EK |
| SAFS 22522 | 100.013 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SAFS 22522 TLC | 100.013 | 165.1 | 244.475 | 125.425 | 419.1 | SAFS 522 | 22222 EK |
| SSAFS 22522 | 100.013 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 T | 100.013 | 231.775 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| SSAFS 22522 TLC | 100.013 | 165.1 | 244.475 | 125.425 | 419.1 | SSAFS 522 | 22222 EK |
| FSAF 23024 KA X 4 | 101.6 | 155.575 | 217.488 | 114.3 | 387.35 | FSAF 024 KA | 23024 CCK/W33 |
| FSAF 23024 KAT X 4 | 101.6 | 228.6 | 217.488 | 114.3 | 387.35 | FSAF 024 KA | 23024 CCK/W33 |
| FSAF 23024 KATLC X 4 | 101.6 | 155.575 | 217.488 | 114.3 | 387.35 | FSAF 024 KA | 23024 CCK/W33 |
| SAF 1522 X 4 | 101.6 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 4 T | 101.6 | 231.775 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1522 X 4 TLC | 101.6 | 165.1 | 239.316 | 125.425 | 419.1 | SAF 522 | 1222 K |
| SAF 1622 X 4 | 101.6 | 206.375 | 287.338 | 152.4 | 466.725 | SAF 622 | 1322 KM |
