Imperial Single Row-1

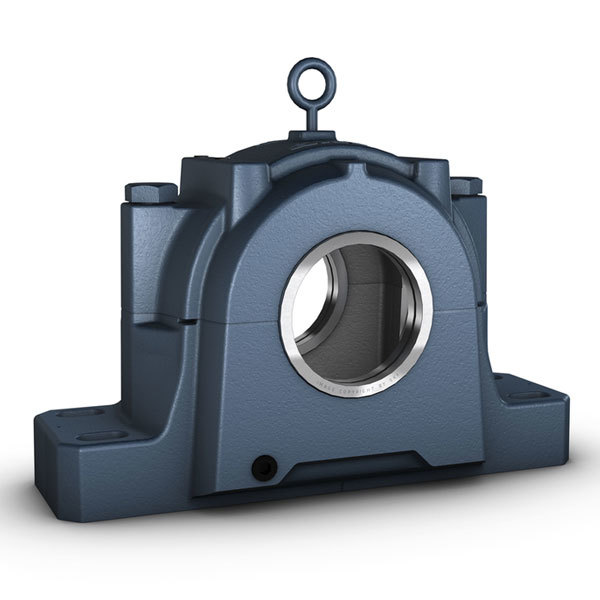

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
FSAF 1517 X 3 T	76.2	198.438	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 X 3 TLC	76.2	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1617 X 3	76.2	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 3 T	76.2	231.775	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 3 TLC	76.2	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 22517 X 3	76.2	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 3 T	76.2	198.438	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 3 TLC	76.2	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22617 X 3	76.2	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 3 T	76.2	231.775	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 3 TLC	76.2	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
SAF 1517 X 3	76.2	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 3 T	76.2	198.438	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 3 TLC	76.2	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1617 X 3	76.2	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 3 T	76.2	231.775	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 3 TLC	76.2	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 22517 X 3	76.2	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 3 T	76.2	198.438	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 3 TLC	76.2	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22617 X 3	76.2	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 3 T	76.2	231.775	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 3 TLC	76.2	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAFS 22517 X 3	76.2	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 3 T	76.2	195.263	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 3 TLC	76.2	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517-11 X 3	76.2	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 3 T	76.2	195.263	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 3 TLC	76.2	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SSAFS 22517 X 3	76.2	127	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 3 T	76.2	195.275	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 3 TLC	76.2	127	187.325	95.25	330.2	SSAFS 517	22217 EK
FSAF 1518 X 3.1/16	77.788	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 X 3.1/16 T	77.788	206.375	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 X 3.1/16 TLC	77.788	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 22518 X 3.1/16	77.788	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 X 3.1/16 T	77.788	206.375	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 X 3.1/16 TLC	77.788	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
SAF 1518 X 3.1/16	77.788	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 X 3.1/16 T	77.788	206.375	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 X 3.1/16 TLC	77.788	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1618 X 3.1/16	77.788	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 X 3.1/16 T	77.788	231.775	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 X 3.1/16 TLC	77.788	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 22518 X 3.1/16	77.788	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22518 X 3.1/16 T	77.788	206.375	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22518 X 3.1/16 TLC	77.788	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22618 X 3.1/16	77.788	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 X 3.1/16 T	77.788	231.775	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 X 3.1/16 TLC	77.788	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAFS 22518 X 3.1/16	77.788	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 X 3.1/16 T	77.788	206.375	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 X 3.1/16 TLC	77.788	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518-11 X 3.1/16	77.788	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 X 3.1/16 T	77.788	206.375	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 X 3.1/16 TLC	77.788	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAW 23518 X 3.1/16	77.788	41.275	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SAW 23518 X 3.1/16 T	77.788	206.375	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SAW 23518 X 3.1/16 TLC	77.788	41.275	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SSAFS 22518 X 3.1/16	77.788	149.225	196.85	101.6	349.25	SSAFS 518	22218 EK
SSAFS 22518 X 3.1/16 T	77.788	206.375	196.85	101.6	349.25	SSAFS 518	22218 EK
SSAFS 22518 X 3.1/16 TLC	77.788	149.225	196.85	101.6	349.25	SSAFS 518	22218 EK
FSAF 1518 X 3.1/8	79.375	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 X 3.1/8 T	79.375	206.375	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 X 3.1/8 TLC	79.375	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 22518 X 3.1/8	79.375	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 X 3.1/8 T	79.375	206.375	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 X 3.1/8 TLC	79.375	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
SAF 1518 X 3.1/8	79.375	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 X 3.1/8 T	79.375	206.375	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 X 3.1/8 TLC	79.375	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1618 X 3.1/8	79.375	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 X 3.1/8 T	79.375	231.775	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 X 3.1/8 TLC	79.375	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 22518 X 3.1/8	79.375	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22518 X 3.1/8 T	79.375	206.375	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22518 X 3.1/8 TLC	79.375	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22618 X 3.1/8	79.375	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 X 3.1/8 T	79.375	231.775	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 X 3.1/8 TLC	79.375	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAFS 22518 X 3.1/8	79.375	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 X 3.1/8 T	79.375	206.375	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 X 3.1/8 TLC	79.375	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518-11 X 3.1/8	79.375	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 X 3.1/8 T	79.375	206.375	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 X 3.1/8 TLC	79.375	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAW 23518 X 3.1/8	79.375	41.275	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SAW 23518 X 3.1/8 T	79.375	206.375	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SAW 23518 X 3.1/8 TLC	79.375	41.275	192.484	101.6	349.25	SAW 518	23218 CCK/W33
SSAFS 22518 X 3.1/8	79.375	149.225	196.85	101.6	349.25	SSAFS 518	22218 EK
SSAFS 22518 X 3.1/8 T	79.375	206.375	196.85	101.6	349.25	SSAFS 518	22218 EK
SSAFS 22518 X 3.1/8 TLC	79.375	149.225	196.85	101.6	349.25	SSAFS 518	22218 EK
FSAF 1518	80.963	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 T	80.963	206.375	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 1518 TLC	80.963	149.225	192.484	101.6	349.25	FSAF 518	1218 K
FSAF 22518	80.963	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 T	80.963	206.375	192.484	101.6	349.25	FSAF 518	22218 EK
FSAF 22518 TLC	80.963	149.225	192.484	101.6	349.25	FSAF 518	22218 EK
SAF 1518	80.963	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 T	80.963	206.375	192.484	101.6	349.25	SAF 518	1218 K
SAF 1518 TLC	80.963	149.225	192.484	101.6	349.25	SAF 518	1218 K
SAF 1618	80.963	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 T	80.963	231.775	230.981	120.65	393.7	SAF 618	1318 K
SAF 1618 TLC	80.963	174.625	230.981	120.65	393.7	SAF 618	1318 K
SAF 22518	80.963	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22518 TLC	80.963	149.225	192.484	101.6	349.25	SAF 518	22218 EK
SAF 22618	80.963	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 T	80.963	231.775	230.981	120.65	393.7	SAF 618	22318 EK
SAF 22618 TLC	80.963	174.625	230.981	120.65	393.7	SAF 618	22318 EK
SAFS 22518	80.963	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 T	80.963	206.375	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518 TLC	80.963	149.225	196.85	101.6	349.25	SAFS 518	22218 EK
SAFS 22518-11	80.963	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 T	80.963	206.375	196.85	101.6	349.25	FSAFS 518	22218 EK
SAFS 22518-11 TLC	80.963	149.225	196.85	101.6	349.25	FSAFS 518	22218 EK
SAW 23518	80.963	41.275	192.484	101.6	349.25	SAW 518	23218 CCK/W33
