Imperial Single Row-1

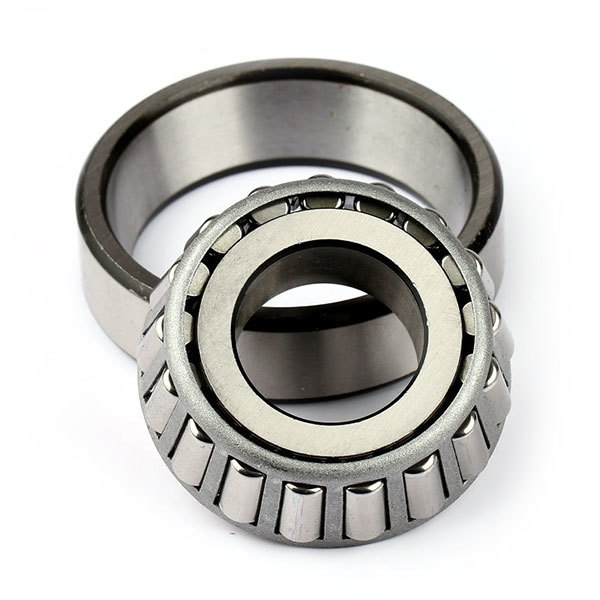

Inch single-row tapered roller bearings are mainly suitable for bearing combined radial and axial loads mainly based on radial loads, while large taper angle tapered roller bearings (27°~30°) can withstand radial and axial loads mainly based on bearing loads. Axial and axial combined load, but generally not suitable for pure axial load. The structure is separable, the inner ring and the outer ring can be installed separately, and the outer ring can be interchanged, which is convenient for installation and removal.

Bearing Number	Dimensions(mm)
802048/802011	41.275×82.55×26.543
M802048/M802011	41.275×82.55×26.543
FHM803146/FHN803110	41.275×88.9×30.162
HM807046/HM807010	50.8×104.775×36.512
HM807040/HM807010	53.975×104.775×36.512
JLM813049/JLM813010	70×110×26
HM813841/HM813811	60.325×127×36.512
HM813842/HM813811	63.5×127×36.512
HM813843/HM813811	61.912×127×36.512
HM813846/HM813811	69.85×127×36.512
HM813849/HM813811	71.438×127×36.512
JL819349/JL819310	95×135×20
JM822049/JM822010	110×165×35
KJM822049/KJM822010	110×165×35
EE822100/EE822175	254×444.5×76.2
JHM840449/JHM840410	200×300×65
EE843220/EE843290	558.8×736.6×88.108
KJL848849/KJL848811	254×324.975×39
L853049/L853010	276.225×352.512×36.512
L860049/L860010	330.2×415.925×47.625
L865547/L865512	381×479.425×49.212
KM88048/KM88010	33.338×68.262×22.225
HM903249/HM903210	44.45×95.25×30.958
HM903249A/HM903210	44.45×95.25×30.958
KJM911242/KHM911210	53.975×130.175×36.512
HM911245/HM911210	60.325×130.175×36.512
EE911600/EE912400	406.4×609.6×92.075
H913842/H913810	61.912×146.05×41.275
H913849/H913810	69.85×146.05×41.175
H917840-90010	76.2×180.975×14.3
KHM911242/KHM911210	53.975×130.175×36.512
KHM926740/KHM926710	114.3×228.6×33.975
EE923095/EE923175	241.3×444.5×101.6
HH923649/HH923610	101.6×250.875×76.2
HH926749/HH926710	120.65×273.05×82.55
HM926747/HM926710	127×228.6×53.975
HM932145/HH932110	146.05×304.8×88.39
EE941205X/EE941950	304.8×495.3×76.2
HM959649/HM959618	305×559.867×170.434
LM247748DW/710/710D	244.475×327.025×193.675
LM451349/DW/310/310D	266.7×355.6×230.188
M240648DW/611/611D
M240631T/644TD/644TD/647T
