Imperial Single Row-1

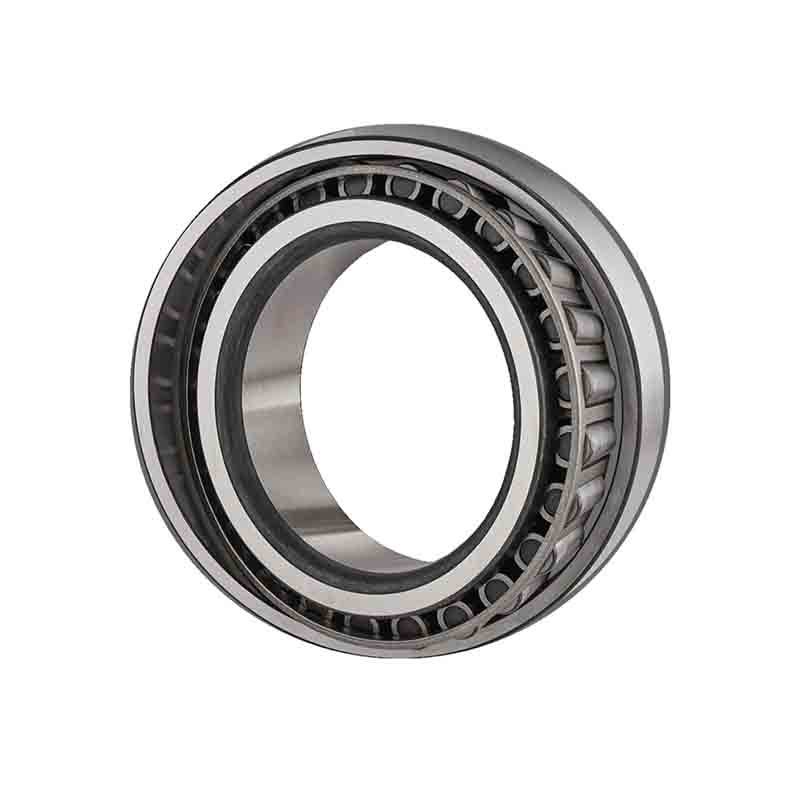

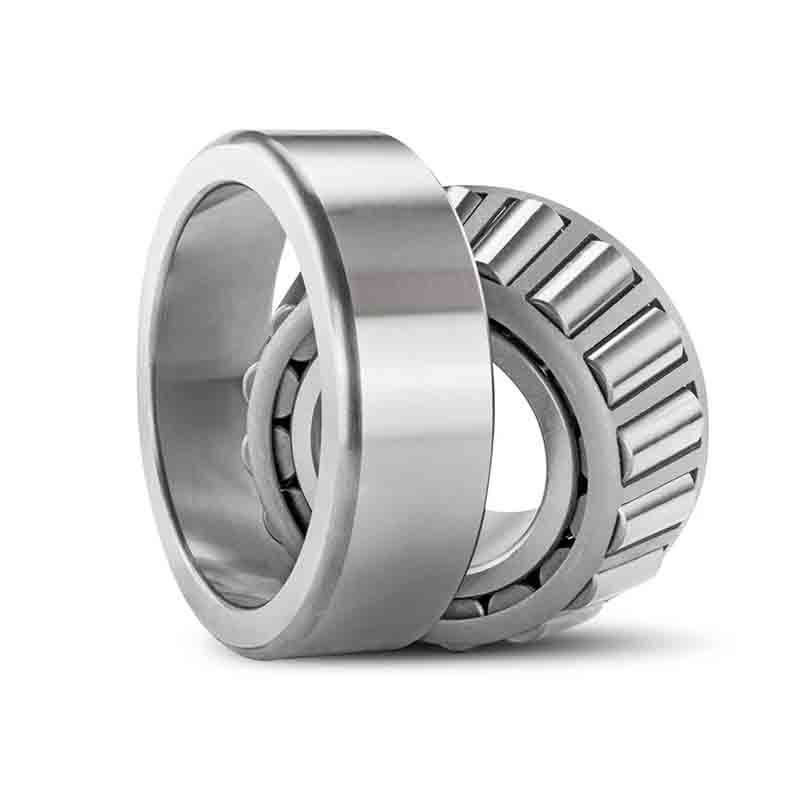

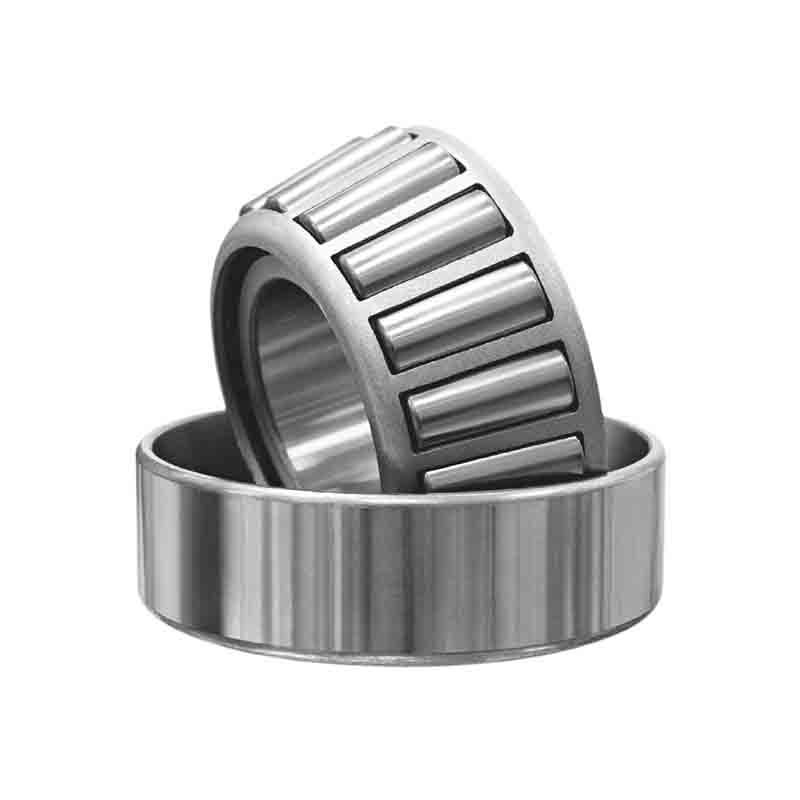

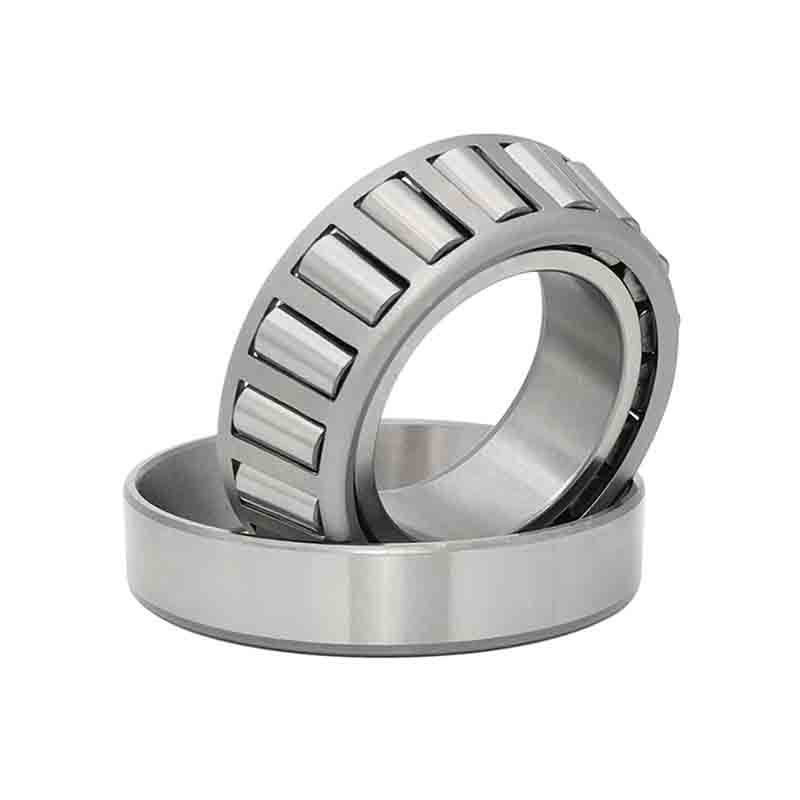

Tapered roller bearings are mainly used to bear radial and axial combined loads mainly based on radial loads. The axial load carrying capacity of the bearing is determined by the contact angle, the larger the contact angle, the greater the axial load carrying capacity. The main uses of this type of bearings: automobile front wheels, rear wheels, transmissions, differentials, pinion shafts, machine tool spindles, construction machinery, large agricultural machinery, railway vehicle gear reduction devices, rolling mill roll neck small reduction devices.

Bearing Number	ID mm	OD mm	B mm
T-63	16.129	41.275	12.7
T-76	19.329	41.275	13.487
T-82	20.879	41.275	13.487
T-83	20.879	42.164	13.487
T-86	20.257	39.688	14.288
T-88	22.479	48.021	15.088
T-92	23.825	44.958	13.487
T-95	24.13	50.8	15.875
T-101	25.654	50.8	15.875
T-105	25.654	50.8	15.875
T-113	28.829	55.562	15.875
T-120	30.416	54.745	11.43
T-126	32.004	55.562	15.875
T-127	32.004	66.675	19.446
T-128	32.004	66.675	18.654
T-138	35.179	66.675	19.446
T-139	35.179	58.738	15.875
T-144	36.754	66.675	19.446
T-149	38.3	65.8	19.45
T-151	38.354	72.619	21.433
T-158	40.234	65.883	19.431
T-163	41.529	72.619	21.433
T-176	44.704	82.956	23.812
T-177	45	73	20
T-182	46.279	82.956	23.812
T-182 S-8	46.1	82.332	25.26
T-18222-8 PMS RBC	46.4	57	32208
T-188	47.879	82.956	23.812
T-189	47.879	82.956	23.02
T-194	49.479	93.269	26.975
T-199	51.054	74.613	15.875
T-201	51.054	93.269	26.187
T-202	51.054	93.269	26.975
T-208	52.629	93.269	26.975
T-208 S	52.67	97.3	28.5
T-194-8	49.5	97.3	28.5
T-251	63.754	111.125	26.988
T-252	63.754	111.125	25.796
T-301	76.454	133.35	33.338
T-302	76.454	133.35	34.925
T-402	102.108	181.524	44.45
T-581	147.638	177.8	17.462
TB-1007	36.8	66	20
BE-89	26.962	48.3	12.065
329910	48.15	79.7	21.8
T-1910	50.3	78.778	16
F-15004	41.8	65.6	16
KAG-10304	47.25	78	23.24
BFSB-353263E/HA3	45	80	16.5
528548 B1	50.1	78	22
500636	45	73	20
