Imperial Single Row-1

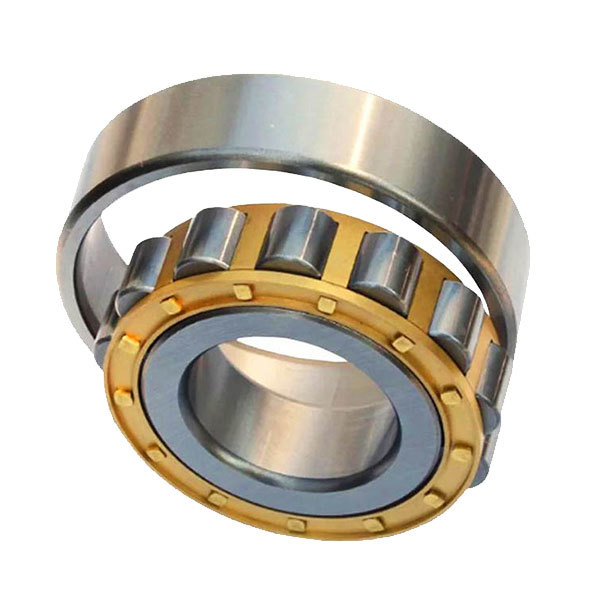

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which ease of assembly and fitting and axial location.

Bearing Number	d mm	D mm	H mm
NJ202	15	35	11
NJ204	20	47	14
NJ205	25	52	15
NJ207	35	72	17
NJ208	40	80	18
NJ209	45	85	19
NJ210	50	90	20
NJ211	55	100	21
NJ212	60	110	22
NJ213	65	120	23
NJ214	70	125	24
NJ215	75	130	25
NJ216	80	140	26
NJ217	85	150	28
NJ218	90	160	30
NJ219	95	170	32
NJ220	100	180	34
NJ221	105	190	36
NJ222	110	200	38
NJ224	120	215	40
NJ226	130	230	40
NJ228	140	250	42
NJ230	150	270	45
NJ232	160	290	48
NJ234	170	310	52
NJ236	180	320	52
NJ238	190	340	55
NJ240	200	360	58
NJ244	220	400	65
NJ304 E	20	52	15
NJ305 E	25	62	17
NJ306 E	30	72	19
NJ307 E	35	80	21
NJ308 E	40	90	23
NJ309 E	45	100	25
NJ310 E	50	110	27
NJ311 E	55	120	29
NJ312 E	60	130	31
NJ313 E	65	140	33
NJ314 E	70	150	35
NJ315 E	75	160	37
NJ316 E	80	170	39
NJ317 E	85	180	41
NJ318 E	90	190	43
NJ319 E	95	200	45
NJ320 E	100	215	47
NJ321 E	105	225	49
NJ322 E	110	240	50
NJ324 E	120	260	55
NJ326 E	130	280	58
NJ328 E	140	300	62
NJ330 E	150	320	65
NJ332 E	160	340	68
NJ334 E	170	360	72
NJ336 E	180	380	75
NJ338 E	190	400	78
NJ340 E	200	420	80
