Imperial Single Row-1

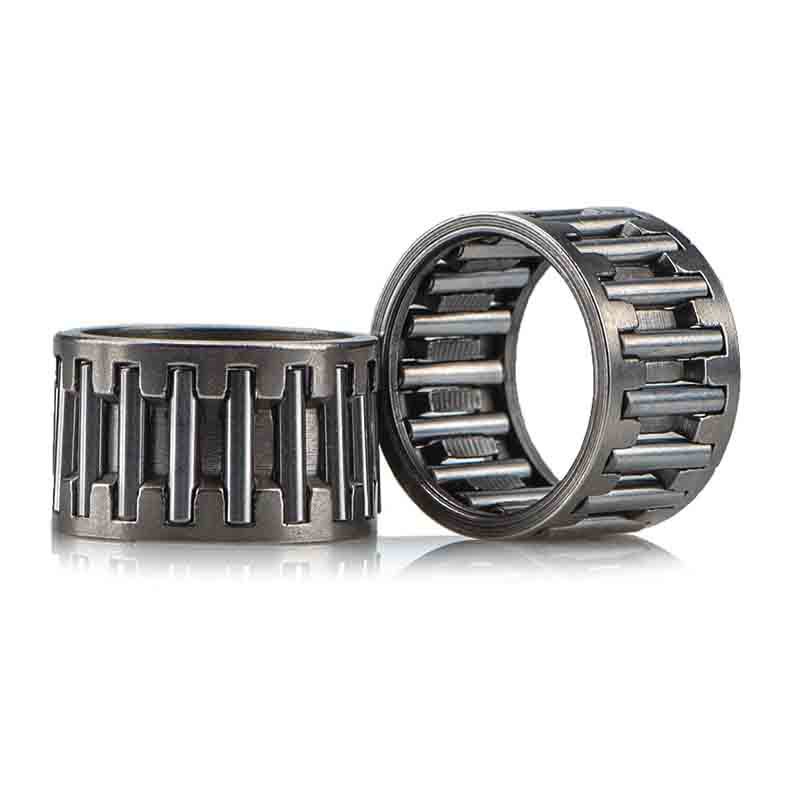

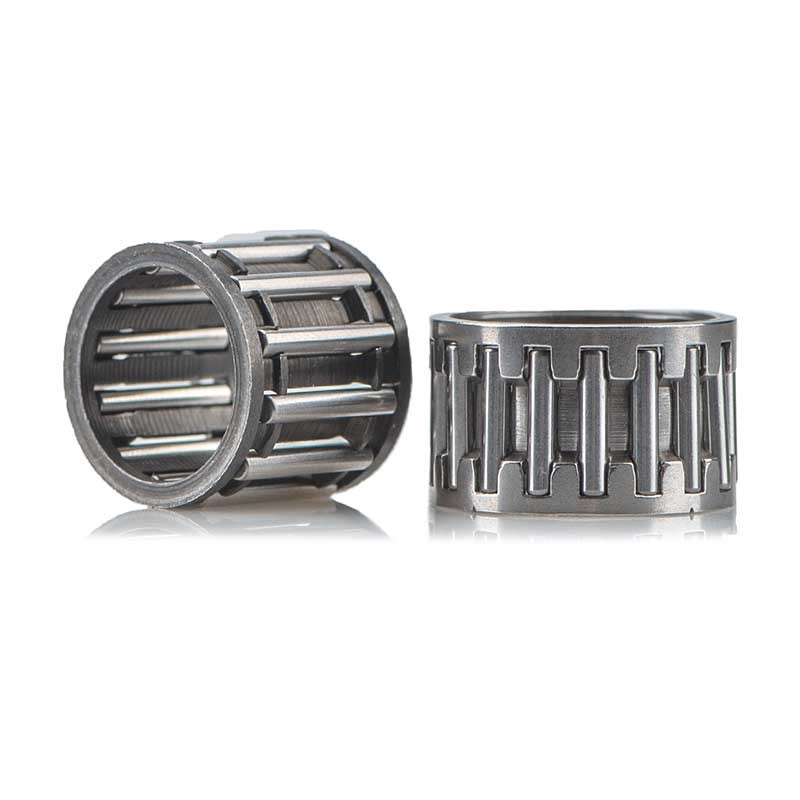

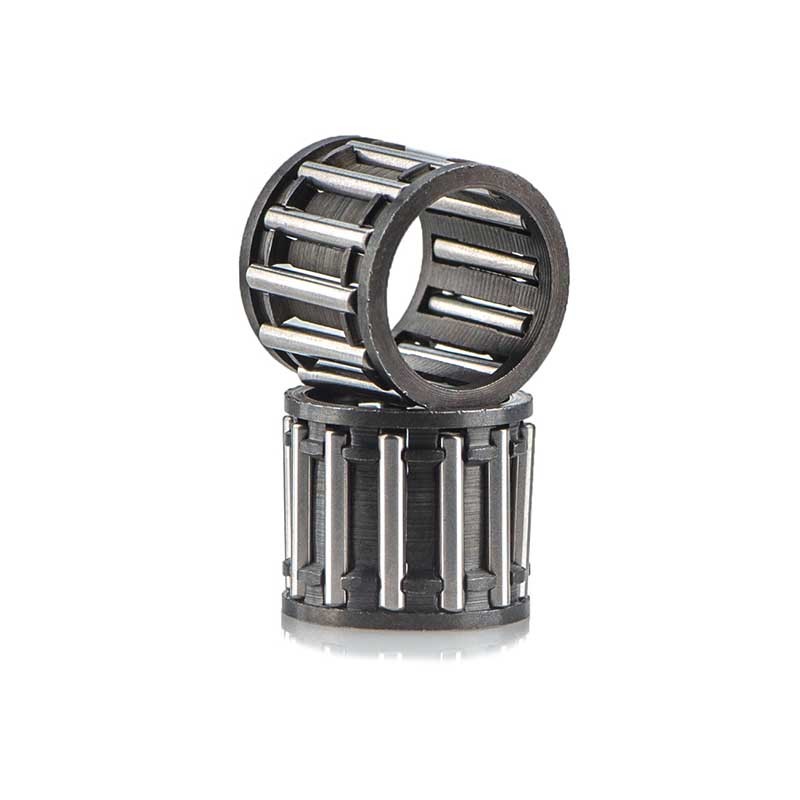

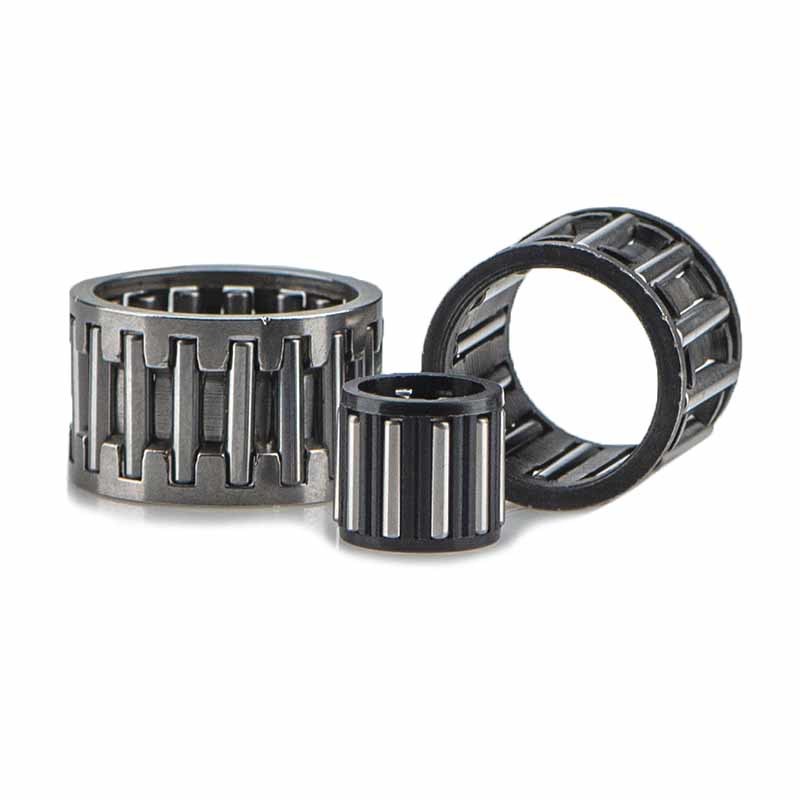

Needle roller and cage assemblies are self-contained, ready-to-install bearings without inner and outer rings. In applications where the shaft and housing bore can be used as raceways, this assembly can be used to create bearing arrangements that require minimal radial space. Since the clearance of the bearing arrangement is only affected by the roller classification and the finish of the shaft and housing, very precise bearing arrangements can be achieved.

This series of bearings has high radial load capacity, high rigidity and high precision.

Bearing Number	Dimensions （mm）
K14x18x8F	14×18×8
K15x19x8	15×19×8
K16x20x8H	16×20×8
K18x22x8	18×22×8
K5x8x8TN	5×8×8
K6x9x8	6×9×8
K6x9x8/SO	6×9×8
K7x10x8	7×10×8
K7x10x8TN	7×10×8
K7x10x8TNA	7×10×8
K8x11x8	8×11×8
K8x11x8TN	8×11×8
K10x13x8	10×13×8
K14x18x10	14×18×10
K14x18x10/YA5	14×18×10
K15x19x10	15×19×10
K16x20x10	16×20×10
K17x21x10	17×21×10
K17x21x10TV	17×21×10
K18x22x10	18×22×10
K20x24x10	20×24×10
K22x26x10	22×26×10
K22x26x10H	22×26×10
K25x29x10	25×29×10
K25x29x10H	25×29×10
K28x33x13	28×33×13
K28x33x13F1	28×33×13
K30x35x13	30×35×13
K30x35x13H	30×35×13
K32x37x13	32×37×13
K32x37x13H	32×37×13
K35x40x13	35×40×13
K35x40x13H	35×40×13
K35x40x13F1	35×40×13
K40x45x13	40×45×13
K42x17x13	42×17×13
K42x47x13H	42×47×13
K45x50x13H	45×50×13
K50x55x13	50×55×13
K95x102x20	95×102×20
K95x102x20F1	95×102×20
K100x107x20	100×107×20
K100x107x20F1/P6	100×107×20
K5x8x10	5×8×10
K5x8x10TN1	5×8×10
K5x8x10/P6SO	5×8×10
K6x9x10TN	6×9×10
K7x10x10TN	7×10×10
K8x11x10	8×11×10
K8x11x10F1/P6	8×11×10
K8x11x10/SO	8×11×10
K9x12x10	9×12×10
K10x13x10	10×13×10
K10x13x10H	10×13×10
K10x13x10/SO	10×13×10
K12x15x10	12×15×10
12x15x10TN	12×15×10
K12x15x10H	12×15×10
K12x15x10F1	12×15×10
K12x15x10TN1	12×15×10
K14x18x13	14×18×13
K14x18x13TN1	14×18×13
K15x19x13	15×19×13
K16x20x13	16×20×13
K17x21x13	17×21×13
K18x22x13	18×22×13
K18x22x13H	18×22×13
K20x24x13	20×24×13
K22x26x13	22×26×13
K22x26x13H	22×26×13
K25x29x13	25×29×13
K25x29x13H	25×29×13
K8x11x13/YA	8×11×13
K8x11x13F	8×11×13
K9x12x13	9×12×13
K9x12x13F	9×12×13
K10x13x13	10×13×13
K10x13x13F	10×13×13
K12x15x13	12×15×13
K12x15x13H	12×15×13
K12x15x13/SO	12×15×13
K12x15x13TN1	12×15×13
K14x18x15	14×18×15
K17x21x15	17×21×15
K28x33x17	28×33×17
K28x33x17H	28×33×17
K30x35x17	30×35×17
K30x35x17H	30×35×17
K32x37x17	32×37×17
K32x37x17H	32×37×17
K35x40x17	35×40×17
K35x40x17H	35×40×17
K38x43x17H	38×43×17
K40x45x17	40×45×17
K40x45x17H	40×45×17
K42x47x17	42×47×17
K42x47x17H	42×47×17
K45x50x17	45×50×17
K45x50x17H	45×50×17
K50x55x17	50×55×17
K50x55x17H	50×55×17
K50x55x17F1	50×55×17
K55x61x20	55×61×20
K60x66x20	60×66×20
K70x76x20F	70×76×20
K75x81x20	75×81×20
K80x86x20	80×86×20
K85x92x30	85×92×30
K100x107x30	100×107×30
K10x14x15	10×14×15
K12x15x15	12×15×15
K12x15x15F	12×15×15
K12x15x15/YA	12×15×15
K14x18x17	14×18×17
K14x18x17H	14×18×17
K15x19x17	15×19×17
K16x20x17	16×20×17
K16x20x17H	16×20×17
K17x21x17	17×21×17
K18x22x17	18×22×17
K18x22x17/YA	18×22×17
K18x22x17H	18×22×17
K20x24x17	20×24×17
K20x24x17TN	20×24×17
K20x24x17H	20×24×17
K22x26x17	22×26×17
K22x26x17TN1	22×26×17
K25x29x17	25×29×17
K25x30x23A	25×30×23
K28x33x20	28×33×20
K30x35x20	30×35×20
K30x35x20H	30×35×20
K32x37x20	32×37×20
K50x55x20	50×55×20
K50x55x20H	50×55×20
K12x15x17	12×15×17
K14x18x20	14×18×20
K16x20x20	16×20×20
K18x22x20	18×22×20
K20x24x20	20×24×20
K35x40x23	35×40×23
K55x61x30	55×61×30
K65x71x30	65×71×30
K70x76x30	70×76×30
K70x76x30F	70×76×30
K75x81x30	75×81×30
K15x19x20	15×19×20
K16x20x23/YA	16×20×23
K28x33x27	28×33×27
K28x3x27H	28×3×27
K30x35x27	30×35×27
K30x35x27H	30×35×27
K30x35x27/YA	30×35×27
K32x37x27	32×37×27
K32x37x27F	32×37×27
K35x40x27	35×40×27
K35x40x27H	35×40×27
K38x43x27	38×43×27
K38x43x27H	38×43×27
K40x45x27	40×45×27
K40x45x27H	40×45×27
K42x47x27	42×47×27
K42x47x27H	42×47×27
K45x50x27	45×50×27
K45x50x27F1	45×50×27
K45x50x27H	45×50×27
K55x61x35/YA	55×61×35
K60x66x30	60×66×30
K8x12x8	8×12×8
K8x12x8TN5	8×12×8
K8x12x8F1/P6	8×12×8
K10x14x8	10×14×8
K12x16x8	12×16×8
K14x19x10	14×19×10
K15x20x10	15×20×10
K16x21x10	16×21×10
K85x93x20	85×93×20
K5x9x10FN1	5×9×10
K5x9x10	5×9×10
K8x12x10	8×12×10
K10x14x10	10×14×10
K10x14x10H	10×14×10
K10x14x10TN1	10×14×10
K12x16x10	12×16×10
K12x16x10H	12×16×10
K14x19x13	14×19×13
K14x19x13H	14×19×13
K15x20x13	15×20×13
K20x25x13	20×25×13
K25x30x13	25×30×13
K30x36x15/YA	30×36×15
K85x93x25	85×93×25
K90x98x25	90×98×25
K5x9x13TN	5×9×13
K6x10x13TN	6×10×13
K10x14x13	10×14×13
K10x14x13/YA	10×14×13
K10x14x13F1	10×14×13
K10x14x13H	10×14×13
K12x16x13	12×16×13
K12x16x13/YA	12×16×13
K12x16x13TN/YA	12×16×13
K12x16x13F	12×16×13
K20x25x15	20×25×15
K25x30x15	25×30×15
K28x34x17	28×34×17
K40x46x17	40×46×17
K42x48x17	42×48×17
K85x93x30	85×93×30
K100x108x30	100×108×30
K7x11x15TN	7×11×15
K12x16x15	12×16×15
K14x19x17	14×19×17
K15x20x17	15×20×17
K17x22x17	17×22×17
K18x23x17	18×23×17
K22x27x17H	22×27×17
K25x30x17	25×30×17
K28x34x20H	28×34×20
32x38x20	32×38×20
K32x38x20F	32×38×20
K38x44x20	38×44×20
K75x82x30	75×82×30
K15x20x20	15×20×20
K17x22x20	17×22×20
K18x23x20	18×23×20
K18x23x20F1	18×23×20
K22x27x20	22×27×20
K25x30x20	25×30×20
K25x30x20H	25×30×20
K32x38x25	32×38×25
K35x41x25	35×41×25
K38x44x25	38×44×25
K42x48x25	42×48×25
K18x23x23	18×23×23
K25x30x23	25×30×23
K38x44x30	38×44×30
K50x55x30	50×55×30
K55x62x40	55×62×40
K55x62x40/YA	55×62×40
K20x25x27	20×25×27
K42x48x35	42×48×35
K45x51x35	45×51×35
K12x7x10	12×7×10
K14x20x10	14×20×10
K14x20x12TN1	14×20×12
K16x22x12	16×22×12
K16x22x12/YA	16×22×12
K16x22x12/C9	16×22×12
K18x24x12	18×24×12
K20x26x12	20×26×12
K28x35x16	28×35×16
K28x35x16TN1	28×35×16
K28x35x16F	28×35×16
K30x37x16	30×37×16
K32x39x16H	32×39×16
K35x42x16	35×42×16
K42x49x16	42×49×16
K50x57x16	50×57×16
K55x63x20	55×63×20
K60x68x20	60×68×20
K60x68x20H	60×68×20
K65x73x20	65×73×20
K70x78x20H	70×78×20
K75x83x20	75×83×20
K12x17x13	12×17×13
K15x21x15	15×21×15
K16x22x15	16×22×15
K17x23x15	17×23×15
K20x26x15	20×26×15
K22x28x15	22×28×15
K25x31x15	25×31×15
K28x35x20	28×35×20
K28x35x20H	28×35×20
K30x37x20	30×37×20
K32x39x20	32×39×20
K40x47x20	40×47×20
K45x52x20	45×52×20
K55x63x25	55×63×25
K60x68x25	60×68×25
K70x78x25	70×78×25
K80x88x25	80×88×25
K12x17x15	12×17×15
K14x20x17	14×20×17
K15x21x17	15×21×17
K16x22x17	16×22×17
K16x22x17TN1	16×22×17
K17x23x17	17×23×17
K18x24x17	18×24×17
K20x26x17	20×26×17
K20x26x17H	20×26×17
K22x28x17	22×28×17
K22x28x17H	22×28×17
K25x31x17	25×31×17
K30x37x25	30×37×25
K55x63x30	55×63×30
K60x68x30	60×68×30
K65x73x30	65×73×30
K65x73x30H	65×73×30
K70x78x30	70×78×30
K70x78x30H	70×78×30
K75x83x30	75×83×30
K80x88x30	80×88×30
K35x42x20	35×42×20
K15x21x20	15×21×20
K16x22x20	16×22×20
K17x23x20	17×23×20
K18x24x20	18×24×20
K20x26x20	20×26×20
K22x28x20	22×28×20
K25x31x20	25×31×20
K30x37x30	30×37×30
K32x39x30	32×39×30
K35x42x30	35×42×30
K80x88x35	80×88×35
K18x24x25	18×24×25
K80x88x40	80×88×40
K85x95x45	85×95×45
K16x22x30	16×22×30
K18x24x30	18×24×30
K22x28x30	22×28×30
K40x47x40	40×47×40
K10x16x12	10×16×12
K12x18x12	12×18×12
K12x18x12H	12×18×12
K25x32x16	25×32×16
K30x38x20	30×38×20
K32x40x20	32×40×20
K38x46x20	38×46×20
K40x48x20	40×48×20
K42x50x20	42×50×20
K42x50x20H	42×50×20
K45x53x20	45×53×20
K45x53x20H	45×53×20
K50x58x20	50×58×20
K50x58x20H	50×58×20
K14x21x20TN	14×21×20
K16x23x20TN	16×23×20
K30x38x25	30×38×25
K32x40x25H	32×40×25
K40x48x25	40×48×25
K45x53x25	45×53×25
K45x53x25H	45×53×25
K50x58x25	50×58×25
K50x58x25H	50×58×25
K70x80x30	70×80×30
K25x32x25	25×32×25
K38x46x30	38×46×30
K42x50x30	42×50×30
K45x53x30	45×53×30
K50x58x30	50×58×30
K20x27x30	20×27×30
K32x40x35	32×40×35
K35x43x35	35×43×35
K35x43x40	35×43×40
K16x24x20F	16×24×20
K20x28x20	20×28×20
K22x30x20	22×30×20
K32x42x25	32×42×25
K20x28x25	20×28×25
K25x33x25	25×33×25
K25x33x25F1D1	25×33×25
K30x40x30	30×40×30
K32x42x30	32×42×30
K50x60x30	50×60×30
K35x45x40	35×45×40
K45x55x40	45×55×40
K80x95x50	80×95×50
K/3x5x7	3×5×7
K/3x5x9	3×5×9
K/4x7x7TN	4×7×7
K/6x10x11	6×10×11
K/7.94x11.94x7.8	7.94×11.94×7.8
K/8x10x12	8×10×12
K/8x11x7.5	8×11×7.5
K/8x12x12	8×12×12
K/9x12x11.5	9×12×11.5
K/9.52x12.7x9.52	9.52×12.7×9.52
K/10x13x9	10×13×9
K/10x13x16	10×13×16
K/10x14x9	10×14×9
K/10x14x12	10×14×12
K/10x14x12.5	10×14×12.5
K/10x16x10	10×16×10
K/11x14x10	11×14×10
K/11x14x10F	11×14×10
K/11x15x12.5	11×15×12.5
K/12x15x9	12×15×9
K/12x15x16.4	12×15×16.4
K/12x15x16.6	12×15×16.6
K/12x15x17.5	12×15×17.5
K/12x16x9	12×16×9
K/13x17x10	13×17×10
K/13x18x15	13×18×15
K/13x18x15F	13×18×15
K/14x17x10	14×17×10
K/14x18x11	14×18×11
K/14x18x14.5	14×18×14.5
K/14x18x14.7	14×18×14.7
K/14x18x16	14×18×16
K/14x18x16.5	14×18×16.5
K/14x19x12	14×19×12
K/14x20x9	14×20×9
K/15x18x14	15×18×14
K/15x18x16F	15×18×16
K/15x18x17F	15×18×17
K/15x19x14	15×19×14
K/15x19x18	15×19×18
K/15x19x19	15×19×19
K/15x19x19.8	15×19×19.8
K/15x21x21	15×21×21
K/15.88x20.64x17.066	15.88×20.64×17.066
K/16x20x14	16×20×14
K/16x20x15.8	16×20×15.8
K/16x20x19.5	16×20×19.5
K/16x20x23.8	16×20×23.8
K/16x20x24	16×20×24
K/16x21x11	16×21×11
K/16x21x18	16×21×18
K/16x21x22	16×21×22
K/16x21x24	16×21×24
K/16x21x10	16×21×10
K/16x22x13	16×22×13
K/16x22x16	16×22×16
K/16x23x14	16×23×14
K/16x23x25.8	16×23×25.8
K/16x24x18.7	16×24×18.7
K/16x25x16	16×25×16
K/16x26x6.5	16×26×6.5
K/17x21x12	17×21×12
K/17x22x18	17×22×18
K/17x23x12.5	17×23×12.5
K/17x23x12.6	17×23×12.6
K/17x23x19.5	17×23×19.5
K/17x24x37	17×24×37
K/17x25x17.5	17×25×17.5
K/17.2x23.2x12.8	17.2×23.2×12.8
K/17.5x22x15	17.5×22×15
K/17.5x22x15.8	17.5×22×15.8
K/17.5x22x16	17.5×22×16
K/17.5x22x17	17.5×22×17
K/17.5x22.1x15.8	17.5×22.1×15.8
K/18x22x14	18×22×14
K/18x22x16	18×22×16
K/18x22x22	18×22×22
K/18x22x24	18×22×24
K/18x24x11.8	18×24×11.8
K/18x24x13	18×24×13
K/18x24x13F	18×24×13
K/18x24x16	18×24×16
K/18x25x17	18×25×17
K/18x25x22	18×25×22
K/18x25x22H	18×25×22
K/18x26x14	18×26×14
