Imperial Single Row-1

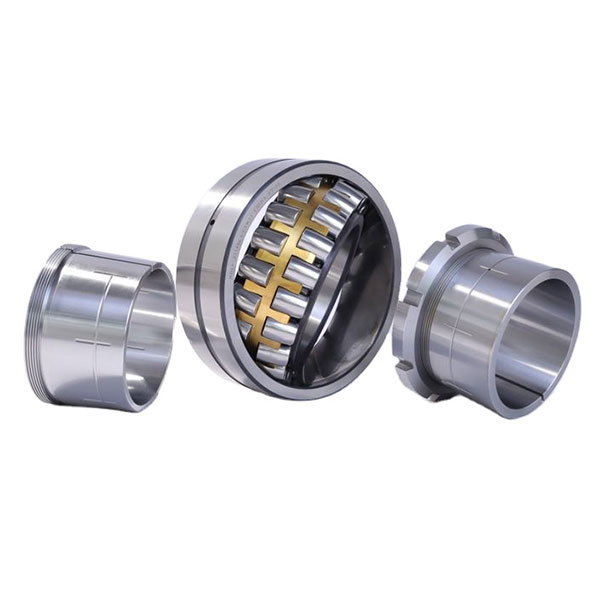

Put in a tight set of Spherical Roller Bearing (20000 CCK/W33 + H type)

CC-Spherical roller bearing of C design but with improved roller guidance and reduced friction;

K-Tapered bore, taper 1:12 on diameter;

W33 - Lubrication groove and lubrication holes in outer ring.

Spherical roller bearing features:

1. High load carrying capacity

Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.

2. Long service life

The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust.

3. Low friction

Self-guiding rollers keep friction and frictional heat at low levels. A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.

Bearing Number	d mm	D mm	B mm
21306CCK+H306	25	72	19
21307CCK+H307	30	80	21
21308CCK+H308	35	90	23
21309CCK+H309	40	100	25
21310CCK+H310	45	110	27
21311CCK+H311	50	120	29
21312CCK+H312	55	130	31
21313CCK+H313	60	140	33
21314CCK+H314	60	150	35
21315CCK+H315	65	160	37
21316CCK+H316	70	170	39
21317CCK+H317	75	180	41
21318CCK+H318	80	190	43
21319CCK+H319	85	200	45
21320CCK+H320	90	215	47
21322CCK+H322	100	240	50
