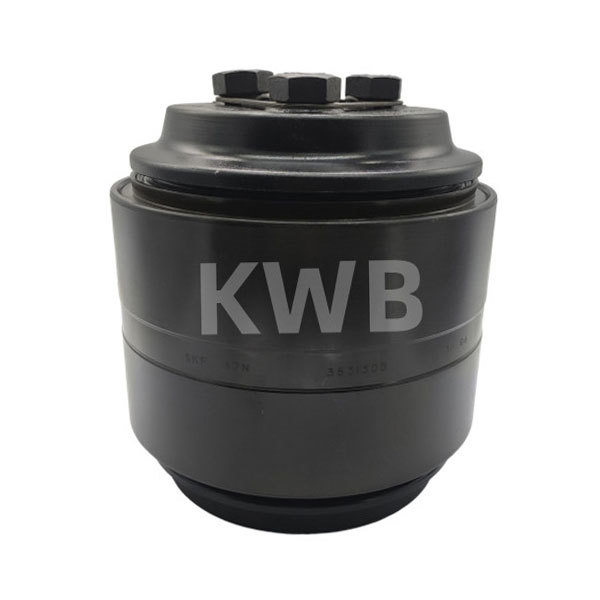

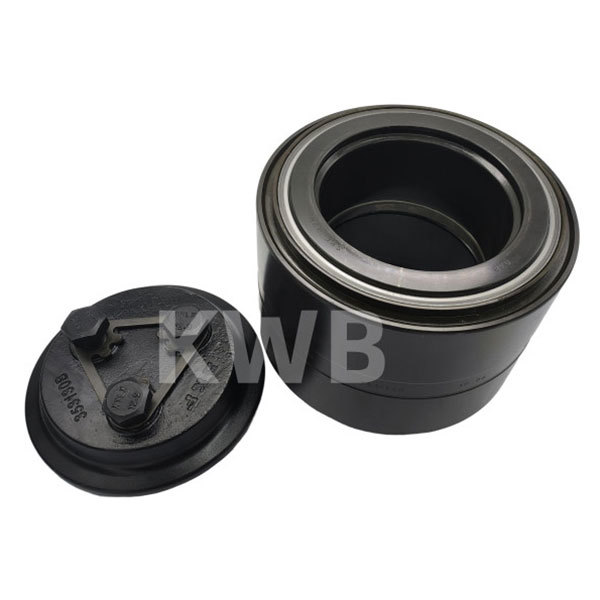

The Taper Roller Bearing Units (TBUs) used on railway rolling stock are critical to the smooth running of any rail system.
SKF has maintained a key focus in the conceptual development of new bearing designs with the ability to achieve the increased load capacities required by the global customer base. The CTBU concept requires less maintenance with an impact on cost reduction, provides higher safety and reliability and is pre-equipped with advanced component technologies that allow railway operators time to react if severe bearing conditions occur while in service.
| Bearing Number | Dimensions(mm) |
| TBU 90 | 90x154x106x115mm |
| TBU 100 | 100x175x113,5x120mm |
| TBU 120 | 120x195x126x131mm |
| TBU 130 x 210 | 130x210x126x132mm |
| TBU 130 x 220 | 130x220x145x150mm |
| TBU 130 x 230 | 130x230x150x160mm |
| TBU 140 | 140x220x133x140mm |
| TBU 150 | 150x250x154,5x160mm |
| TBU 160 x 270 | 160x270x160x150mm |
| TBU 160 x 280 | 160x280x180x180mm |
| TBU 178 x 265 | 178,62x265,137x134x139mm |
| CTBU 100 x 175 | 100X175X130X120mm |
| CTBU 110 x 180 | 110x180x142x142mm |
| CTBU 130 x 210 | 130x210x148x132mm |
| CTBU 130 x 220 | 130x220x145x135mm |
| CTBU 130 x 230 | 130x230x166x150mm |
| CTBU 130 x 230 | 130x230x176x160mm |
| CTBU 130 x 240 | 130x240x172x160mm |
| CTBU 130 x 250 | 130x250x172x160mm |
| CTBU 140 x 220 | 140x220x150x140mm |
| CTBU Class K 6 ½” x 9” | 157x250x181x160mm |
| CTBU Class G 7” x 9” | 178x276x200x186 |
| CTBU Class G 7” x 12” | 178x276x200x186 |
| Class B 4 ¼” x 8” | 101.600x165.100x106.35x114.30mm |
| Class C 5” x 9” | 119.088x195.263x136.525x142.875mm |
| Class D 5 ½” x 10” | 131.775x207.963x146.75x152.40mm |
| Class E 6” x 11” | 144.475x220.663x155.575x163.51mm |
| Class F 6 ½” x 12” | 157.175x252.413x177.80x184.15mm |
| TBU 120x195x131.35 | 1639609 DE |
| TBU130x230x150 | SKF197726 |
| TBU130x230x160 | BT2-8546 |
| TBU150x250x160 | SKF353130-2RS |
| CTBU130x230x150 | BT2-8670-01 |
| CTBU130x230x160 | BT2-8671 |
| CTBU150x250x160 | 353130B |
| CTBU150x250x160 | BT2-8720 BD |
| CTBU130X250X160 | |
| TBU130X250X160 | |
| CTBU130X250/3 | |
| TBU130X250/3 |
