Imperial Single Row-1

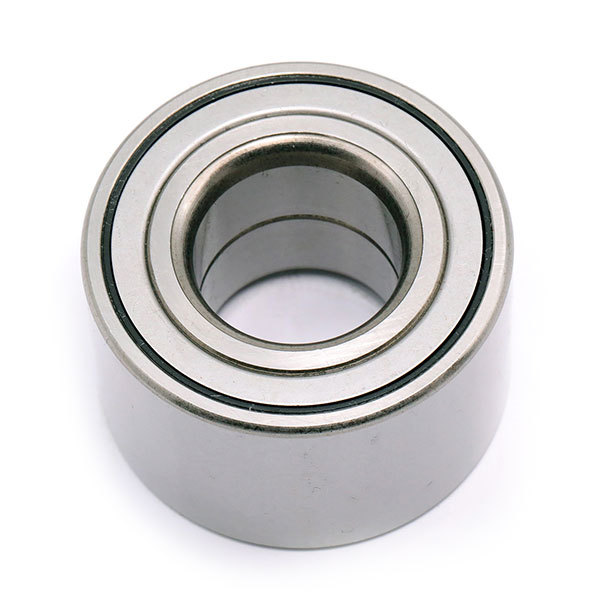

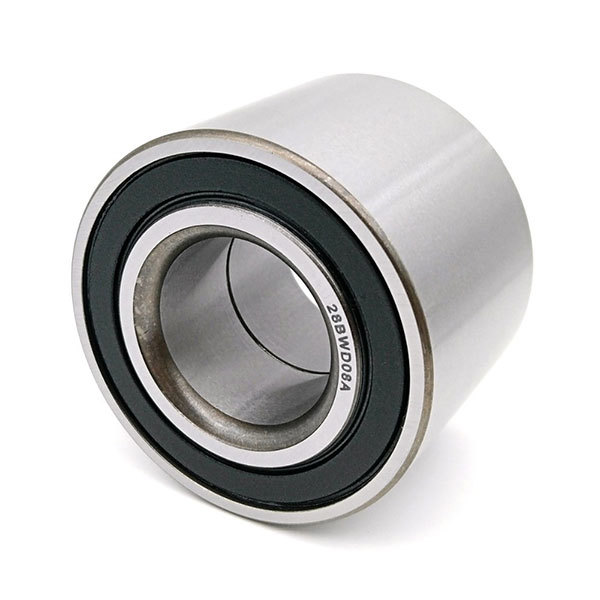

Wheel hub bearing is mainly for bearing and accurately guiding the rotation of the hub. It bears both the axial load and the radial load, and is a very important component.

Wheel bearings are sets of steel balls or tapers held together by a metal ring. They enable the wheels to rotate smoothly with minimal friction.

Bearing Number	JAPAN(KOYO)	GERMANY(FAG)	SWEDEN(SKF)	JAPAN(NSK)	Dimension(mm)
Bearing Number	JAPAN(KOYO)	GERMANY(FAG)	SWEDEN(SKF)	JAPAN(NSK)	d	D	B	C
DAC12280012					12	28	12	12
DAC124000183			C-00187		12	40	18.3	18.3
DAC20420030/29		565592	56592J22		20	42	30	29
DAC205000206		156704 320104			20	50	20.6	20.6
DAC2184800206/18				CBK506	21.8	48	20.6
DAC254650027/24					25.4	65	27
DAC255200206/23				VBF 256705	25	52	20.6
DAC25520037S				FC12025	25	52	37
DAC255200206			617546A		25	52	20.6	20.6
DAC25520032					25	52	32	32
DAC25520037		546467/576467	BT2B445539CC VKBA869		25	52	37	37
DAC25520040					25	52	40	40
DAC25520042	DAC2552W-4CS25			25BWD01	25	52	42	42
DAC25520043					25	52	43	43
DAC25520045/43					25	52	45	43
DAC25550043					25	55	43	43
DAC25550045					25	55	45	45
DAC25560029/206			BA2B633280		25	56	29	20.6
DAC25560032		445979	BAH500		25	56	32	32
DAC25600029/206			BA2B633272		25	60	29	20.6
DAC25600045					25	60	45	45
DAC25620028/17					25	62	28	17
DAC25620048					25	62	48	48
DAC25720043					25	72	43	43
DAC27520045					27	52	45
DAC27520045/43		801437		27KWD02	27	52	45	43
DAC27520050					25	52	50	50
DAC27530043					27	53	43	43
DAC27600050			FW120	27BWD01J	27	60	50	50
DAC28580042	DAC2858W DAC2858RKCS47 DAC28582RK	576447		28BWD03ACA51	28	58	42	42
DAC28580044					25	58	44	44
DAC28590038/28					28	59	38	28
DAC28610042	DAC286142AWCS40		VKBA1346	28BWD01ACA60	28	61	42	42
DAC29530037		801023AB	VKBA3531 BTH1206AA		29	53	37	37
DAC30500020					30	50	20
DAC30520042					30	58	42
DAC30540024					30	54	24	24
DAC30550026				30BWD08	30	55	26	26
DAC30550030/25	ATV-BB-2				30	55	30
DAC30550032	DAC3055WCS31				30	55	32	32
DAC30580042			VKBA1349	30KWD01AG3	30	58	42	42
DAC30600037	DAC3060372RS	545312A 529891AB 522372	BAHB63313CA		30	60	37	37
DAC30600337	DAC3060W	529891AB 545312 581736	BA2B633313CA 418780 405956A 434201B VKBA1307	30BWD07	30	60.3	37	37
DAC30600037/34				BA2B243739CA	30	60	37
DAC30600043/37					30	63	43	37
DAC30620032				30BVV06	30	62	32
DAC30620037					30	62	37
DAC30620038				30BWD10	30	32	38	38
DAC30620044					30	62	44
DAC30630042	DAC3063W-1			30BWD01A	30	63	42
DAC30640037					30	64	37
DAC30640042	DAC3064W2RKBCS8 DAC3064WRKB			30BWD03ACA78	30	64	42	42
DAC30650021		522372		630374/C4	30	65	21
DAC306500264				320406	30	65	26.4	26.4
DAC30670024			361971		30	67	24	24
DAC30680045				30BWD04CA19	30	68	45	45
DAC307200302		3306			30	72	30.2
DAC30720037				BAHB636035	30	72	37
DAC32700038					32	70	38	38
DAC32720045				32BWD05	32	72	45
DAC325800065/57					32	58	65
DAC32720034					32	72	34	34
DAC32720045				32BWD06	32	72	45	45
DAC32720345				32BWD05P5A	32	72.03	45	45
DAC32730054	DAC3273W				32	73	54	54
DAC34620037	DAC34620037	531910 561447	BAHB311316B 309724		34	62	37	37
DAC34640034	DAC3464D		VKBA1382	34BWD03ACA78	34	64	34	34
DAC34640037	DAC3464G 12RSCS42 DAC3464W-2RS	532066DE 540466B 805231	605214 VKBA1306 BA2B309726 309726DA	34BWD04BCA70 34BWD11	34	64	37	37
DAC34660037		559529/580400CA	636114A/479399	34BWD10B	34	66	37	37
DAC34670037					34	67	37	37
DAC34680037	DAC3468DW			34BWD08A	34	68	37	37
DAC34740037					34	74	37	37
DAC34740040					34	74	40	40
DAC356180031					35	61.8	31
DAC356180040	DAC3562W				35	61.8	40	40
DAC35620031	DAC3562AW				35	62	31	31
DAC35620037					35	62	37	37
DAC35620040					35	62	40	40
DAC35640037	DAC3564A-1		BAH0042		35	64	37	37
DAC35650035	DAC3565WCS30	546238A	443952 BT2B445620B VKBA3496 VKBA1413		35	65	35	35
DAC35650037				35BWD19E	35	65	37	37
DAC35660032	DAC3566		445980A/BAH5001A		35	66	32	32
DAC35660033			633676/BAH-0015		35	66	33	33
DAC35660037	DAC35660037	544307CD/581010A	BAHB311309 BAH0023		35	66	37	37
DAC35670042				35BWD24	35	67	42	42
DAC35680037	DAC3568A2RS	567918B 541153A 430042C 549676	BAHB311309 633697 BAHB633295B 633528F(ZZ) VKBA1315	35BWD21(4RS)	35	68	37	37
DAC35680039/36					35	68	39	36
DAC35680042					35	68	42	42
DAC35680045					35	68	45	45
DAC35680048					35	68	48	48
DAC35680233/30	DAC3568W6CS48		VKBA1342	35BWD07A	35	68.02	33	30
DAC35720027					35	72	27	27
DAC35720228		544033	BA2B441832AB		35	72.02	28	28
DAC35720033	DAC357233B	548083	BA2B446762B BA2B445535AE 456162 446762 VKBA882 VKBA1327	XGB 40714	35	72	33	33
DAC35720233/31	DAC357233B-1W	562686	FWB141 VKBA1343	35BWD06ACA111 35BWS08A	35	72.02	33	31
DAC35720433	DAC357545CW2R		BAHB633669/BAH0013		35	72.04	33	33
DAC35720034	DAC357234A	540763/548376A	VKBA857	35BWD01	35	72	34	34
DAC35720434			BAH0013D		35	72.04	34	34
DAC35720042					35	72	42	42
DAC35720045					35	72	45	45
DAC35740030				3507DTN	35	74	30	30
DAC35760054				35BWD10	35	76	54	54
DAC35770042	DAC3577W-2		VKBA3763		35	77	42	42
DAC35800026/21		511004			35	80	26	21
DAC35800047				DAC358047BW2	35	80	47	47
DAC36640042				CRI-0787	36	64	42	42
DAC36680033	DAC3668AWCS36	805172 BAH0087	FW22 VKBA1930	36BWD04	36	68	33	33
DAC36720033/28					36	72	33	28
DAC36720034	559225		VKBA1372/36BWD01C	36BWD01C	36	72	34	34
DAC36720534					36	72.05	34	34
DAC36720042				36BWD03	36	72	42	42
DAC36760029/27		311142/162	440190		36	76	29	27
DAC37680045					37	68	45	45
DAC37720033			BAH0051B		37	72	33	33
DAC37720233					37	72.02	33	33
DAC37720037		562398	633531B BAH0012AM5S VKBA3596 VKBA1308	36BWD04	37	72	37	37
DAC37720237		562398	BA2B633028CB BAH-12		37	72.02	37	37
DAC37720437	DAC37720437	562398A 468683CA	633531B BAH0012		37	72.04	37	37
DAC37720052/45					37	72	52	45
DAC37740037					37	74	37	37
DAC37740045		541521C 816359	309946AC VKBA1301	37BWD01	37	74	45	45
DAC38640036/33					38	64	36	33
DAC38650050					38	65	50	50
