Imperial Single Row-1

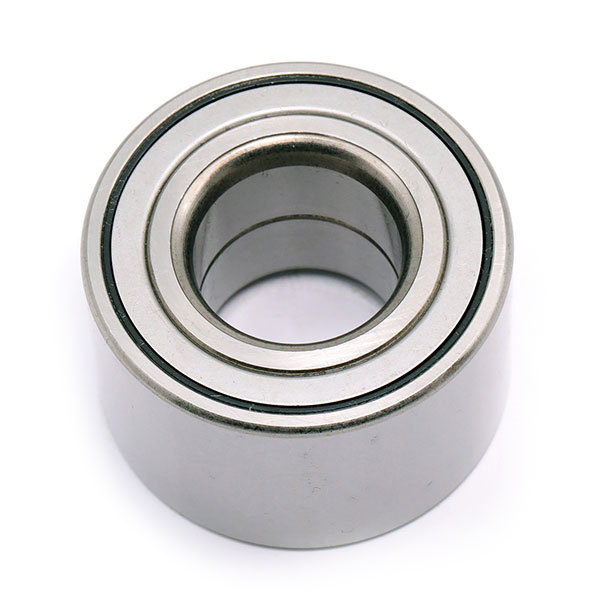

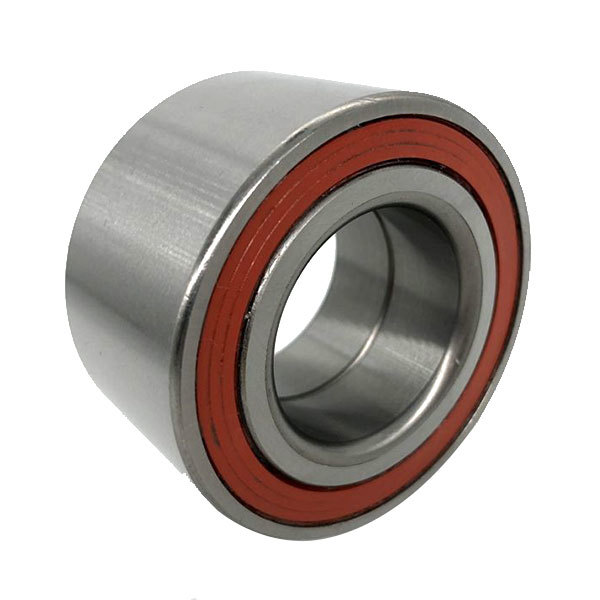

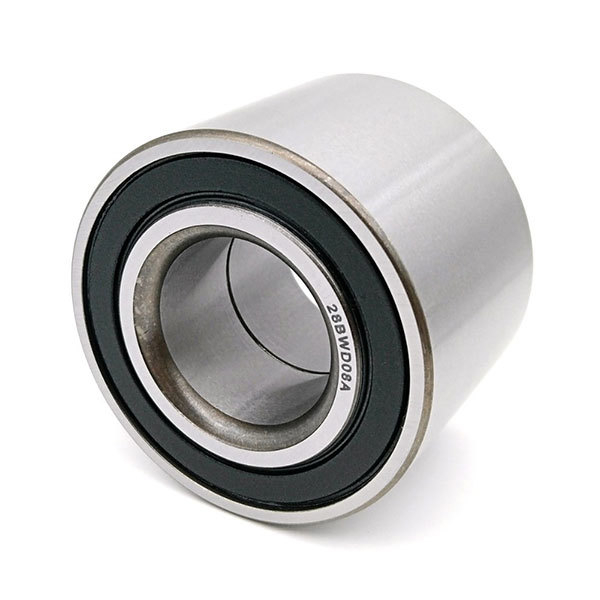

Wheel hub bearing is mainly for bearing and accurately guiding the rotation of the hub. It bears both the axial load and the radial load, and is a very important component.

Wheel bearings are sets of steel balls or tapers held together by a metal ring. They enable the wheels to rotate smoothly with minimal friction.

Bearing Number	JAPAN(KOYO)	GERMANY(FAG)	SWEDEN(SKF)	JAPAN(NSK)	Dimension(mm)
Bearing Number	JAPAN(KOYO)	GERMANY(FAG)	SWEDEN(SKF)	JAPAN(NSK)	d	D	B	C
DAC45840053					45	84	53	53
DAC458500302	DAC2004				45	85	30.2	30.2
DAC45850041		580191	BAHB633960		45	85	41	41
DAC45850048/43					45	85	48	43
DAC45850051					45	85	51	51
DAC45880039					45	88	39	39
DAC45880045					45	88	45	45
DAC47810053			FW154		47	81	53	53
DAC47850045			559431A		47	85	45	45
DAC47880055				47KWD02	47	88	55	55
DAC47880057.5				47KWD02	47	88	57.5	57.5
DAC48860042/40				47KWD02	48	86	42	40
DAC48820037/33					48	82	37	33
DAC48890044/42				48BWD01	48	89	44	42
DAC49840043			25469C		49	84	43	43
DAC49840048	BTHB329129	DU4984-7	BTHB329129DE VKBA1467		49	84	48	48
DAC49840050				49BWD02B-A-LA101	49	84	50	50
DAC49880046		572506E		49BWD01B	49	88	46	46
DAC49900045					49	90	45	45
DAC50900034		528514	633007C		50	90	34	34
DAC50900040					50	90	40	40
DAC54960051	DE5496-5				54	96	51	51
DAC55900060			BTH1011		55	90	60	60
DAC55900052/40					55	90	52	40
DAC55900054/39					55	90	54	39
DAC55900060			BTH1011AB		55	90	60	60
