Imperial Single Row-1

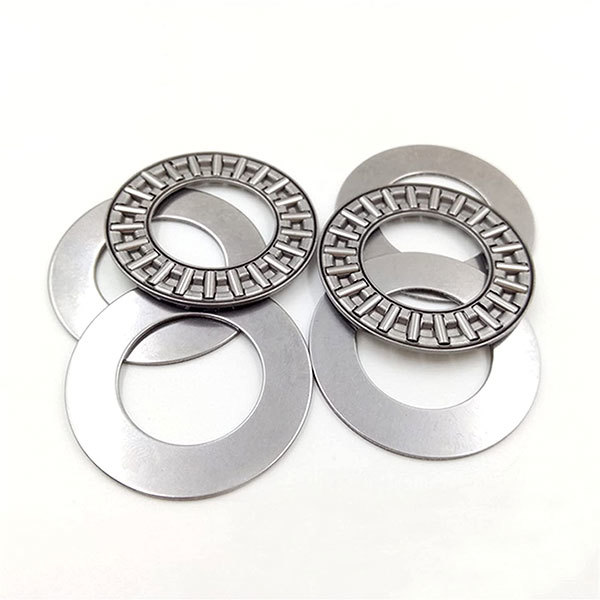

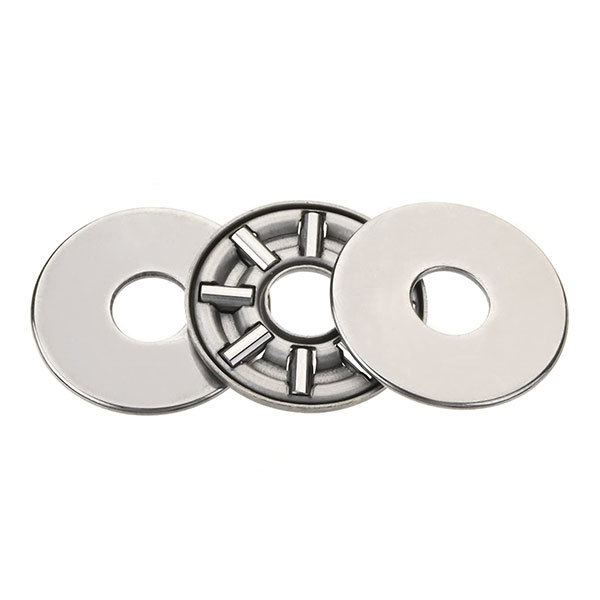

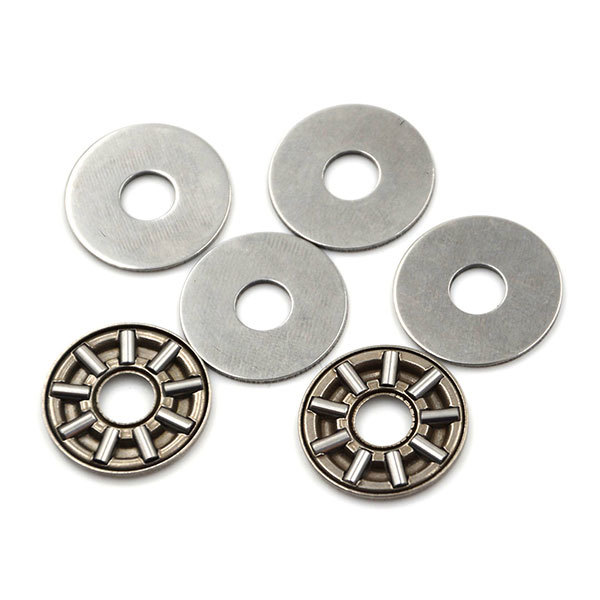

Needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.

Bearing Number	Dimensions （mm）
AXK0619	6×19×2
AXK0821TN	8×21×2
AXK1024	10×24×2
AXK1226	12×26×2
AXK1528	15×28×2
AXK1730	17×30×2
AXK2035	20×35×2
AXK2542	25×42×2
AXK3047	30×47×2
AXK3552	35×52×2
AXK4060	40×60×3
AXK4565	45×65×3
AXK5070	50×70×3
AXK5578	55×78×3
AXK6085	60×85×2
AXK6590	65×90×3
AXK7095	70×95×4
AXK75100	75×100×4
AXK80105	80×105×4
AXK85110	85×110×4
AXK90120	90×120×4
AXK100135	100×135×4
AXK110145	110×145×4
AXK120155	120×155×4
AXK130170	130×170×5
AXK140180	140×180×5
AXK150190	150×190×5
AXK160200	160×200×5
AXK0414TN	4×14×2
AXK0515TN	5×15×2
AXK/6x14x1.5	6×14×1.5
AXK/6x14x2TN	6×14×2
AXK/6x14x2	6×17×2
AXK/6x23x2	6×23×2
AXK/10x20x2	10×20×2
AXK/10x27x2.5	10×27×2.5
AXK/17x35x2	17×35×2
AXK/19.5x32x2	19.5×32×2
AXK/21x32x2	21×32×2
AXK/29x32x2.05	29×32×2.05
AXK/29x50x2	29×50×2
AXK/29x51x2	29×51×2
AXK/29.1x44x2	29.1×44×2
AXK/30x42x2.5	30×42×2.5
AXK/33x49x2	33×49×2
AXK/40x60x2	40×60×2
NTA-411	6.35×17.45×1.984
NTA-512	7.92×19.5×1.984
NTA-815	12.7×23.8×1.984
NTA-1423	22.22×36.5×1.984
NTA-1828	28.58×44.45×1.984
NTA-2031	31.75×49.2×1.984
NTA-2031K1	31.75×49.2×2
NTA-2435	38.1×55.55×1.984
NTA-3244	50.8×69.85×1.984
NTA-3648	57.15×86.2×1.984
NTA-4052	63.5×82.55×1.984
AXW10	10×27×3.2
AXW12	12×29×3.2
AXW15	15×31×3.2
AXW17	17×33×3.2
AXW20	20×38×3.2
AXW25	25×45×3.2
AXW30	30×50×3.2
AXW35	35×55×3.2
AXW40	40×63×4.2
AXW45	45×68×4.2
AXW50	50×73×4.2
