Liaocheng Shuanglong Bearing Manufacture Co.,Ltd
Imperial Single Row-1
SX crossed roller bearing application:
It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Such as joint rotation parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, and IC manufacturing equipment.

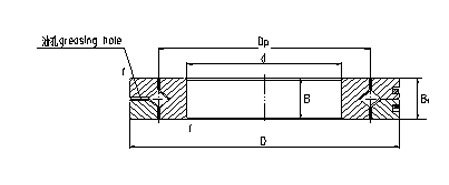

| Bearing Number | Dimensions | |||
| d mm | Dmm | Roller pitch circle diameter dp (mm) | B mm | |
| SX011814 | 70 | 90 | 80 | 10 |
| SX011818 | 90 | 115 | 102 | 13 |
| SX011820 | 100 | 125 | 112 | 13 |
| SX011824 | 120 | 150 | 135 | 16 |
| SX011828 | 140 | 175 | 157 | 18 |
| SX011832 | 160 | 200 | 180 | 20 |
| SX011836 | 180 | 225 | 202 | 22 |
| SX011840 | 200 | 250 | 225 | 24 |
| SX011848 | 240 | 300 | 270 | 28 |
| SX011860 | 300 | 380 | 340 | 38 |
| SX011868 | 340 | 420 | 380 | 38 |
| SX011880 | 400 | 500 | 450 | 46 |
| SX0118/500 | 500 | 620 | 560 | 56 |
