Imperial Single Row-1

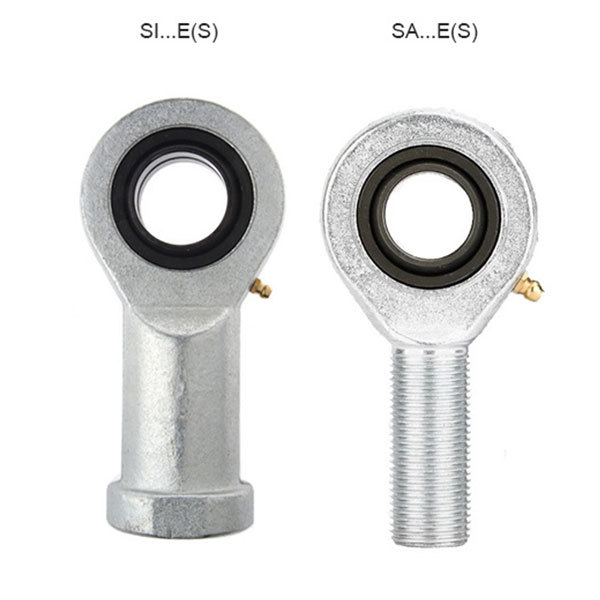

Rod end, requires maintenance, female thread

SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. Suitable for heavy static, alternating or impact loads,Simple and ready-to-mount.

Bearing Number		Dimensions(mm)


SI-E/ES	SA-E/ES	d	D	B	d3	h	h1	α
SI-E/ES	SA-E/ES	d	D	B	d3	h	h1	≈
SI5E	SA5E	5	14	6	M5	36	30	13°
SI6E	SA6E	6	14	6	M6	36	30	13°
SI8E	SA8E	8	16	8	M8	42	36	15°
SI10E	SA10E	10	19	9	M10	48	43	12°
SI12E	SA12E	12	22	10	M12	54	50	10°
SI15ES	SA15ES	15	26	12	M14	63	61	8°
SI17ES	SA17ES	17	30	14	M16	69	67	10°
SI20ES	SA20ES	20	35	16	M20×1.5	78	77	9°
SI25ES	SA25ES	25	42	20	M24×2.0	94	94	7°
SI30ES	SA30ES	30	47	22	M30×2.0	110	110	6°
SI35ES	SA35ES	35	55	25	M36×3.0	140	125	6°
SI40ES	SA40ES	40	62	28	M39×3.0	150	142	7°
SI45ES	SA45ES	45	68	32	M42×3.0	163	145	7°
SI50ES	SA50ES	50	75	35	M45×3.0	185	160	6°
SI60ES	SA60ES	60	90	44	M52×3.0	210	175	6°
SI70ES	SA70ES	70	105	49	M56×4.0	235	200	6°
SI80ES	SA80ES	80	120	55	M64×4.0	270	230	6°
